Maintenance Instructions ADJUSTMENTS

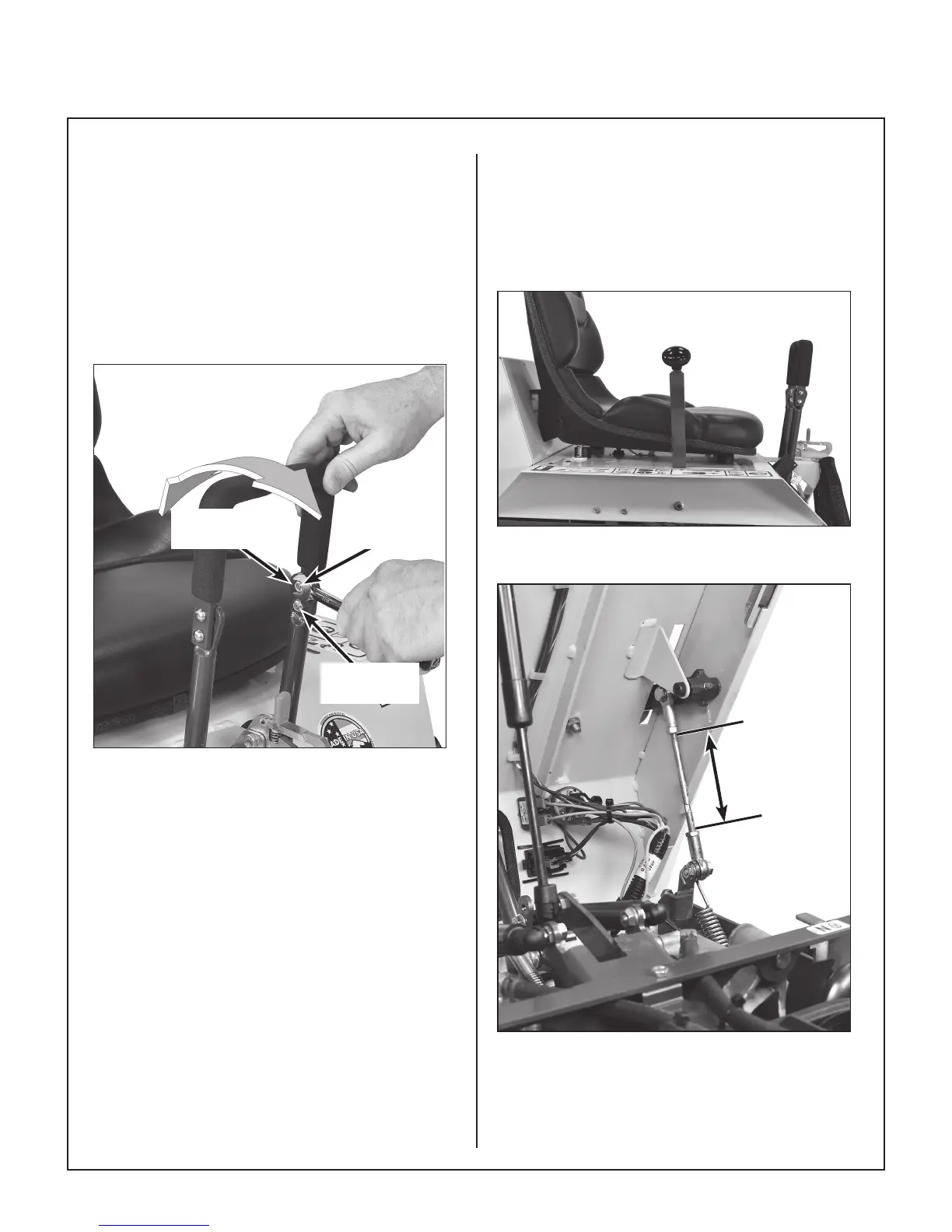

Step 2 - Steering Handles Adjustment
1. An adjustment range of approximately 3 in.
(76.2 mm) is available on the steering handles -
the han dles can be adjusted forward or aft
depending on the arm length of the operator.
The handles can be adjusted by loosening the
locknut at the pivot point and the locknut holding
the handle in position in the adjustment slide.
Adjust the han dles into the most comfortable
position and tighten both locknuts.
Adjustment
Slide
Locknut
(Position)
Locknut
(Pivot Point)
Steering Handles Adjustment
Step 3 - Neutral Position Adjustment
1. With the Forward Speed Control (FSC) in NEU-
TRAL-PARK, the lever should be straight up.
Adjust by loosening the jam nuts on the FSC
Rod and turn the rod to attain the straight up
position. Tighten the jam nuts.
Correct FSC Lever NEUTRAL-PARK Position
Adjust Length of
Rod to Position
FSC Lever
FSC Lever Position Adjustment
