Maintenance Instructions CHECKING/SERVICING
Tire Pressure
Inflate tires to pressures shown below:
Deck Caster Wheel = 20 PSI (137 kPa)
Drive = 15 PSI (103 kPa)
Tailwheel = 20 PSI (137 kPa)
Wheel Nut Torque
Check the eight (8) Drive Tire mounting nuts. Every
100 hours they should each be torqued to
75 to 85 lb·ft (102 to 115 N·m).
Sharpen Mower Blades
Check mower blade(s) for straightness, sharp-
ness, condition of the cutting edge, and balance
every 10 hours of operation (or more often when
mowing abrasive type grass or operating on sandy
soils). Replace blades if worn, bent, cracked, or
otherwise damaged (refer to REPLACING/RE-
PAIRING the Mower Blades in this section). Use
the following procedure to check and sharpen
blades:
NOTE: Keep blades sharp - cutting with dull
blades not only yields a poor mowing job but slows
the cutting speed of the mower and causes extra
wear on the engine and blade drive by pulling hard.
1. Stop the engine, remove ignition key, and dis-
connect the spark plug wires before raising the
mower deck to service blades.
2. Raise the deck and secure it in the TILT-UP
po sition (refer to Deck Secured in TILT-UP Po-
sition photo in CLEANING of Grass Buildup
in Mower Deck Housing in this section).
DANGER
NEVER operate cutter blades with the
deck in the raised position.
NOTE: PTO shaft must be disconnected be-
fore checking blades for straightness.
3. Check the blades for straightness by marking
the blade tip position inside the deck housing,
and then rotating the opposite end of the blade
to the same position and comparing. If the dif-
ference in blade tip track is more than 1/8 in.
(3 mm), the blade is bent and should be re-
placed.
WARNING
DO NOT try to straighten a blade that is
bent. NEVER weld a broken or cracked
blade. ALWAYS replace with a new blade
to assure safety.
4. If the blade cutting edge is dull or nicked, it
should be sharpened. Remove blades for
sharpening by grasping the end of the blade us-
ing a rag or a thick, padded glove, while loosen-
ing and removing the nut, lock washer, and flat
washer that mounts the blade.
5. Grind cutting edge at the same bevel as the
original. Sharpen only the top of the cutting
edge to maintain sharpness.
NOTE: Blades can be sharpened with an elec-
tric blade sharpener, conventional electric grind-
er, or a hand file.
CAUTION
ALWAYS wear eye protection and gloves
when sharpening a blade.

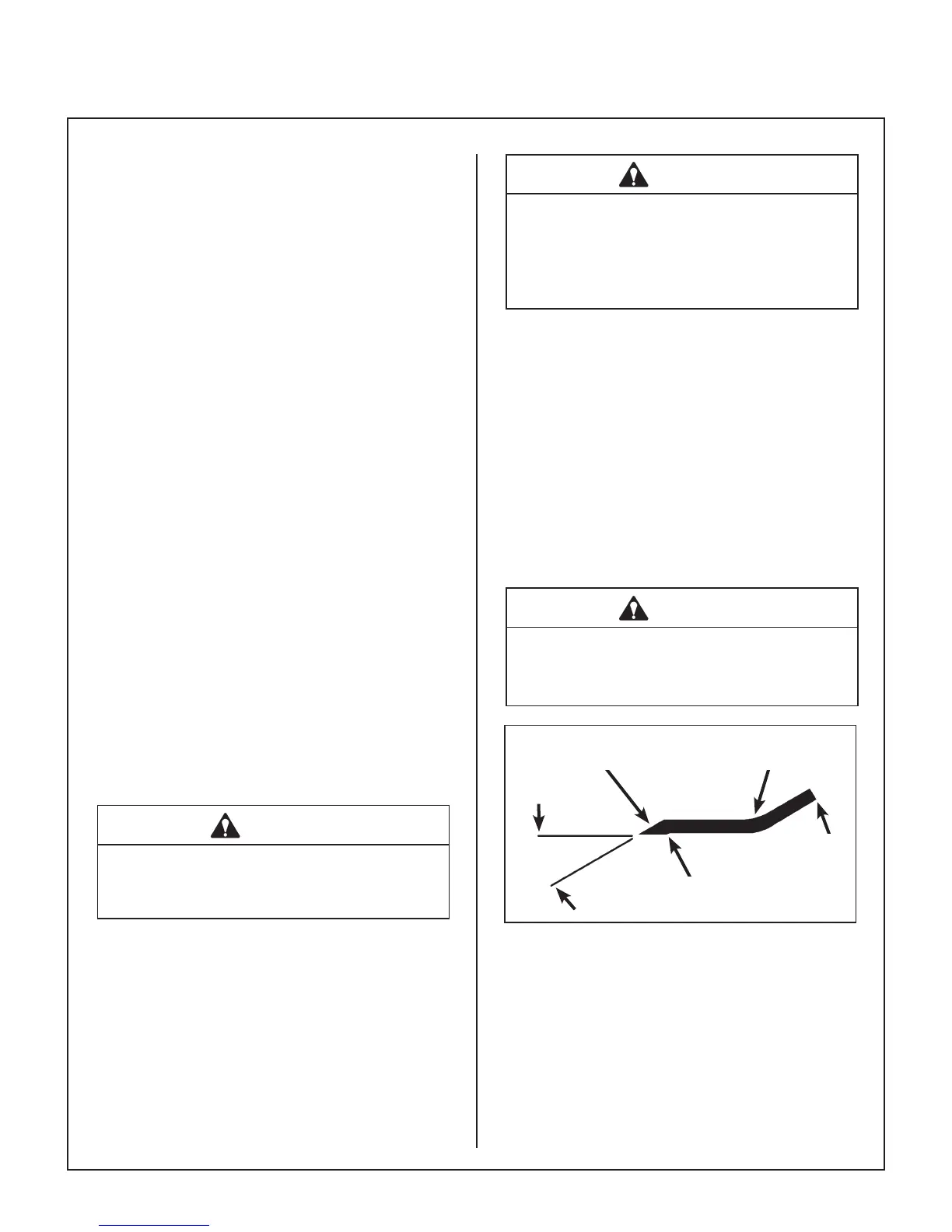

Wing
Tip
Do Not Grind or
Sharpen on Underside
Intersection
Wear Area
Sharpen at
Original 30° Angle
30°
Mower Blade Prole for Sharpening
6. Check blade balance by positioning the blade
horizontally on a blade balancer or use a nail
or shaft through the center hole. If either end of
the blade rotates downward, grind (remove)
metal on that end until the blade will balance.
The blade is properly balanced when neither
end drops. Balance of a blade is generally
maintained by removing an equal amount of
material from each end of the blade when
sharpening.
To Next Page
