Walker B18 User Manual

57
Maintenance Instructions REPLACING/REPAIRING
Ground Drive Belt
1. To remove the ground drive belt:
a. Depress the spring-loaded idler to relax
belt.
b. Slide belt off pulleys, then release the idler.

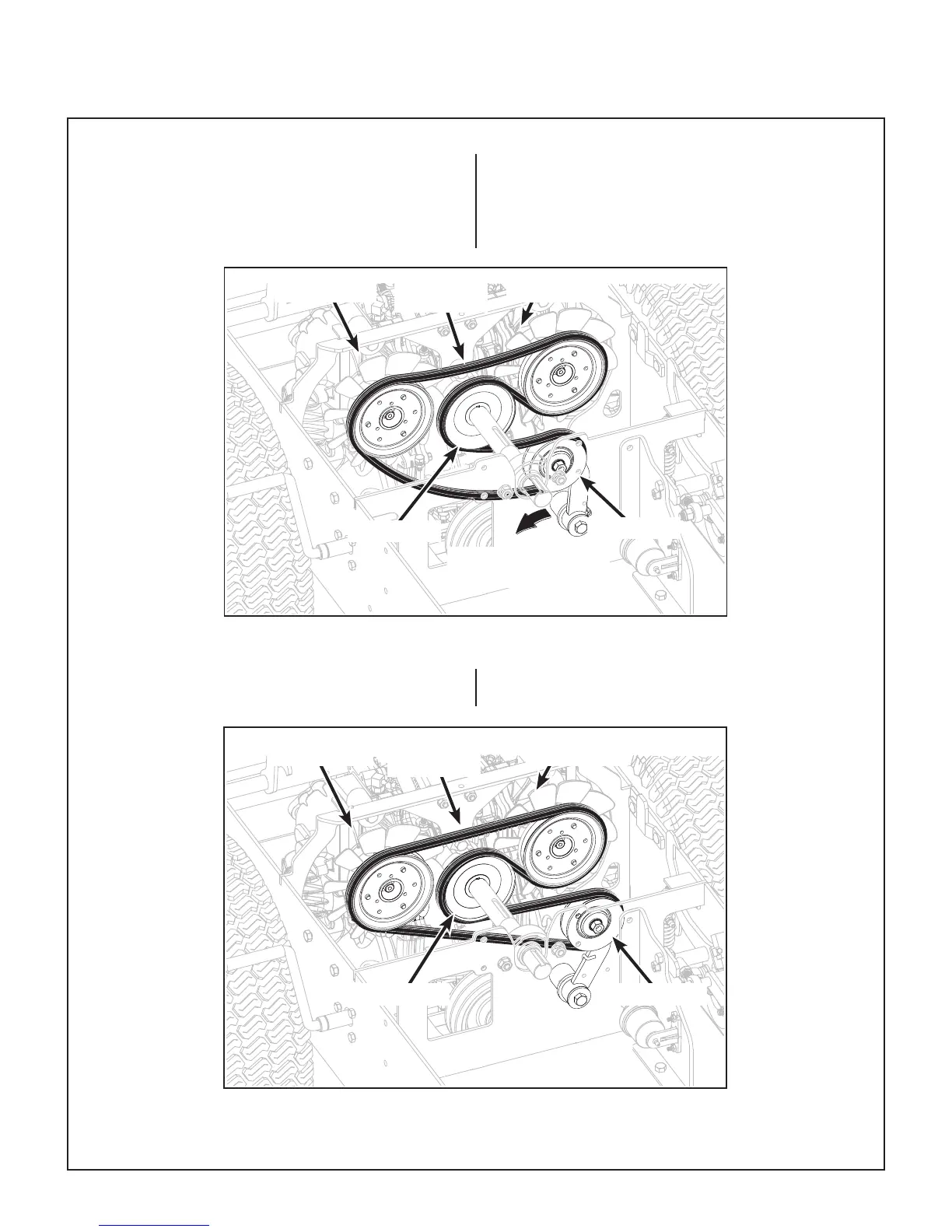

Ground Drive Belt Assembly (Disengaged)
2. Reverse the procedure to install the ground
drive belt.
Ground Drive Belt Assembly (Engaged)
Depress Idler Pulley to
Relax Belt
LH Transaxle RH Transaxle
Drive Pulley
Idler Pulley
Ground Drive
Belt
LH Transaxle
Drive Pulley Idler Pulley
RH Transaxle
Ground Drive
Belt
