Walker B18 - Safety, Control, and Instruction Decals Continued; Component-Specific Decals

Safety Instructions
16

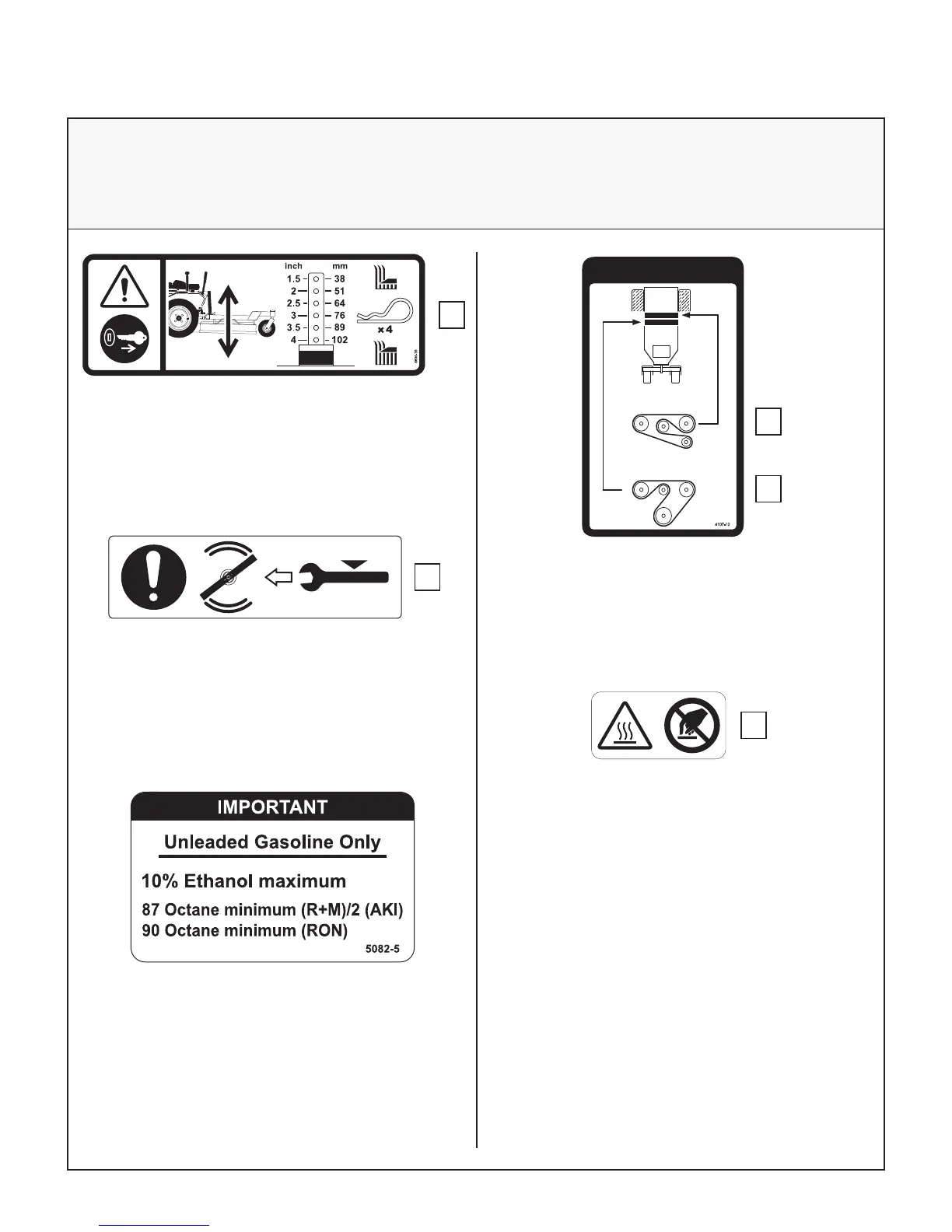

SAFETY, CONTROL, AND INSTRUCTION DECALS
Safety, Control, and Instruction Decals are installed on the machine;
if any are missing, illegible, or damaged, a replacement should be ordered and installed before
putting the machine into operation. The Decal Part Number is listed below and in the Parts Manual.
Location: Deck Gearbox Cover
Part Number: 8600-39
Location: Gearbox Cover
(Gear Drive Decks Only)
Part Number: 8600-9
Location: Rear Body
Part Number: 4107-12
1. Warning - stop engine and remove ignition key
before adjusting deck cutting height.
1. Tighten blade nuts on gear driven decks to
60 lb
·ft (81 N·m).
1. Ground drive belt routing
2. Engine/PTO clutch belt routing
Location: Rear Body Near Mufer
Part Number: 8600-5
8600-5
1.
1. Warning – hot surface, do not touch.
1.
8600-9
60 lb·ft (81 N·m)
Location: Chassis, Left Side
Part Number: 5082-5
1.
GROUND DRIVE BELT
WALKER P/N 4230-2
ENGINE/PTO BELT
WALKER P/N 4230-1
BELT ROUTING
4107-12
1.
2.
