Walker B18 - Operators View of Controls

Operating Instructions
28

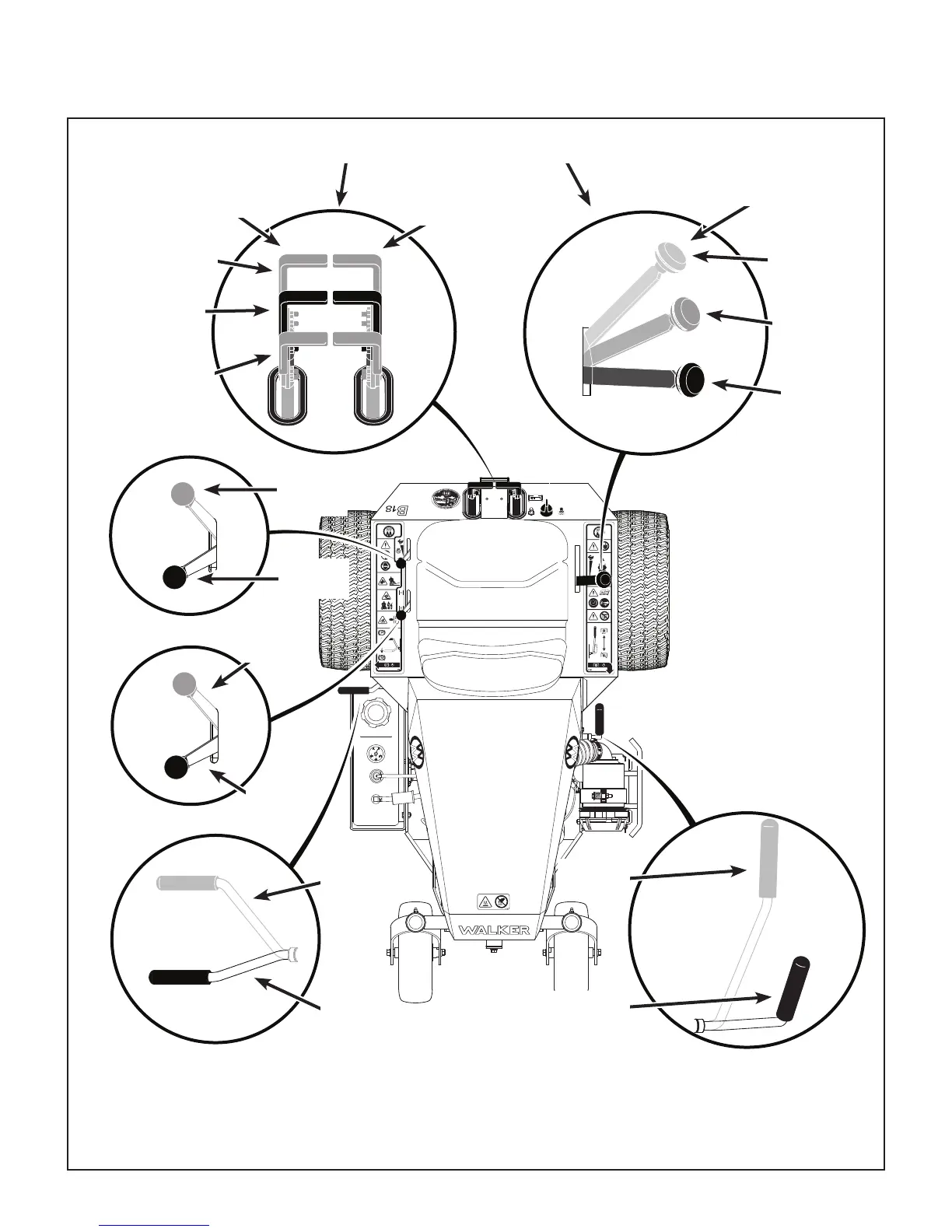

Operating Controls (Top View from Drivers Point of View)
1. 2.
<15°
BLADE CLUTCH
(PTO)
PARKING
BRAKE
THROTTLE
CHOKE
The Forward Speed Control also Establishes the Neutral-Park Position of the Steering Levers
RIGHT WHEEL
STEERING LEVER
Forward Position
(No Control Change)
Neutral-Park
Position
LEFT WHEEL
STEERING LEVER
Reverse Drive
Wheel Motion
Position
Fast
Throttle
Position
Idle
Position
ON
Position
OFF
Position
Engaged
Position
Disengaged
Position
Engaged
Position
Disengaged
Position
Full Forward
Ground Speed
Position
FORWARD SPEED
CONTROL LEVER (FSC)
Neutral-Park
Position
Intermediate
Ground Speed
Position
