Maintenance Instructions LUBRICATION
42
Ident Lubrication No.
No. Location Type Places
Ident Lubrication No.
No. Location Type Places
1 Deck Caster Wheel Fork Pivot Grease 2
2 Deck Caster Wheel Bearing Grease 2
3 Blade Spindle Grease
Δ
2
4 Pivot Assembly, Tilt-Up Deck Grease 4
5 Deck Support Arm Socket Grease 2
6 Universal Joint Shaft Assembly Grease** 1
7 Tee Gearbox, Deck Oil* 1
8 Blade Drive Gearbox Oil* 2
9 Steering Lever Pivot Grease 2
10 Deck-to-PTO Coupling Grease 1
(Grease Spline Slide Area)
11 Universal Joint Tube Assembly Grease** 1
12 Deck Support Arm Pivot Grease 2
13 FSC Lever Pivot Grease 1
14 Body Latch Pivot Oil 1
15 Clutch Actuator Spring Assembly Grease 1
16 Hydro Idler Pivot Grease 1
17 PTO Clutch Lever Pivot Grease 1
18 Transaxle Oil Reservoir Oil/20W-50 1
19 Tail Wheel Caster Fork Pivot Grease 2
20 Rear Axle Pivot Grease 1
21 Rear Wheel Bearing Grease 2
22 Throttle Control Cable Ends Oil 2
23 Choke Control Cable Ends Oil 2
24 Engine / Oil Filler Oil*** 1
25 Brake Band Pivot Pins Oil 2
26 PTO Belt Tightener Pivot Grease 1
27 Parking Brake Clevis Oil 2
28 Parking Brake Lever Grease 1
29 Choke Control Pivot Oil 1
30 Throttle Control Pivot Oil 1
* Gearboxes are permanently lubricated and sealed requiring
no scheduled lubrication. Oil level should be checked only
when an oil leak is noted.
** Grease every 25 hours.
*** Refer to Engine Oil located on page 39.
Δ
Belt Driven Decks Only
NOTE: DS42 Belt Drive and DS42 Tilt-Up Decks and shown for
reference. For other Deck Lubrication Points, refer to
Deck and Carrier Frame Illustrated Parts
Manual.
3
1
2
1
2
3
4 5 5 46

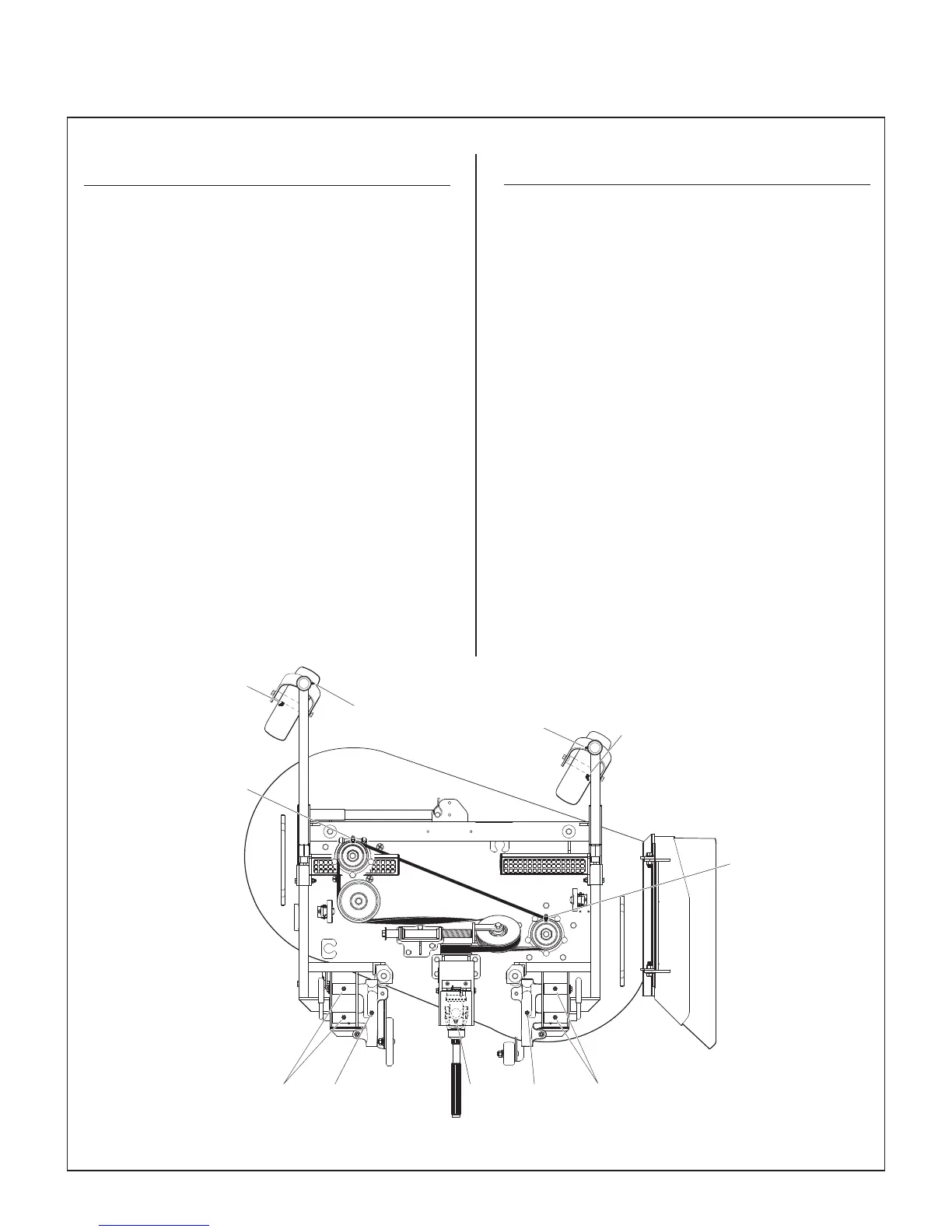

Lubrication Points for Optional Belt Driven Decks (DS42 Belt Drive Shown)
