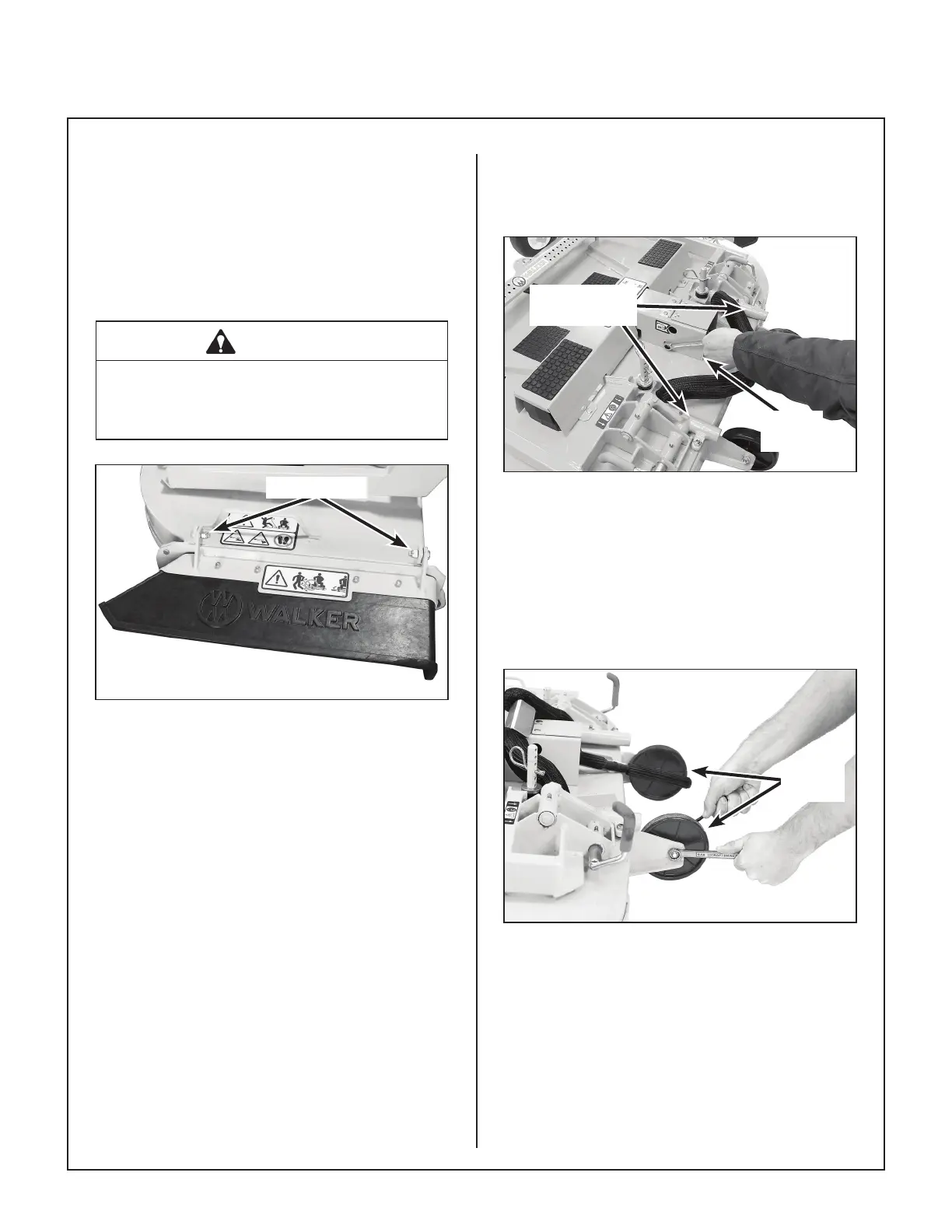

Deck Discharge Deector Shield Installation
(Side Discharge Models Only)
Attach the side discharge deector shield using
two (2) 3/8-16 x 1-1/4 in. bolts, 3/8-16 ESNA nuts,
and 3/8 in. wave spring washers. The wave wash-
ers t between the two hinging surfaces. Tighten
the nuts until the shield moves freely but is not
loose.
WARNING
DO NOT operate the machine without the
grass deector shield attached and in the
lowest possible position.
Attach Shield
Deck Discharge Shield Installation
PTO Shaft Guard Installation
Position the shaft guard as shown and mount with
two (2) 1/4-20 x 1/2 in. bolts.
Attach
Guard
Carrier Frame
Tube Sockets
PTO Shaft Guard Installation
Tilt-Up Roller Wheel Installation
Mount the two (2) tilt-up roller wheels on the brack-
ets on the rear skirt of the deck housing using the
P/N 8490 axle bolt, 3/8 in. plain washer, 3/8 in.
wave spring washer (between bracket and wheel)
and 3/8-16 Whiz locknut. Tighten the axle bolt until
the wheel rolls freely, but is not loose.
Roller
Wheels
Roller Wheel Installation
