Component Identication
8

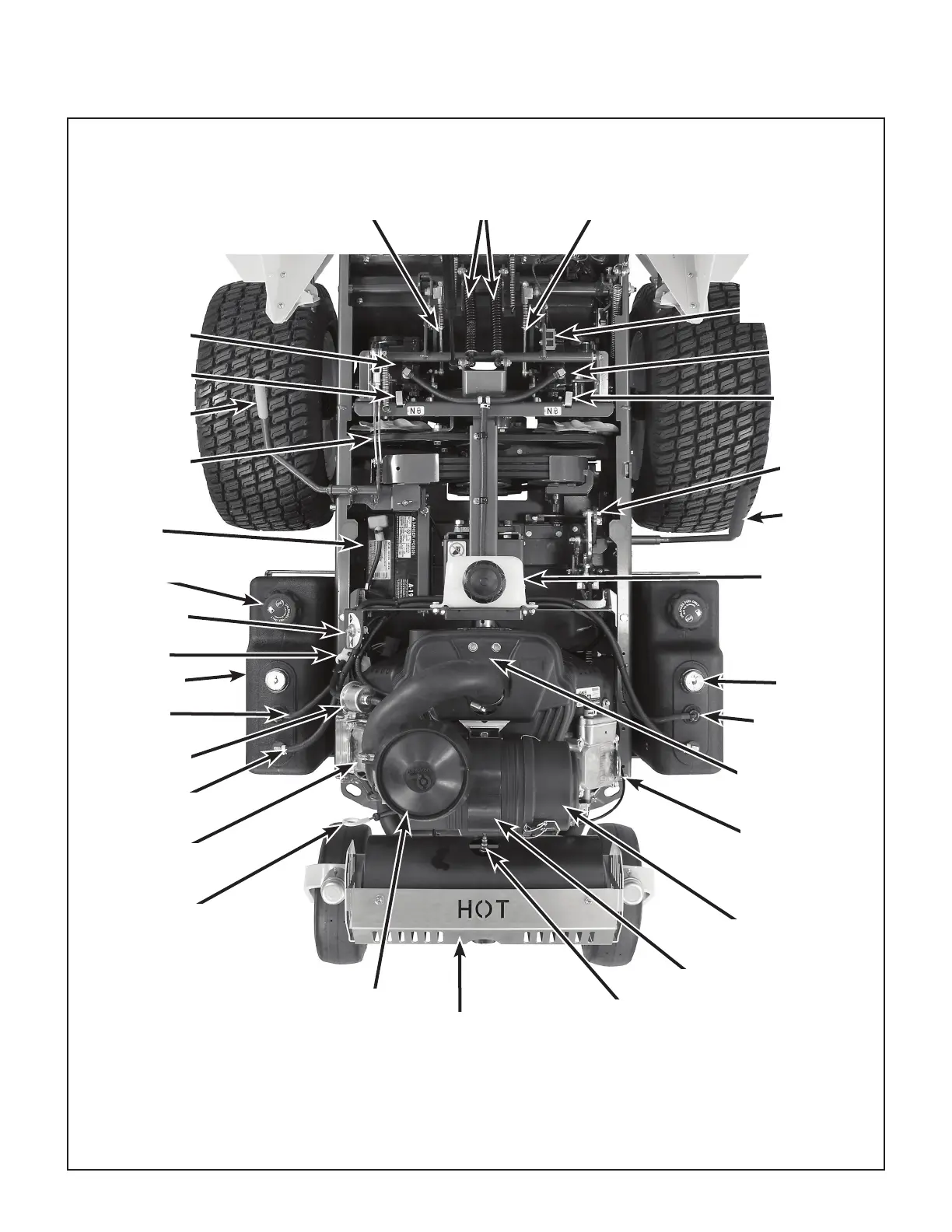

Top View (Body Raised)
Mu󰀪er Heat
Shield
Air Intake
Cover
RH Transmission
Control Rod
Steering Lever
Spring / Dampeners
Transaxle Oil
Expansion
Reservoir
LH Transaxle
PTO Clutch
Lever
LH Transmission
Control Rod
Air Cleaner
Cover
Battery
Fuel Gauge
Roll Over Valve
Air Cleaner
Oxygen
Sensor
Oil Filter
(Not Visible)
Electronic Control
Unit (ECU)
(Under Cover)
Oil Fill
(Not Visible)
Parking Brake
Safety Switch
Dipstick
Fuel Tank Cap
Fuel Tank
Fuel Tank
Selector Valve
EVAP Line
Fuel Filter
Fuel Pickup Line
Fuel Pump
(Low Pressure)
RH Transaxle
Clutch
Linkage
RH Transaxle
Lockout Arm
Parking Brake
Linkage
Parking Brake
Lever
LH Transaxle
Lockout Arm
