Walker H37i - Deck Leveling; Measuring Deck Levelness

Assembly Instructions
23

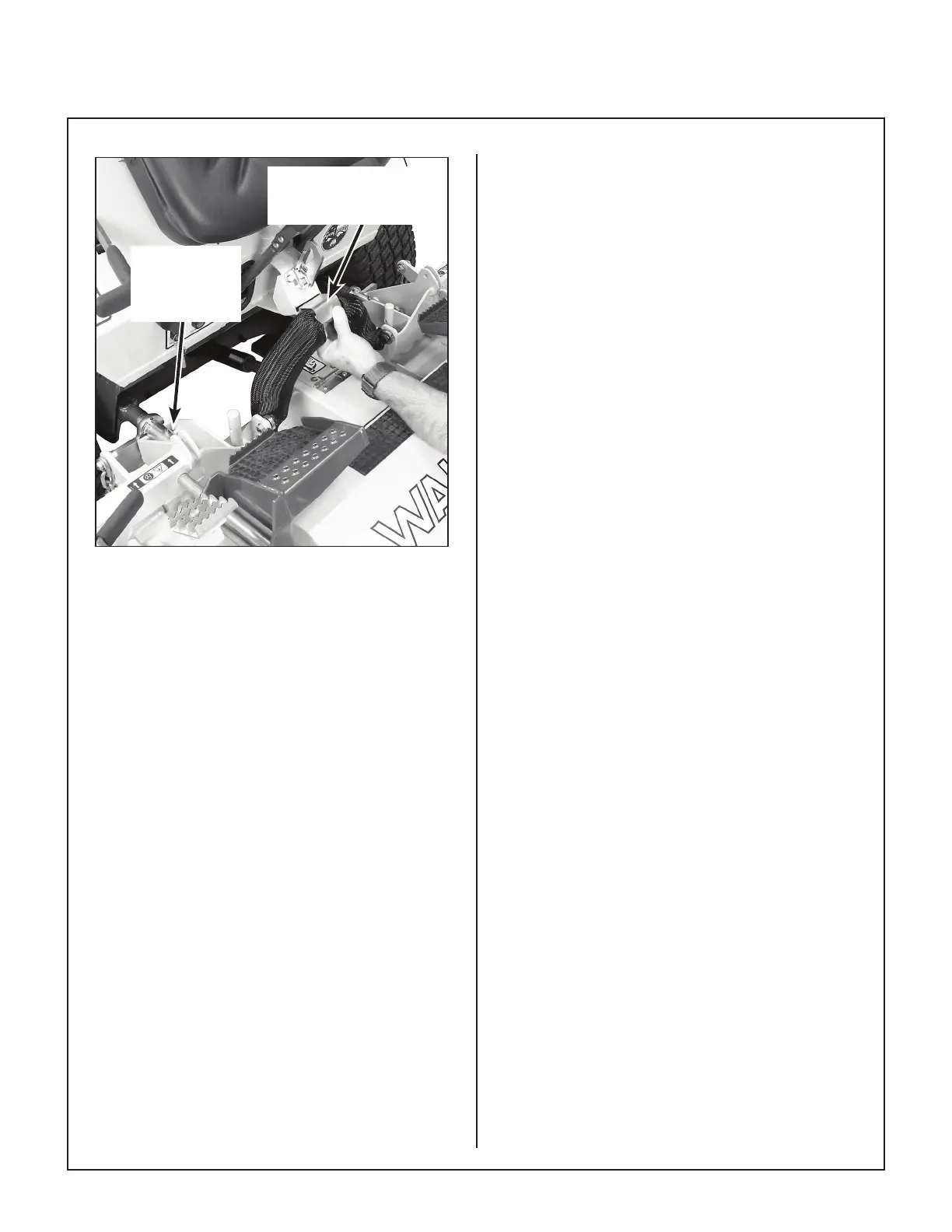

Counterweight Springs
Clip Onto Body
With Body Tilted Up
Lynch Pins
Lock Deck on
Support Arms
(Not Visible)
Deck Counterweight Spring Installation
Deck Leveling
The mower deck and support frame are jig welded
and the deck support linkage is factory adjusted.
Within normal tolerances, very little, if any, adjust
ment should be required to level the deck. Tire size
and pressure will a󰀨ect the levelness of the deck.
Assure that all tires (tractor and deck caster
wheels) are properly inated prior to checking
deck levelness or performing the deck leveling
procedure.
Measuring Deck Levelness
1. Position the mower on a smooth, level surface,
and set the deck height to the most common
cutting position. Refer to ADJUSTING CUT-
TING HEIGHT in Operating Instructions.
2. See the Deck Leveling illustration for sideto
side and fronttoback deck level measurement
points. Sidetoside measurements should not
vary more than 1/8 in. (3 mm). Fronttorear
measurements should have the rear 1/4 in.
(6 mm) to 3/8 in. (10 mm) higher than the front.
If either set of measurements are not within
tolerance, perform the Deck Leveling Procedure.
