Safety Instructions
15

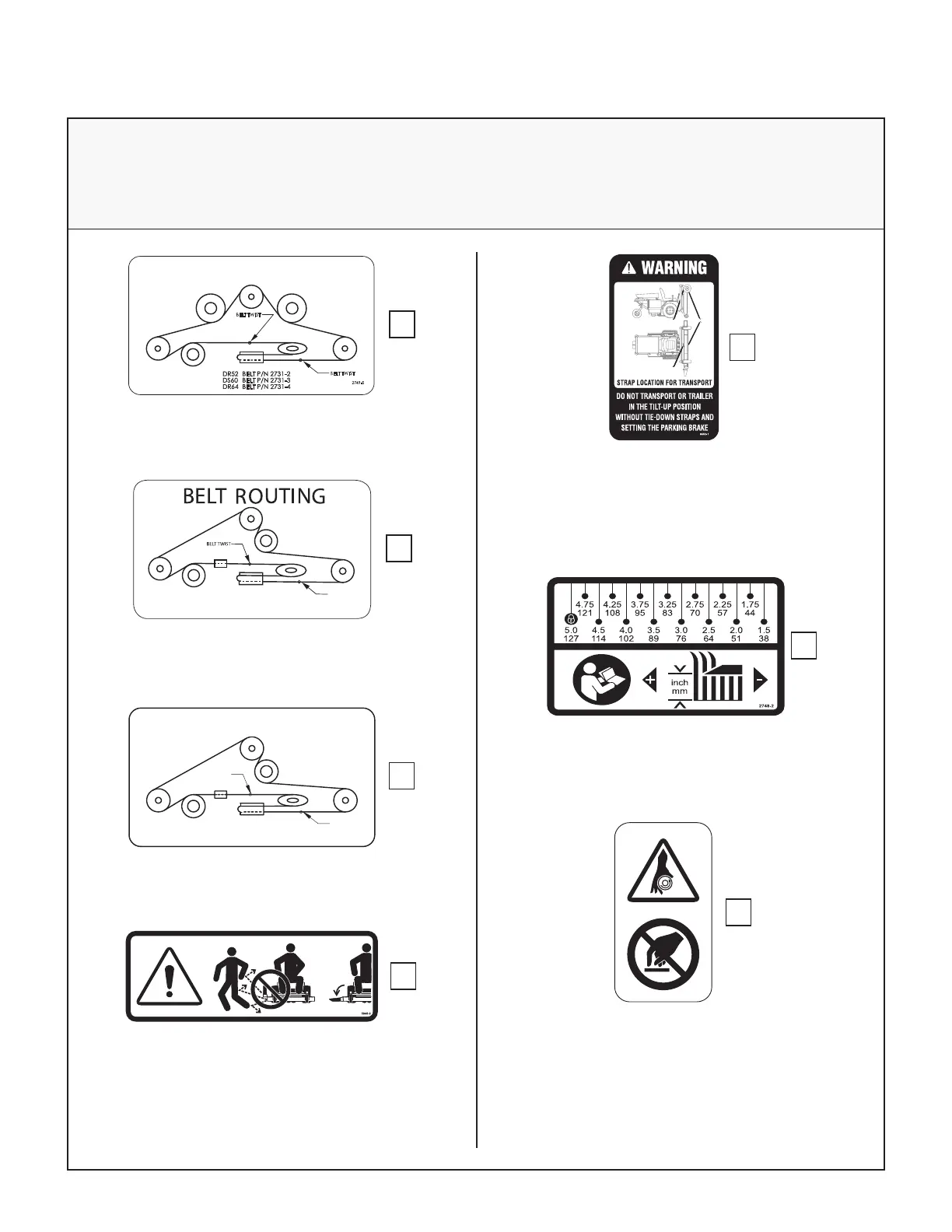

SAFETY, CONTROL, AND INSTRUCTION DECALS
Safety, Control, and Instruction Decals are installed on the machine;
if any are missing, illegible, or damaged, a replacement should be ordered and installed before
putting the machine into operation. The Decal Part Number is listed below and in the Parts Manual.
Location: Deck Discharge Shield (DS61)
Part Number: 5848-3
1. Warning – thrown object hazard.
● Always keep the discharge shield in the low
est position when operating.
● Do not remove the discharge shield.
Location: Top of Deck Housing
Part Number: 8653-1
1.
1. Warning – secure deck with straps and engage
parking brake before transporting or trailering
with deck tilted up.
Location: Deck Height Adjuster
Part Number: 2748-2
1. Move pin to desired height of cut.
1.
Location: Flex Coupler Guard in Front of Engine
Part Number: 8600-2
1. Warning – entanglement and cutting/dismem
berment hazards.
● Keep away from rotating shafts, belts, and
other components.
1.
8600-2
Location: Deck Housing Under Footrest
Part Number: 2749-7
1. DR64 deck drive belt routing.
1.
DR64 BELT P/N 2731-5
BELT T WIST
2749-7
Location: Deck Housing Under Footrest
Part Number: 2749-5
1. DR52 deck drive belt routing.
BELT ROUTING
BELT TWIST
BELT TWIST
2749-5
1.
Location: Deck Housing Under Footrest
Part Number: 2749-8
1. DS61 deck drive belt routing.
2749-8
BELT TWIST
BELT TWIST
BELT ROUTING
DS61 BELT P/N 2731-6
1.
1.
