58
Maintenance Instructions CLEANING

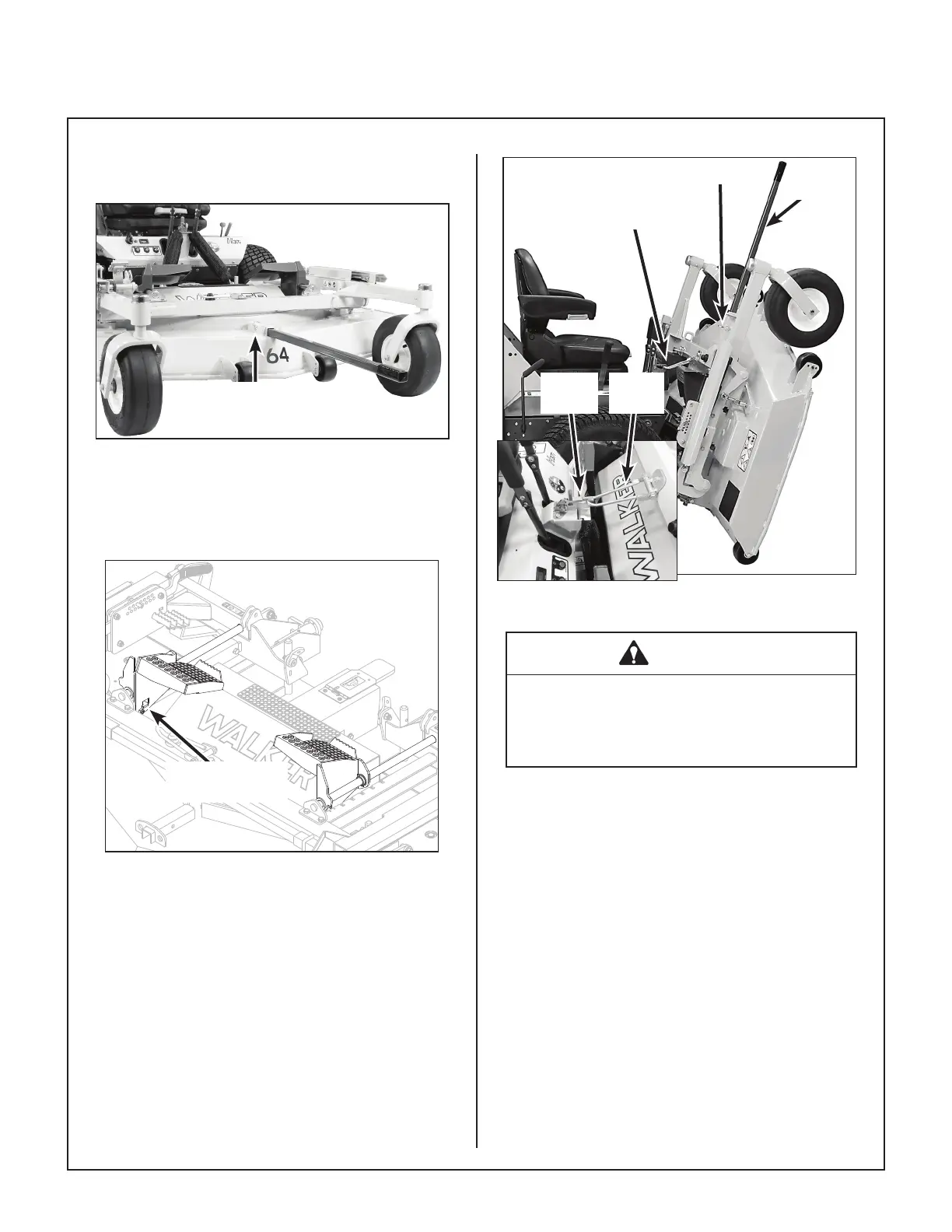

3. Fit tilt bar into the socket on front of deck hous
ing and secure with hitch pin.
Use Hitch Pin to
Secure Tilt Bar.
Tilt Bar Installed
4. Remove footrest or, if equipped with adjustable
footrests, move the footrest to the full forward
locking position.
8746-2
Full Forward/
Locked Position
Adjustable Footrest in Full Forward/Locked
Position for Deck Tilt-Up
5. Raise deck to tiltup position using tilt bar and
secure in position by inserting the deck hook in
the tiltup latch on the tractor body as shown in
the Deck Secured in TILT-UP Position photo.
Tilt Bar
TiltUp Hook and
Latch Connected
TiltUp
Hook
TiltUp
Latch
Hitch Pin
Deck Secured in TILT-UP Position
DANGER
Do not operate the mower with deck in tilt-
up position. Do not move the tractor with
the deck in the tilt-up position.
6. Clean grass buildup underneath the deck using
a pressure washer (and scraper if required).
NOTE: If the buildup is severe, it may be easier
to clean the deck by removing the deck assem
bly from the tractor and standing the deck as
sembly on its “nose”.
NOTE: While some degree of material buildup
in the mower deck housing can be tolerated, a
point is nally reached where cutting quality
deteriorates and clogging begins to occur
because of too much buildup on the ba󰀪ing and
housing.
7. Lower the deck to the normal operating position
and rotate locking arms downward into the
LOCKED position.
