Walker Mowers - Component Identification

Component Identication
6

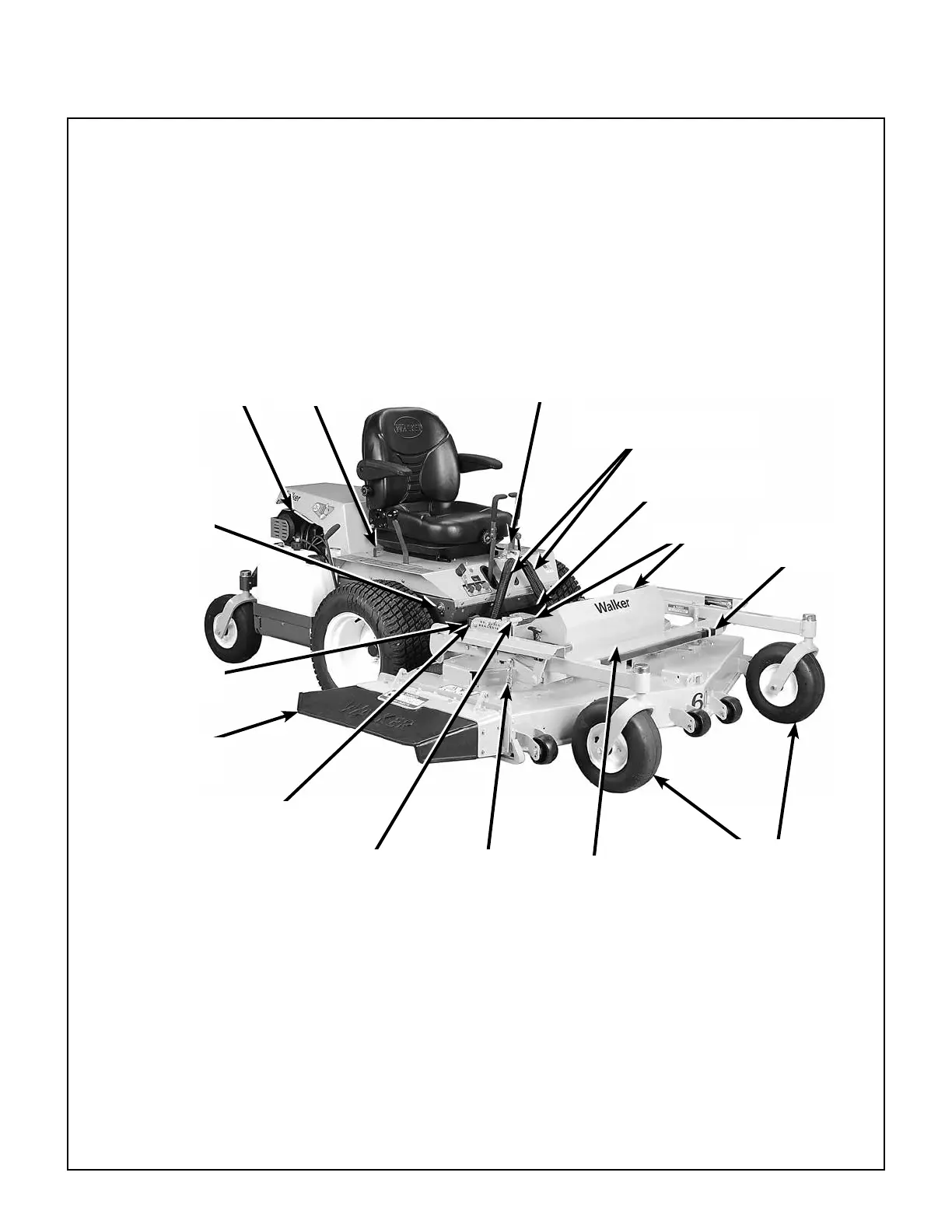

Front View and Right Side View
NOTE: Control Identication
shown in Operating
Instructions section.
Deck
Discharge Shield
Deck
Caster Wheels
Tilt Bar
Deck Handle
Footrests
Counterweight Springs and
Protective Covers
Tilt-Up Latch
Forward Speed
Control (FSC)
Friction
Adjustment
Deck Height
Lift Chain
Tilt-Up Hook
(Not Visible)
Deck Height
Adjustment Trigger
Height Adjustment Arm
(Cutting Height Adjustment)
Deck Support Arm
(Not Visible)
Deck Support Arm
(Not Visible)
Body Lift
Handle
Body Tilt-Up
Latch
