Maintenance Instructions ADJUSTMENTS

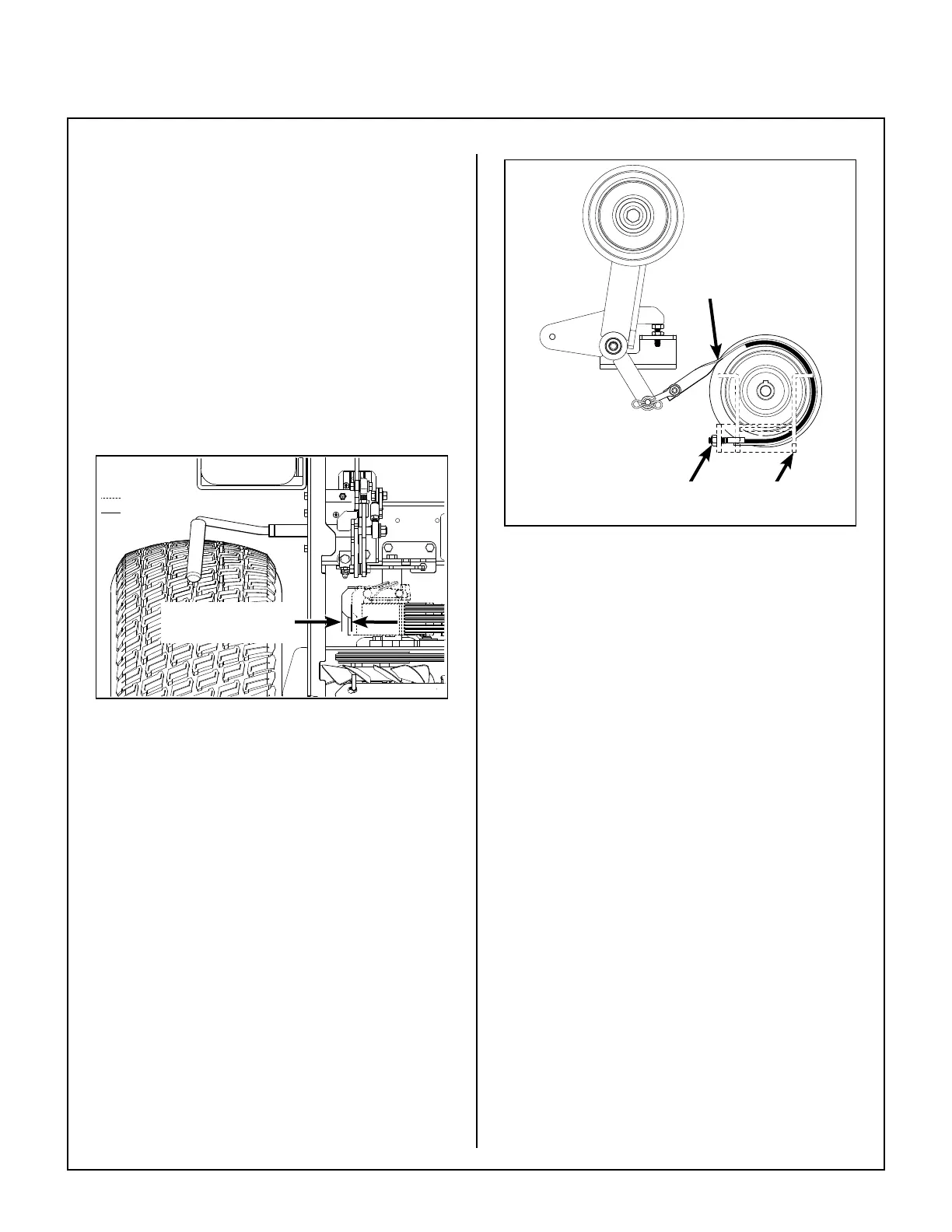

Step 2 - Blade Brake Band Adjustment
After the maximum pulley travel is set, adjust the
working travel of the clutch idler pulley by adjusting
the brake band nut and make the following adjust-
ment as needed:
1. Adjust the blade brake band, using the adjust-
ment nut until pulley travel is approximately
5/8 in. to 3/4 in. (16 mm to 19 mm) from engaged
to disengaged.
NOTE: As blade brake band/drum wears, pul-
ley travel will increase and it will be necessary
to adjust the blade brake band nut to maintain
these dimensions.
CLUTCH DISENGAGED
CLUTCH ENGAGED
5/8 in. to 3/4 in.
(16 mm to 19 mm)
Clutch Idler Pulley Travel Adjustment
Blade Brake
Band
Blade Brake
Band Adjustment Nut
Chassis Mount
(Ref)
Blade Brake Band Adjustment
2. After adjustments are complete, check blade
brake action as described in CHECKING/SER-
VICING the Blade Brake Action in this section.
If blades do not stop within ve (5) seconds,
check the following:
a. Make sure clutch and brake linkage are
working freely (no binding).
b. Check the brake band lining for wear.
c. Check the brake drum on the pulley. If ex-
cessive wear is present, it will be necessary
to replace worn parts.
