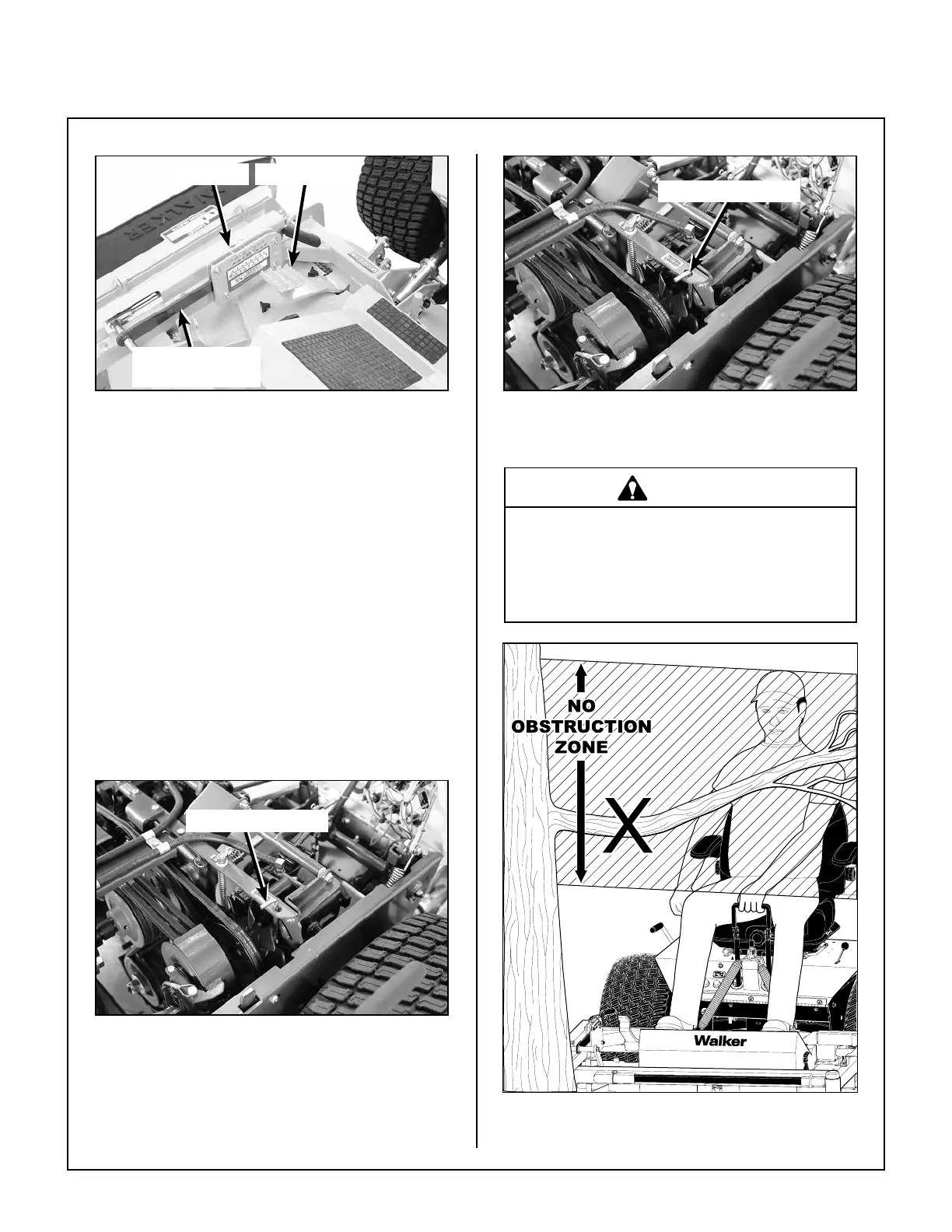

Operating Instructions
37
Height PedalHitch Pin
Height
Adjustment Lever
Cutting Height Adjustment Components
TRANSAXLE LOCKOUTS
IMPORTANT: DO NOT TOW this mower faster than
2 mph (3.2 km/h) with the transmission lockout en-
gaged. Towing can produce excessive internal
pressure and damage the transaxle(s).
To move the mower with the engine NOT running
(dead battery, maintenance, etc.), the transaxles
should be unlocked (released).
1. Raise the body.
2. Pull up the transaxle lockout rods on both the RH
and LH transaxles and secure into place by
shouldering both rods in the chassis notch area.
3. The mower will “freewheel” with the rods in the
LOCKOUT position. The levers must be in the
highest position to completely unlock the trans-
missions.
Hydro Lockout Rod
Hydro Lockout Rod - Freewheel Position
4. After moving the mower, release the rods, plac-
ing them in the normal OPERATING position.
The transmission rod ends should be com pletely
retracted against the chassis, otherwise opera-
tion of the transmission may be erratic.
Hydro Lockout Rod
Hydro Lockout Rod - Normal Operating Position
RECOMMENDATIONS FOR MOWING
DANGER
Do not mow around overhanging tree
branches or bushes at the same height as
the operator’s torso and head where inad-
vertent contact may cause injury.
Avoid Low Hanging Branches
