Assembly Instructions
20

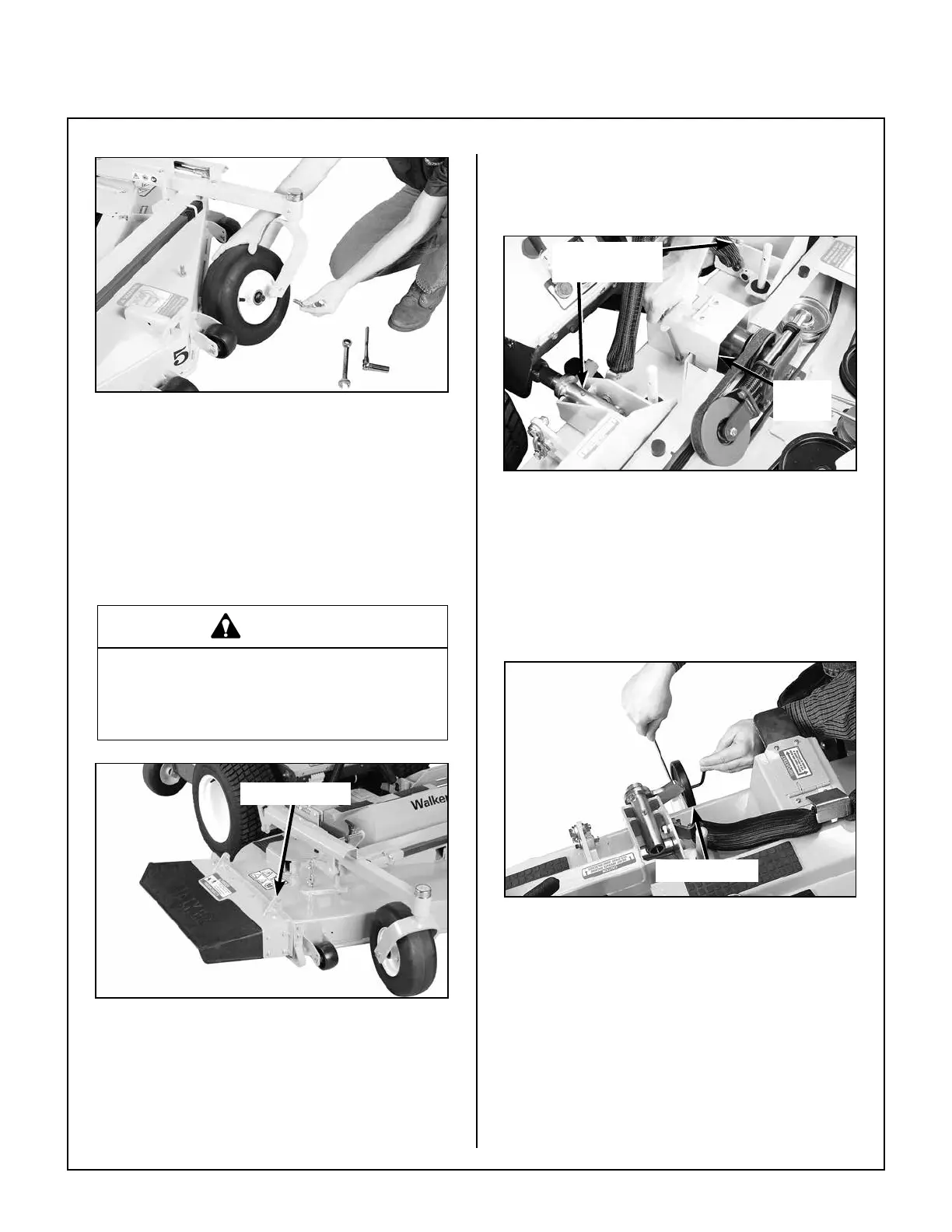

Deck Caster Wheel Installation
Deck Discharge Deector Shield Installation
(DSD60)
Attach the side discharge deector shield using two
(2) 3/8-16 x 1-1/4 in. bolts, 3/8-16 ESNA nuts, and
3/8 in. wave spring washers. The wave washers t
between the two hinging surfaces. Tighten the nuts
until the shield moves freely but is not loose.
WARNING
DO NOT operate the machine without the
grass deector shield attached and in the
lowest possible position.
Attach Shield
Deck Discharge Shield Installation
PTO Shaft Guard Installation
Position the shaft guard as shown and mount with
two (2) 1/4-20 x 1/2 in. bolts.
Attach
Guard
Carrier Frame
Tube Sockets
PTO Shaft Guard Installation
Tilt-Up Roller Wheel Installation
Mount the two (2) tilt-up roller wheels on the brackets
on the rear skirt of the deck housing using the
P/N 8490 axle bolt, 3/8 in. wave spring washer and
3/8-16 in. Whiz locknut. Tighten the axle bolt until the
wheel rolls freely, but is not loose.
Roller Wheel
Roller Wheel Installation (DSD60 Shown)
