Walker Mowers - Page 35

Operating Instructions
31
2802-3

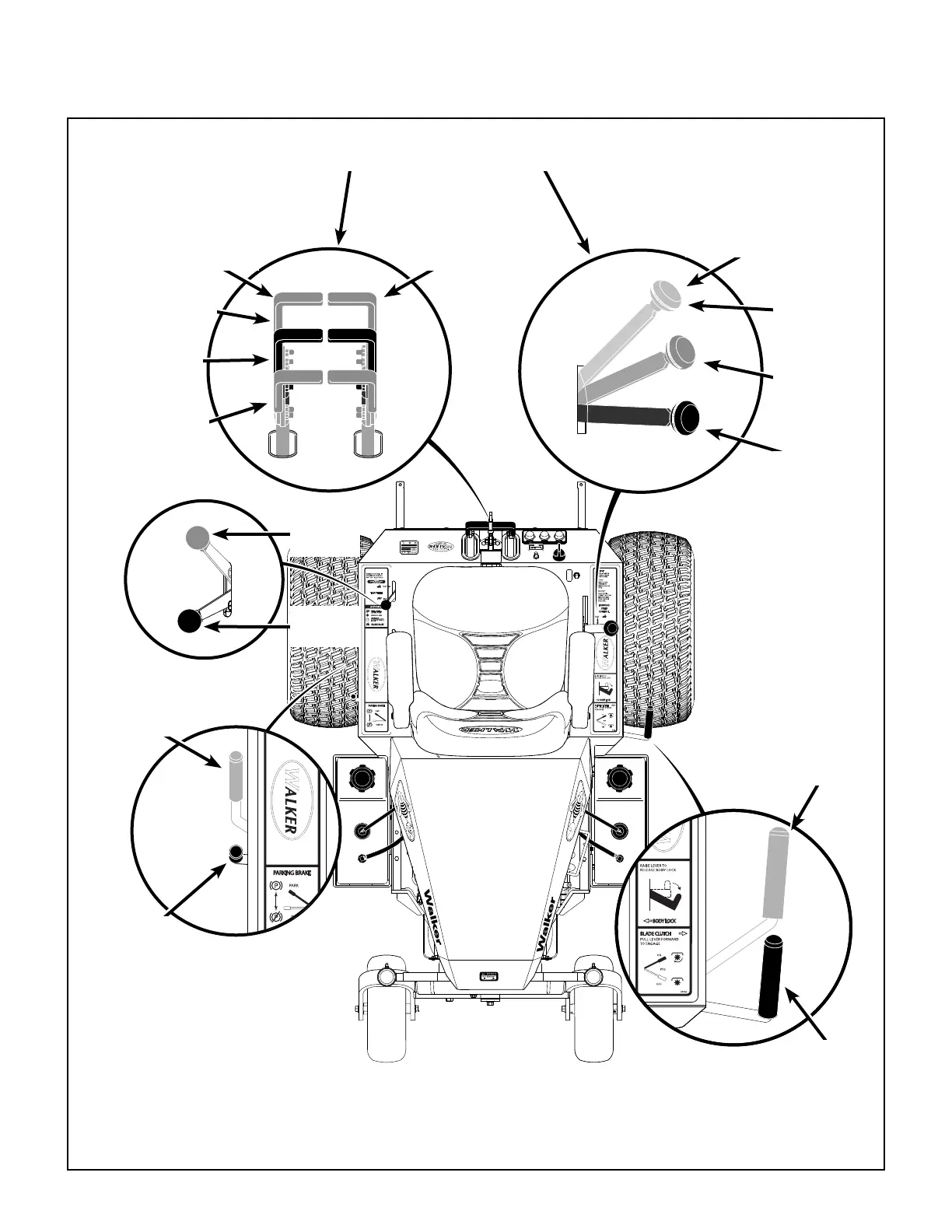

Operating Controls (Top View from Drivers Point of View)
FORWARD SPEED
CONTROL LEVER (FSC)
BLADE CLUTCH
(PTO)
Neutral-Park
Position
Forward Position
(No Control Change)
Idle
Position
RIGHT WHEEL
STEERING LEVER
LEFT WHEEL
STEERING LEVER
PARKING BRAKE
THROTTLE
The Forward Speed Control also Establishes the Neutral-Park Position of the Steering Levers
Full Forward
Ground Speed
Position
Intermediate
Ground Speed
Position
Reverse Drive
Wheel Motion
Position
Fast
Throttle
Position
Neutral-Park
Position
Engaged
Position
Engaged
Position
Disengaged
Position
Disengaged
Position
