Walker R21 User Manual

R21 Operating Instructions
21
The Forward Speed Control (FSC) lever sets the
maximum forward speed, and also sets the for-
ward position of the steering levers.
The steering levers operate only with a back-
ward pulling movement of the lever, which
causes the drive wheel for that lever to rst slow
down, stop, and then reverse with a full backward
lever stroke. The levers are released to the FOR-
WARD position for “straight-ahead” ground travel.
NOTE: Pushing forward on the steering levers will
not cause any change in tractor motion - there will
be no steering lever reaction and there will be no
machine damage.
BLADE CLUTCH (PTO)

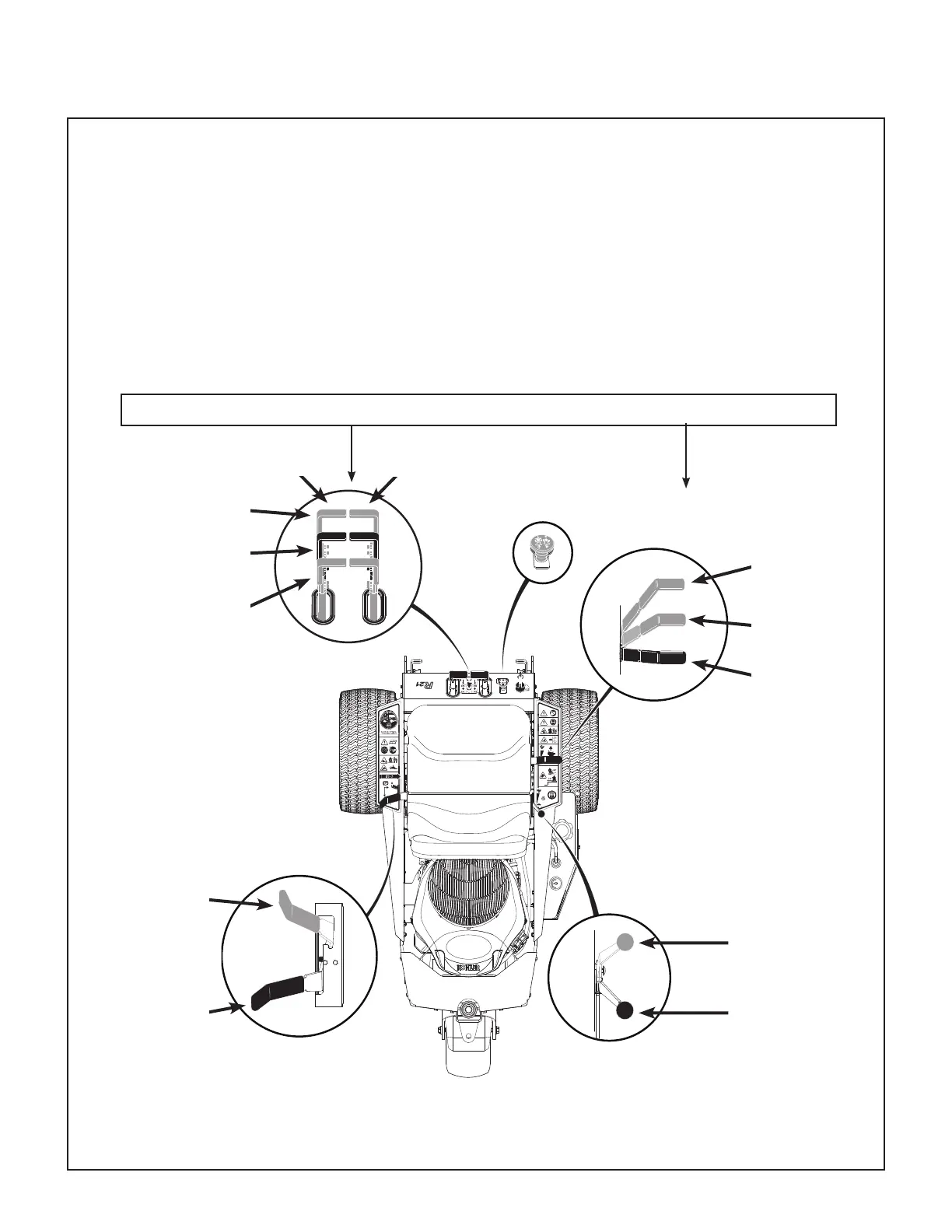

Operating Controls (Top View from Drivers Point of View)
PARKING
BRAKE
ENGINE
THROTTLE
FORWARD SPEED
CONTROL LEVER (FSC)
Idle
Position
Fast
Throttle
Position
RIGHT WHEEL
STEERING LEVER
LEFT WHEEL
STEERING LEVER
Forward Position
(No Control Change)
Reverse Drive
Wheel Motion
Position
Neutral-Park
Position
Full Forward
Ground Speed
Position
Neutral-Park
Position
Intermediate
Ground Speed
Position
The Forward Speed Control also establishes the NEUTRAL-PARK position of the steering levers.
Disengaged
Position
Engaged
Position

Walker R21 Specifications

General

Drive System	Hydrostatic
Cutting Height	1.5 - 4.5 inches
Engine	Kohler CH740
Engine Type	Air-cooled
Cutting Width	52 inch
Wheel Size	20 inches (rear)
