Maintenance R21
44
Change Engine Crankcase Oil and
Filter
Frequency: After initial 5 hours (engine break-in
period) and every 100 hours thereafter
1. Run the engine for at least 10 minutes in a
well-ventilated area. The engine oil should be
warm before draining.
WARNING
NEVER run the engine in an enclosed or poor-
ly ventilated area. Engine exhaust contains
carbon monoxide, an odorless and deadly
gas.
2. Park the mower on a level surface with the
en gine stopped and the key removed from the
ignition.
3. Before removing the dipstick, clean the area
around the dipstick to keep any dirt or debris
out of the en gine.
4. Remove the dipstick and oil drain plug, and
drain the oil into a suitable container. The oil
drain is located behind the left drive tire. Be
sure to allow ample time for complete drain-
age.

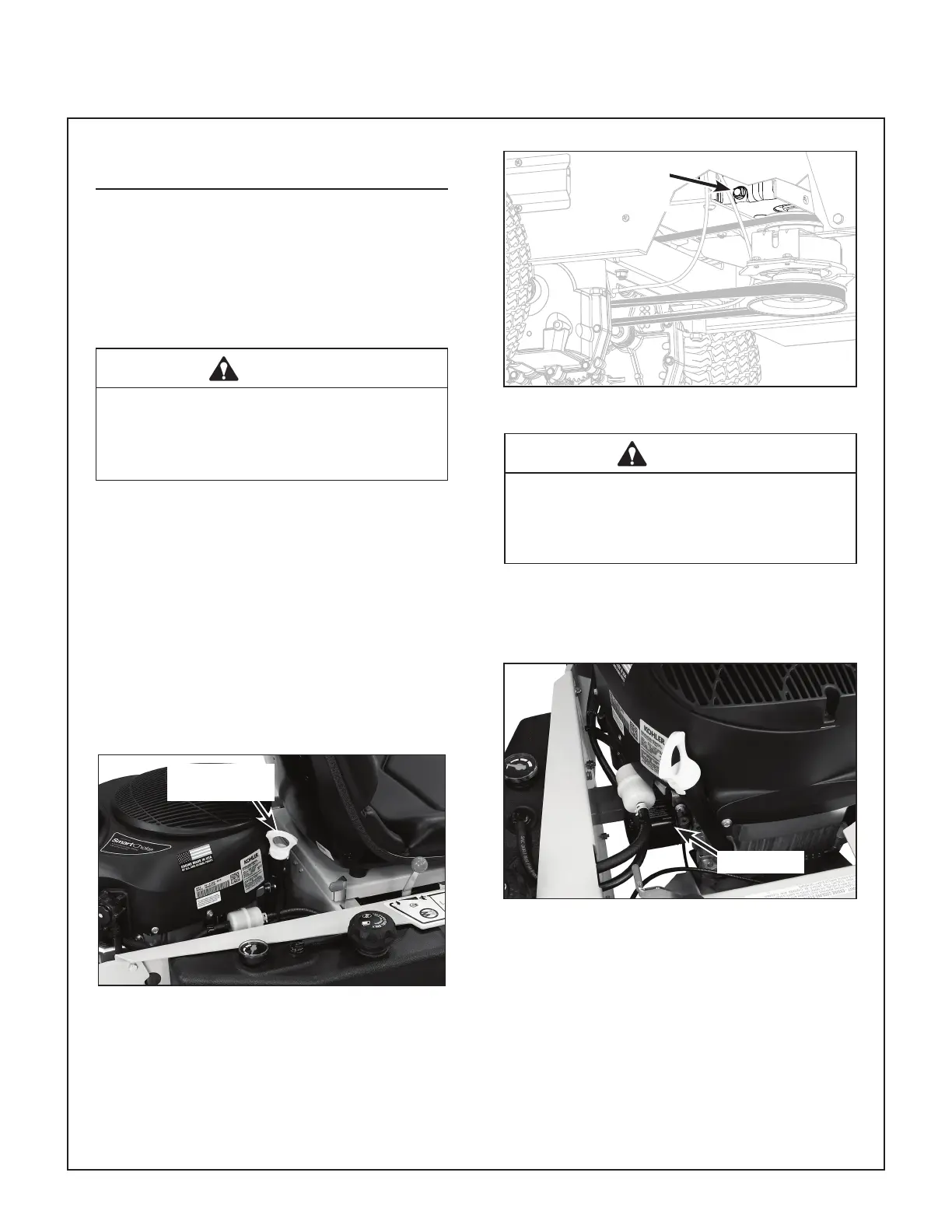

Oil Dipstick &
Oil Fill
Oil Dipstick and Oil Fill Location
Oil Drain
Plug
Oil Drain Location (on LH Side of Engine)
WARNING
Use caution when draining the oil because it
may be very hot. Wear appropriate protective
gear to avoid being burned or exposed to the
engine oil.
5. Before removing the oil lter, clean the area
around the lter to keep dirt and debris out of
the engine.
Oil Filter
Oil Filter Location
(Beneath the Fuel Filter)
6. Remove the old oil lter and wipe off the lter
mounting surface on the engine.
7. Apply a thin coating of clean oil to the rubber
gasket on the replacement oil lter.
To Next Page
