Safety Instructions
17

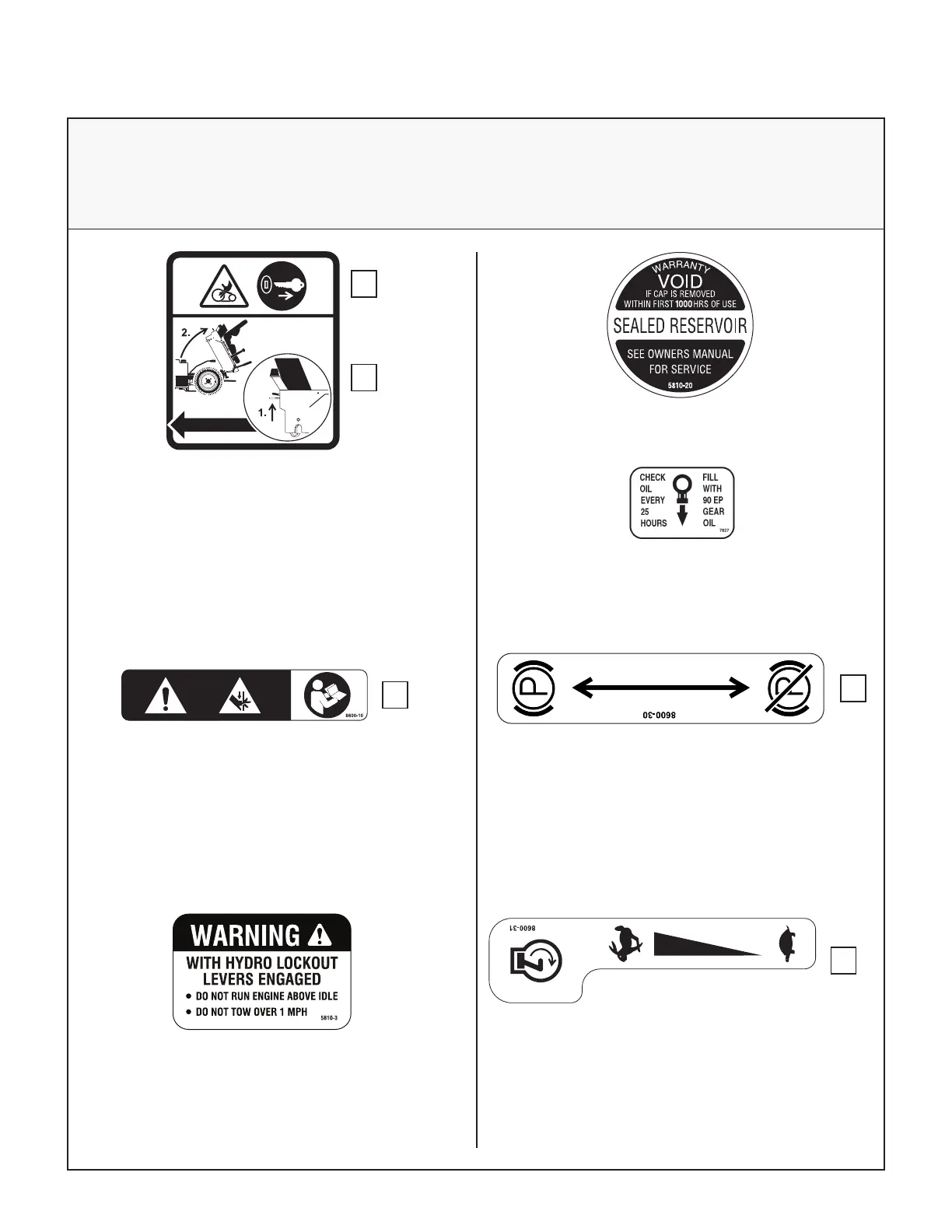

SAFETY, CONTROL, AND INSTRUCTION DECALS
Safety, Control, and Instruction Decals are installed on the machine;
if any are missing, illegible, or damaged, a replacement should be ordered and installed before
putting the machine into operation. The Decal Part Number is listed below and in the Parts Manual.
Location: Right Side, Behind Operator Seat
Part Number: 8600-23
1. Warning – entanglement hazard.
● Remove ignition key before raising front
body.
2. Body Tilt Latch
● Raise lever to release.
● Lift at back of body to raise.
1.
1. Caution - Pinch point.
● Keep all body parts clear when closing grass
catcher door.
Location: Catcher Door Hinge Bar,
LH and RH Sides
Part Number: 8600-10
Location: Hydrostat Oil Reservoir
Location: LH Gear Axle
Part Number: 5810-3
Location: Jackshaft Support Adjacent
to Dipstick
Part Number: 7827
Location: Front Body, RH Side Adjacent to
Operator Seat
Part Number: 8600-30
1. Parking Brake
● Move lever forward to engage Parking Brake;
back to disengage.
1.
Location: Front Body, LH Side Adjacent to
Operator Seat
Part Number: 8600-31
1. Throttle
● Move lever forward to increase engine
speed; back to idle.
1.
1.
2.
8600-23
