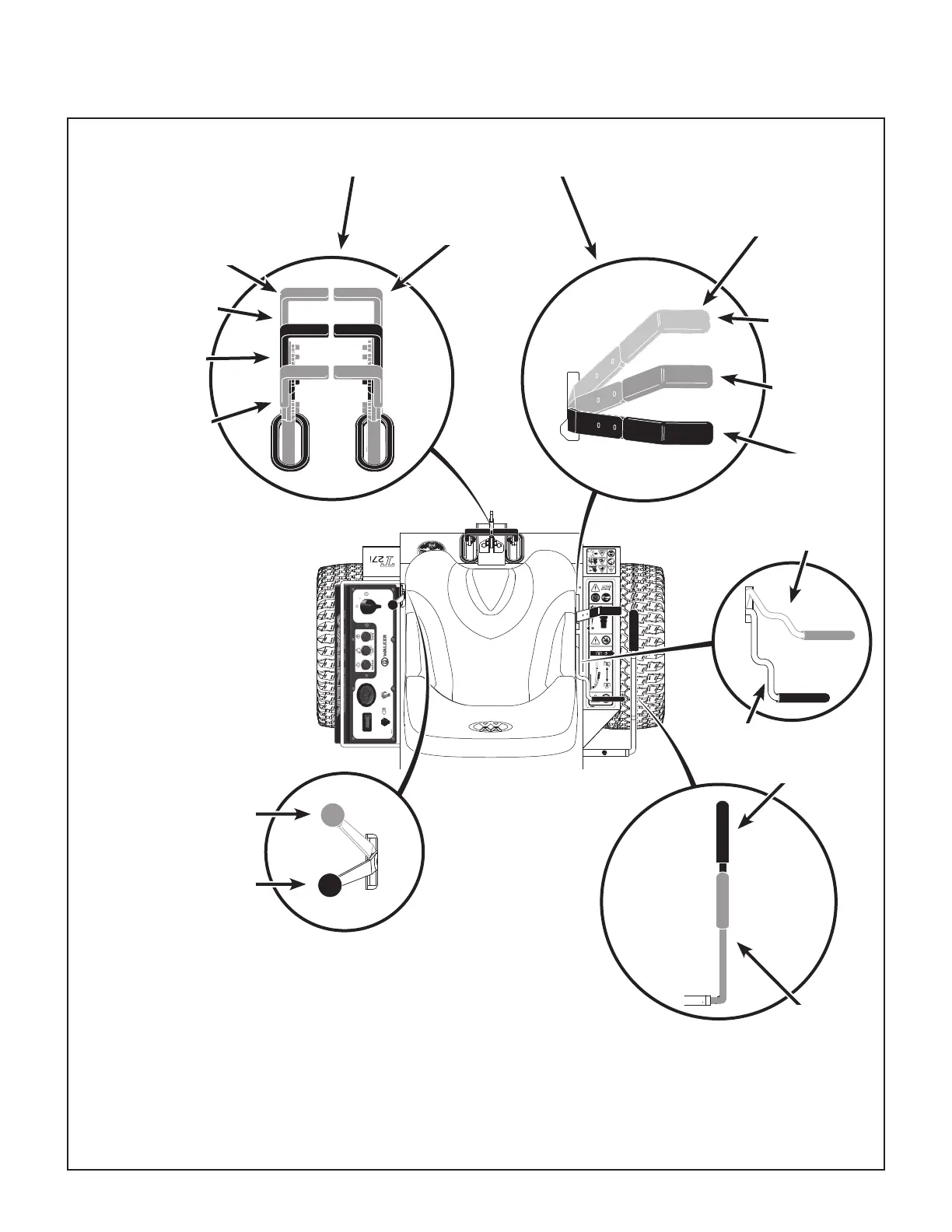

Operating Controls (Top View from Drivers Point of View)
1. 2.
BLADE CLUTCH (PTO)
Pull Up to Engage
PARKING
BRAKE
THROTTLE
The Forward Speed Control also Establishes the Neutral-Park Position of the Steering Levers
Forward Position
(No Control Change)
LEFT WHEEL
STEERING LEVER
Reverse Drive
Wheel Motion
Position
Neutral-Park
Position
RIGHT WHEEL
STEERING LEVER
Fast
Throttle
Position
Idle
Position
Engaged
Position
Disengaged
Position
Disengaged
Position
Engaged
Position
Neutral-Park
Position
Full Forward
Ground Speed
Position
Intermediate
Ground Speed
Position
FORWARD SPEED
CONTROL LEVER (FSC)
