T27i Maintenance Instructions
Replacing and Repairing
77
REPLACING/REPAIRING
DANGER
To prevent accidental starting of the engine
when replacing parts or repairing the ma-
chine, remove the key from the ignition
switch and disconnect the spark plug
wires.
IMPORTANT: ALWAYS use genuine factory
replacement parts. Substitute parts CAN result in
product malfunction and possible injury to the
operator and/or others.
Drive Belts
There are four (4) individual belts on GHS mod-
els or three (3) belts on SD models:
● Jackshaft Drive Belt
● Engine PTO Drive Belt (3 Groove Power Band)
● GHS Blower Drive Belt (GHS Model Only)
● Hydrostatic Ground Drive Belt
The belts may be removed and replaced using the
procedures described on the following pages.

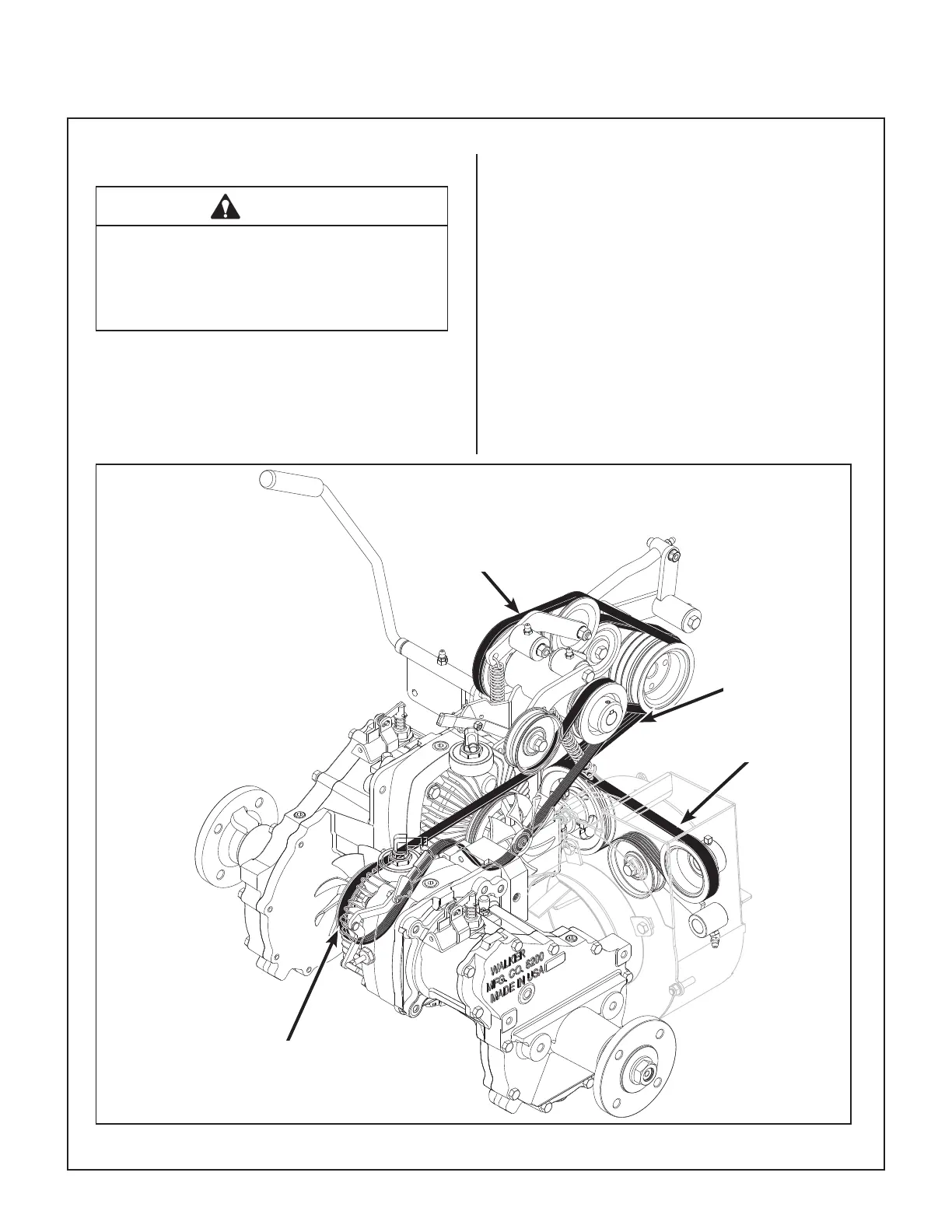

Belt Locations
Jackshaft
Drive Belt
Hydrostatic Ground
Drive Belt
Engine PTO
Belt
GHS Blower Belt
(GHS Model Only)
