Walker T23 Operator's Manual

Maintenance Instructions T27i
Cleaning
66
CLEANING
CAUTION
If a pressure washer is used on the ex-
posed working parts, avoid water on the
electrical parts and the engine cooling sys-
tem.
Engine Air Cleaner System
There are two main components in the engine air
cleaner system: a turbine precleaner and a Don-
aldson Radialseal™ air cleaner. Each component
is checked, cleaned and maintained on a di󰀨erent
schedule based on the ltering action required.
Each component is serviced as follows:
Turbine Precleaner
The turbine precleaner is mounted on a remote air
intake tube connected to the Donaldson air clean-
er. A spinning fan driven by the intake airow
separates dust from the air, giving the initial stage
of air clean ing. Dust particles are exhausted
through a single small vent in the side of the hous-
ing. Since no dust is trapped, the precleaner oper-
ates without clean ing. The only maintenance
required is to check the operation of the internal
fan every 100 hours. Verify operation:
1. Loosen the hose clamp and remove the tur-
bine precleaner.
2. Reach into the intake and check that the fan is
spinning freely. Reinstall the precleaner.
If the fan is not spinning, service or replace the
precleaner as required.

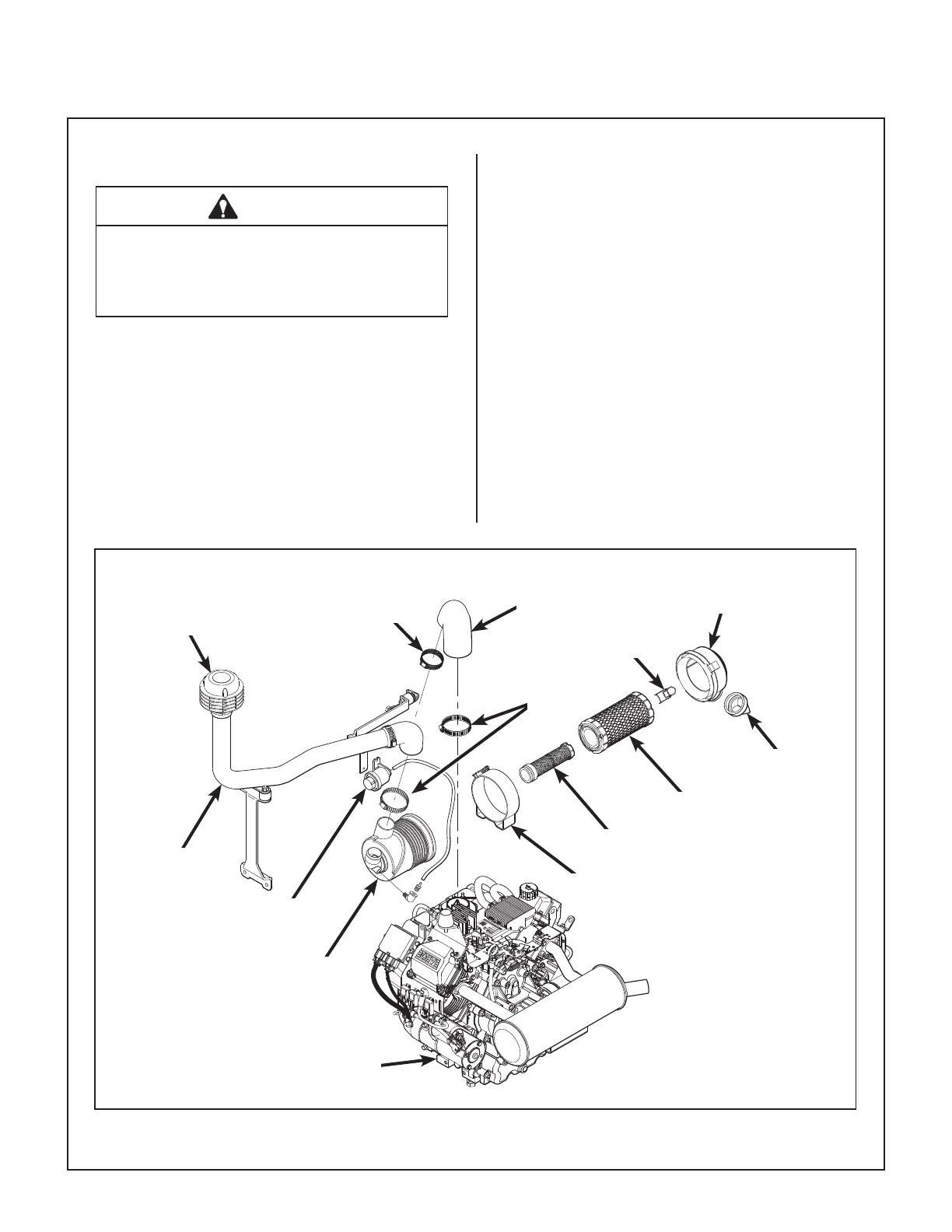

Engine Air Cleaner System Components
Dust Ejection
Valve
Donaldson Air
Cleaner Cover
Engine
Turbine
Precleaner
Precleaner
Tube
Safety
Filter
Primary Filter
Element
Air Filter
Restriction Gauge
Hose
Clamp
Air Intake
Hose
Cover
Latch
Mounting
Band
Hose
Clamps
Donaldson
Air Cleaner
