T27i Maintenance Instructions
Lubrication
65
Elbow
Connector
Drain
Plug
Elbow
Connector
Disconnect
Line to Drain
Disconnect
Line to Drain

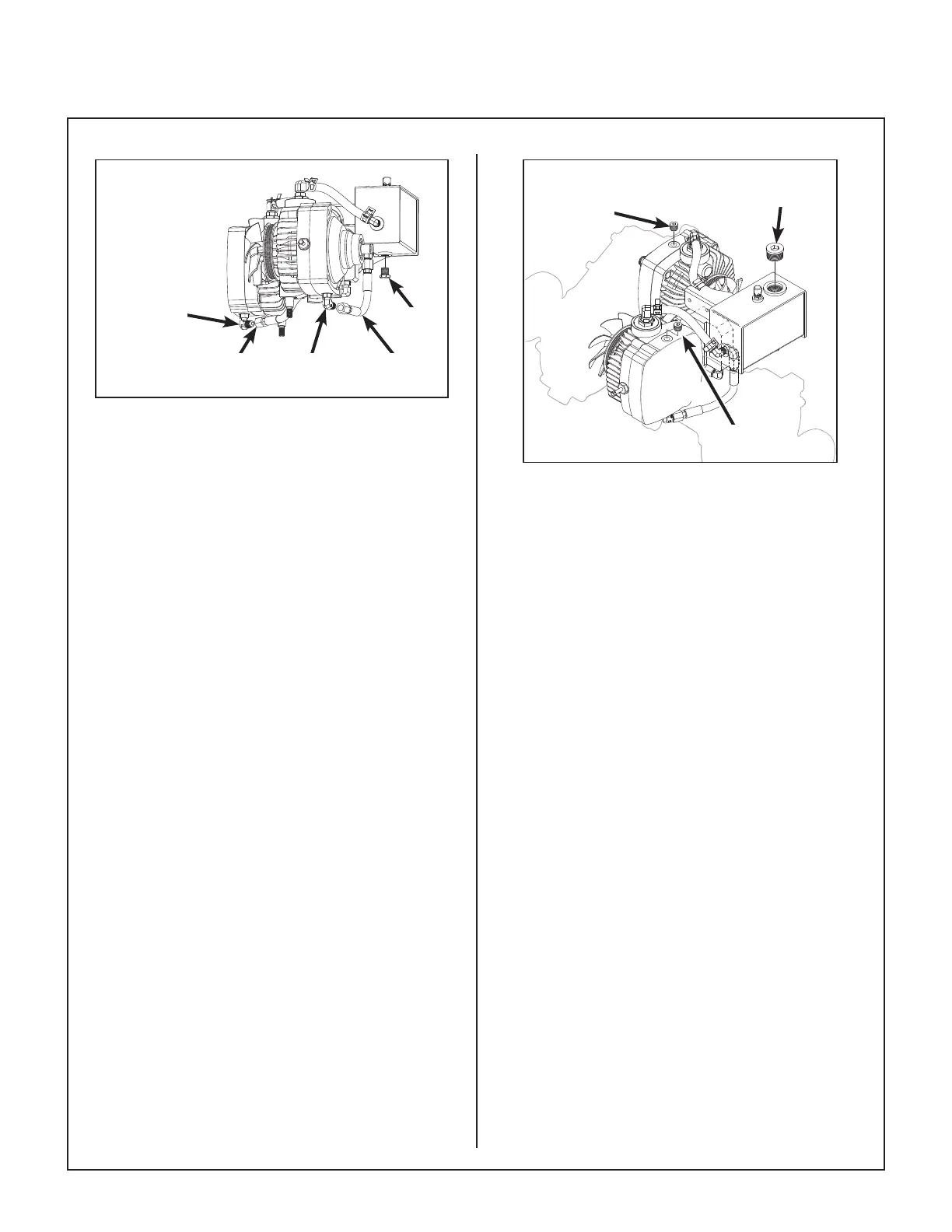

Drain Transmission Oil
4. Remove the old lter and wipe o the lter
mounting surface.
5. Install the new lter. Lubricate the lter gasket
with a drop of fresh oil. Turn the lter clock-
wise until the rubber gasket contacts the seal-
ing surface, then turn an additional 3/4 turn.
Do not over-tighten.
NOTE: Use ONLY a Walker lter (P/N 5024-
13).
6. Reconnect the lines between the oil pump and
the transmissions at the elbow connectors.
Use a 12mm and a 17mm wrench to prevent
the hose from rotating while tightening the
connection.
7. Apply a thread sealer to the reservoir drain
plug, then reinstall.
8. Thoroughly clean the area around each ll
plug on the top of each transmission. Remove
the ll plugs, and use a small funnel to ll to
the bottom of the threads—approximately 16
oz. Reinstall the ll plugs. See Fill Transmis-
sion Oil illustration for location of ll plugs.
NOTE: Use ONLY Mobil SHC
TM
630 oil (P/N
6450-20).
9. Thoroughly clean around the reservoir ll cap,
and remove the cap. Fill the reservoir to the
bottom of the threads.
10. Keep the cap o, start the engine, and let the
engine run for a few minutes while watching
the oil through the ll opening for the air (foam)
to dissipate. Add additional oil to reach the
cold ll line (about half-way up the sight gauge
window) if necessary.
Fill Plug
Reservoir
Fill Cap
Fill Plug
Fill Transmission Oil
11. Reinstall the reservoir ll cap. Drive the trac-
tor for 5 minutes. Let the engine cool and
check the cold ll level again. Add additional
oil to reach the cold ll line (about half-way up
the sight gauge window) if necessary.
12. Check all connections for leaks and tighten if
necessary.
To Next Page
