Walker T23 - GHS Blower Drive Belt

Maintenance Instructions T27i
Replacing and Repairing
80
GHS Blower Drive Belt
1. Remove the GHS blower drive belt tension by
depressing the idler pulley on the tightener
arm. Roll the belt o󰀨 the blower pulley.

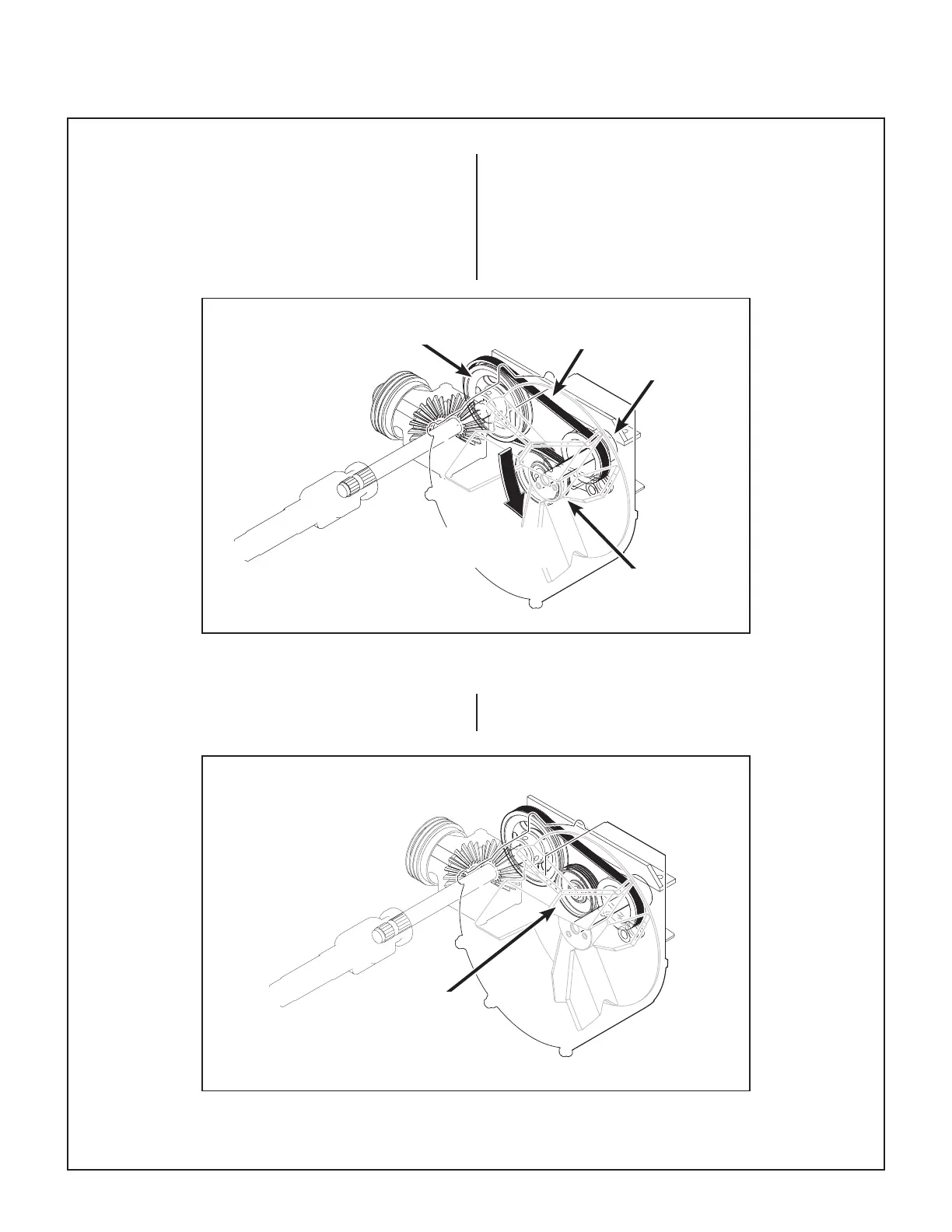

GHS Blower Drive Belt Assembly (Disengaged)
GHS Blower Drive Belt Assembly (Engaged)
Depress Idler Pulley
Down to Relax Belt
GHS Blower
Drive Belt
Blower Drive
Pulley
Blower
Pulley
Belt Tightener
Idler Pulley
(Disengaged)
Belt Tightener
Idler Pulley
(Engaged)
2. Reverse the procedure to install the GHS
blower drive belt.
