Walker T23 Operator's Manual

86
Maintenance Instructions T27i
Adjustments
Steering
Adjustment Nut
Forward Travel
Stop Bolt
Steering Lever
Actuator Arms
Forward Speed Control Stop and
Steering Lever Adjustment
3. Tighten the jam nut on the forward travel stop
adjusting bolt.
Set Maximum Forward Travel Speed (Stop) -
Step 3
1. Position the FSC lever to the most FORWARD
position.
2. Turn the steering lever adjustment nut(s) until
2 or 3 threads are showing past the end of the
nut.
3. Loosen the jam nut at the other end of the
control rod (where it connects to the transmis-
sion control arm).
4. For each steering lever, use a wrench on the
adjustment nut, turn the control rod counter-
clockwise (CCW) until the steering lever be-
gins to move backward, then make two addi-
tional turns. Next, reverse and turn the control
rod clockwise (CW) until the steering lever
stops moving forward and then make one
additional turn. Tighten the jam nut.
NOTE: Failure to make at least one extra
turn on the control rod can place excessive
loads on the transmission internal control
stops and cause internal wear and damage to
the transmission. Making additional turns
beyond one turn reduces the maximum for-
ward travel speed.
Adjustment
Nut
Transmission
Control Arm
Jam Nut
Control
Rod

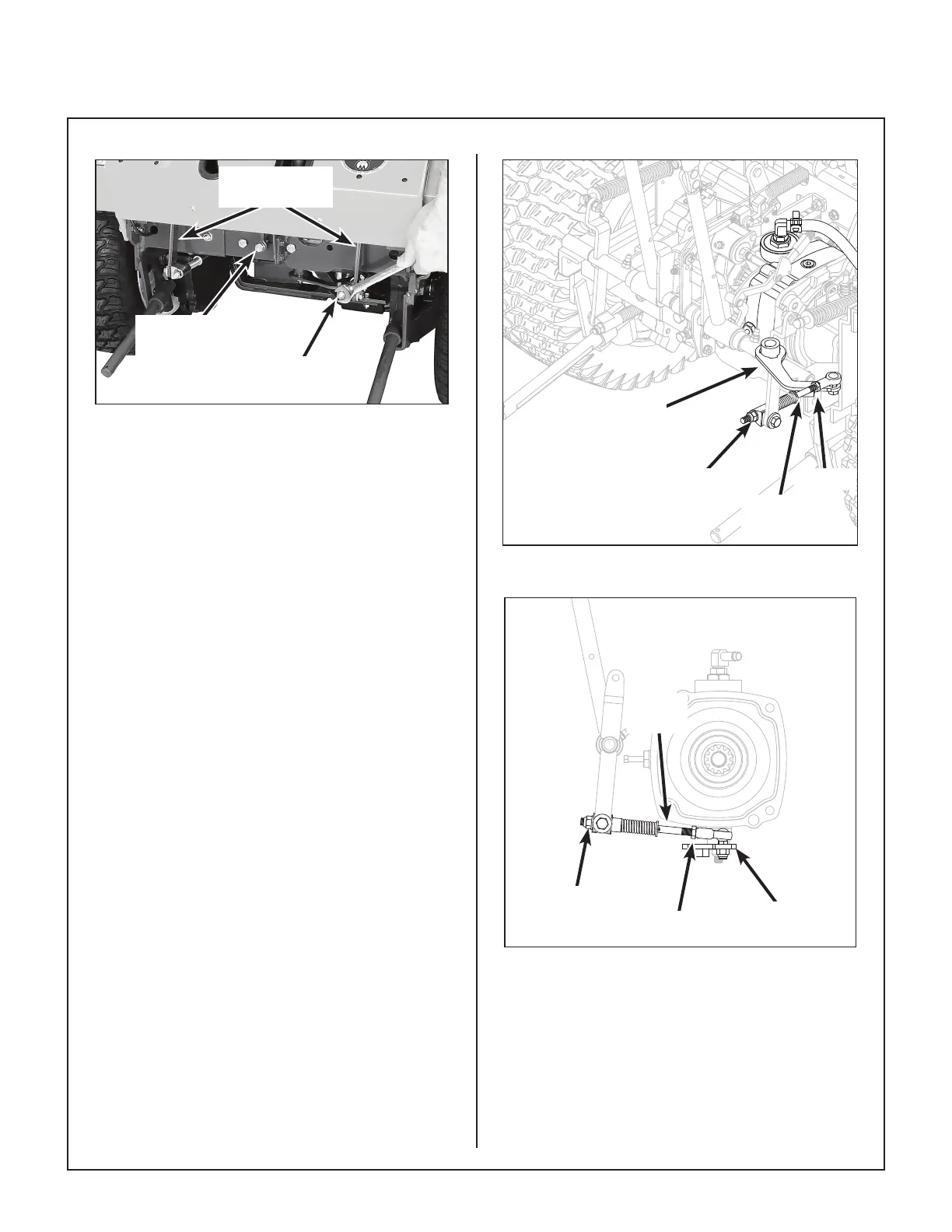

Transmission Control Rod and Arm Location
(Front Body Hidden for Clarity)
Adjustment Nut
(2 or 3 Threads
Showing)
Transmission
Control Arm
Control
Rod
Jam Nut
Adjustment Components
Neutral Function Adjustment - Step 4
1. Securely block the tractor up so the drive tires
are o󰀨 the ground.
2. Move the FSC lever to the NEUTRAL-PARK
position (rear travel limit).
