T27i Maintenance Instructions
Replacing and Repairing
81
Hydrostatic Ground Drive Belt
1. To remove the hydrostatic ground drive belt:
a. Raise the spring-loaded belt tightener arm
and idler pulley to relax belt.
b. Slide belt o󰀨 pulleys, then release the idler.

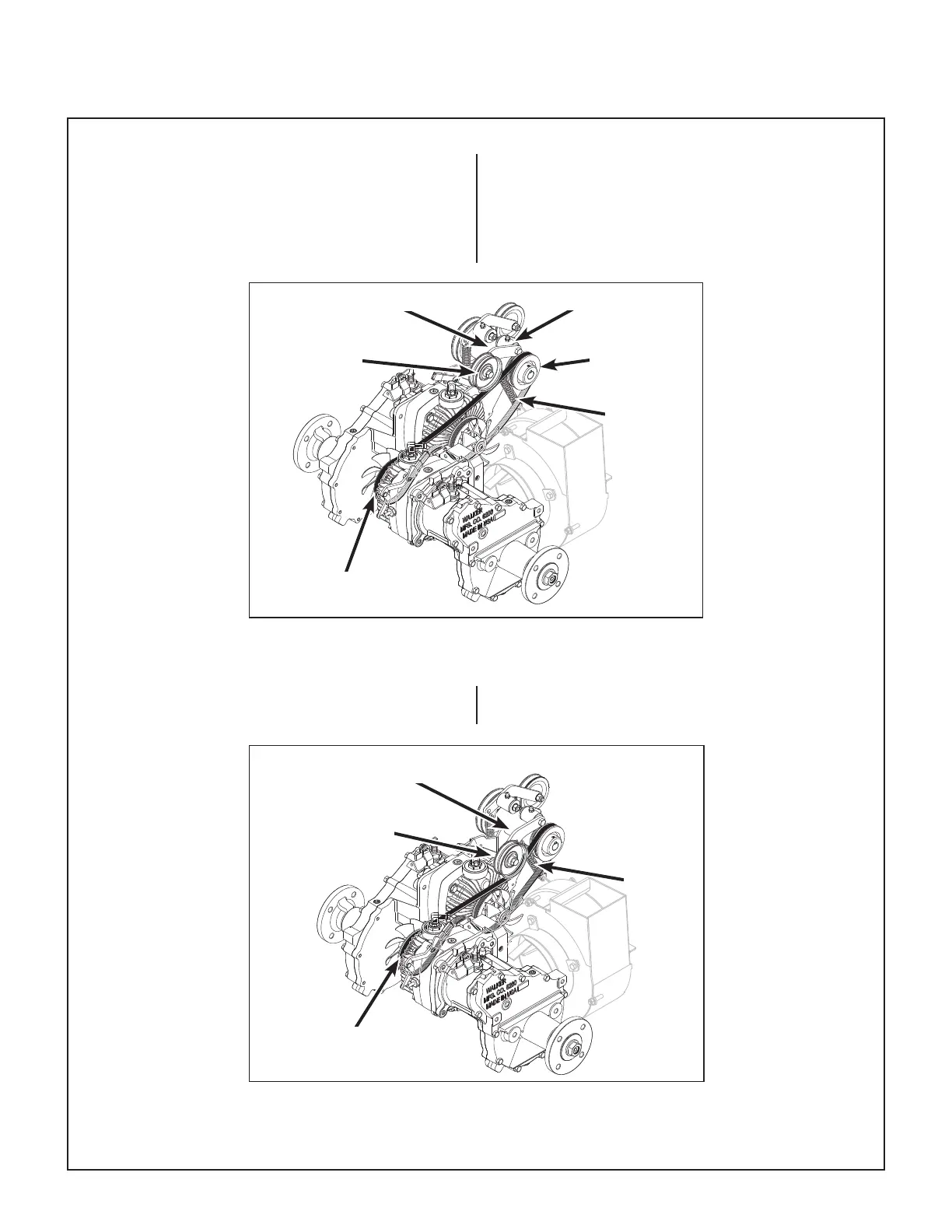

Hydrostatic Ground Drive Belt Assembly (Disengaged)
Hydrostatic Ground Drive Belt Assembly (Engaged)
2. Reverse the procedure to install the hydrostatic
ground drive belt.
Transmission
Drive Pulley
Jackshaft
Idler Pulley
Belt Tightener Arm
Hydrostatic
Ground Drive Belt
Spring
Hydrostatic
Ground Drive Belt
Belt Tightener Arm
Idler Pulley
Spring
