Walker T23 Operator's Manual

Maintenance Instructions T27i
Lubrication
62
Ident Lubrication No.
No. Location Type Places
1 Deck Caster Wheel Fork Pivot Grease 2
2 Deck Caster Wheel Bearing Grease 2
3 Blade Spindle Grease
Δ
3
4 Pivot Assembly, Tilt-Up Deck Grease 4
5 Deck Support Arm Socket Grease 2
6 Right Angle Gearbox Oil*
Δ
1
7 Universal Joint Shaft Assembly Grease** 1(2
Δ
)
8 Dolly Wheel Retract Oil
Δ
1
Lever and Linkage
9 Dolly Wheel Pivot Grease
Δ
1
10 Idler Arm Pivot Grease
Δ
1
11 Tee Gearbox, Deck Oil* 1
12 Blade Drive Gearbox Oil* 2
13 Steering Lever Pivot Grease 4
14 Body Hinge Point Oil 2
15 Deck-to-PTO Coupling Grease 1
(Grease Spline Slide Area)
16 (FSC) Friction Body Pivot Grease 1
17 FSC Actuator Rod Pivot Pins Oil 2
18 FSC Lever Pivot Grease 1
19 Deck Support Arm Pivot Grease 2
20 Gear Axle Oil*** 2
21 Universal Joint Tube Assembly Grease** 1
22 Parking Brake Lever Pivot Grease 1
23 Hydrostatic Drive / Oil Reservoir Oil*** 3
24 Belt Tightener Pivot, Grease 1
Jackshaft Drive
25 PTO Clutch Lever Pivot Grease 1
26 Clutch Actuator Push Rod Grease 2
27 Belt Tightener Pivot, Grease 1
PTO Clutch
Ident Lubrication No.
No. Location Type Places
28 Brake Actuator Rod and Brake Oil 3
Band Pivot Pins (Clevis)
29 Throttle Control Cable Ends Oil 2
30 Brake Actuator Pivot Grease 1
31 Catcher Hinge Point Oil 2
32 Rear Wheel Bearing Grease 2
33 Engine Dipstick / Oil Fill Oil*** 1
34 Belt Tightener Pivot, Grease 1
Blower Drive (GHS Model Only)
35 Belt Tightener Pivot, Grease 1
Ground Drive
36 PTO Gearbox Dipstick Oil*** 1
37 Universal Joint Quick Connect Grease 1
Spline (Grease Slide Area)
38 Throttle Control Pivot Oil 1
* Gearboxes are permanently lubricated and
sealed requiring no scheduled lubrication. Oil
level should be checked only when an oil leak
is noted. Refer to Mower Deck Gearbox
Lubrication on page 59.
** Grease every twenty-ve (25) hours.
*** Refer to Gear Axle Lubrication on page 61,
Engine Oil on page 57, Tractor PTO Gear-
box Lubrication on page 60, and Hydrostatic
Transmission Oil on page 64.
Δ
DS52 Belt-Driven Deck Only
NOTE: DC48 and DS52 Tilt-Up Decks are shown for
reference. For other Deck Lubrication Points, Refer
to Deck and Carrier Frame Illustrated Parts Manu-
al.

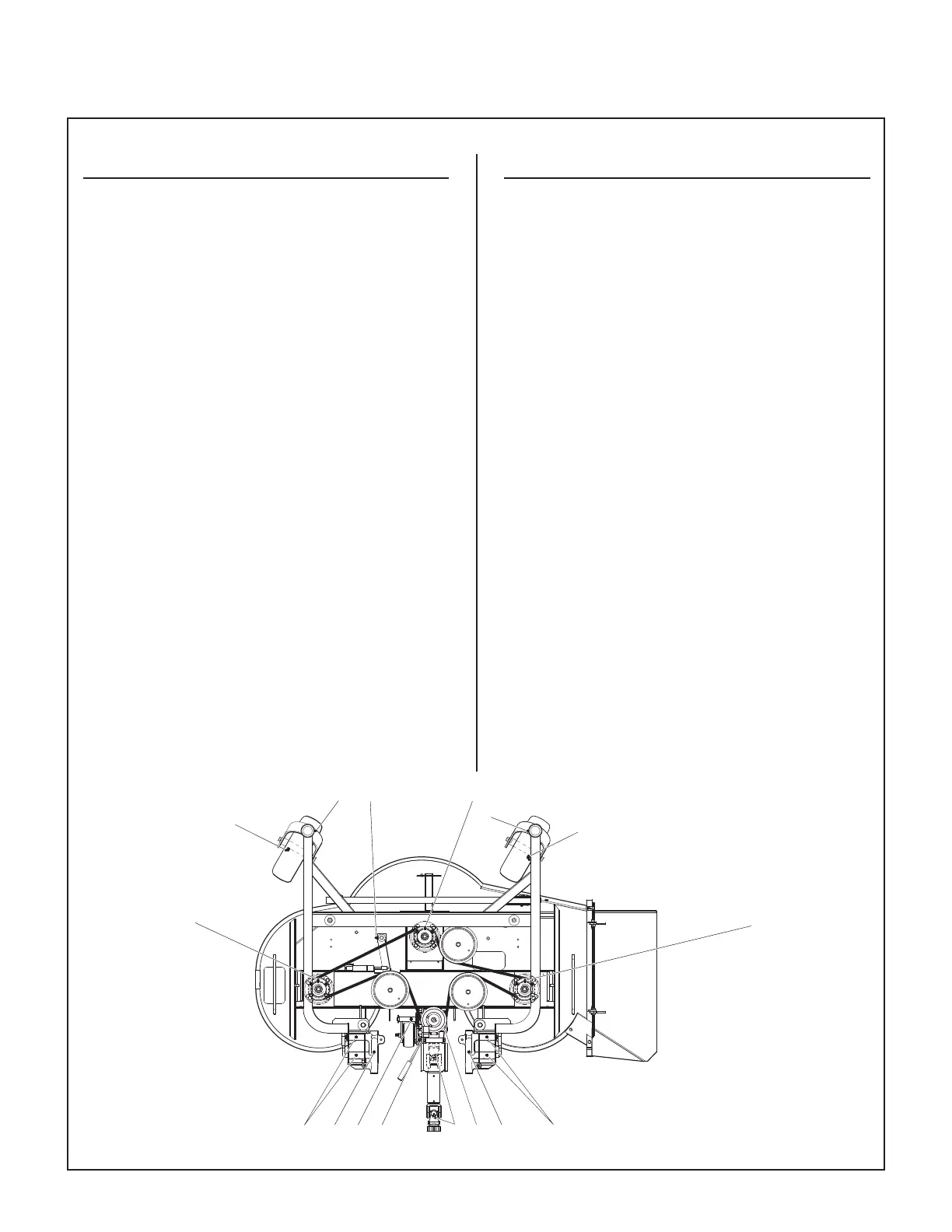

Lubrication Points for Optional Belt-Driven Decks (DS52 Shown)
3
4 895 7 6 5 4
1
3
2
1
2
3
10
