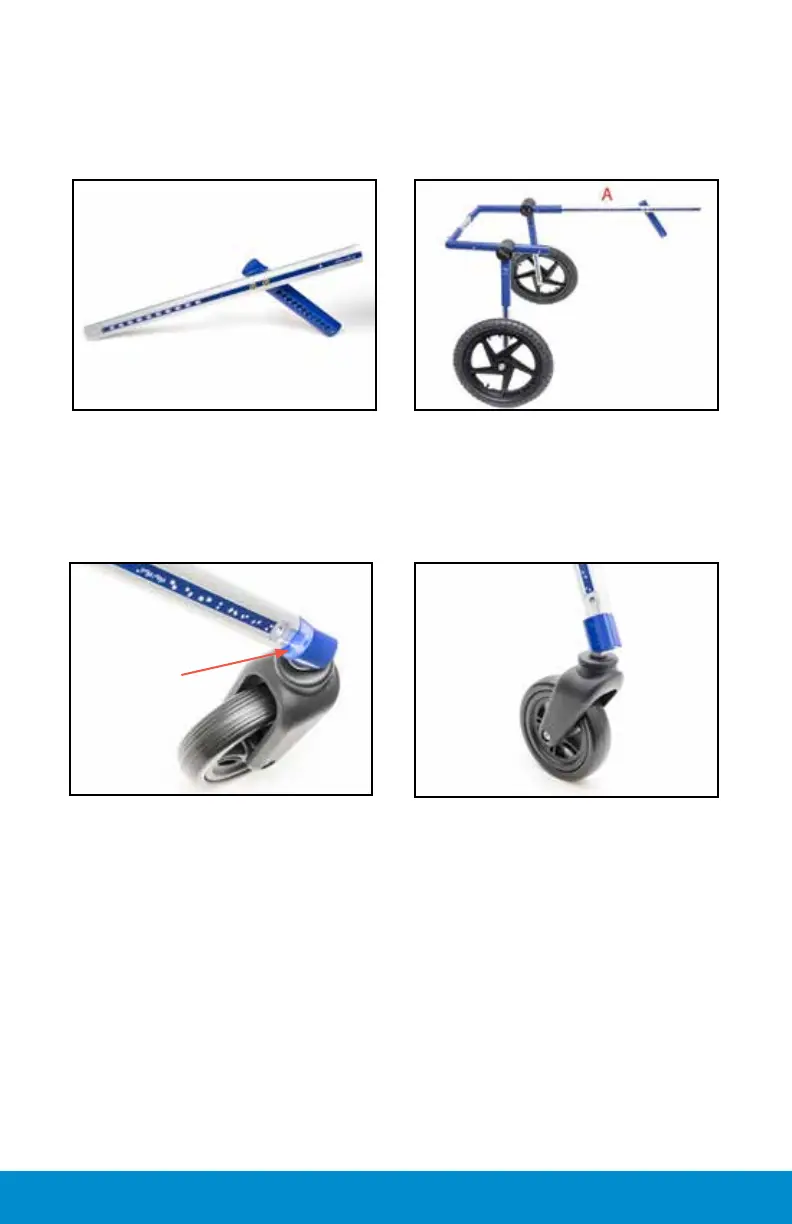

Step 3: Insert the Strut and Caster Assembly (B) into the Leg (C)
These are marked with “L” and “R.” It is very important that
they are installed on the correct sides.
Important: Notice the blue ledge on the Caster Connector.
This needs to be facing outward in order for the Front Wheel
Attachment to work properly.
Ledge
Step 2: Length Extenders
Remove the existing Length Extenders from your rear Walkin’ Wheels
®
and snap in the le and right Front Extenders (A).
Step 4: Adjust the Chin Bar (D)
Note: Use of the Chin Bar is optional. The Chin Bar adds stability and
rigidity to the Front Wheel Attachment. It needs to approximately
match the width of the back of the Walkin’ Wheels
®
. Use a Phillips head
screwdriver to remove the two screws on the Chin Bar and adjust it so
that the width of the Chin Bar is approximately the same as the width of
the back of the wheelchair. Insert screws to secure in place.
