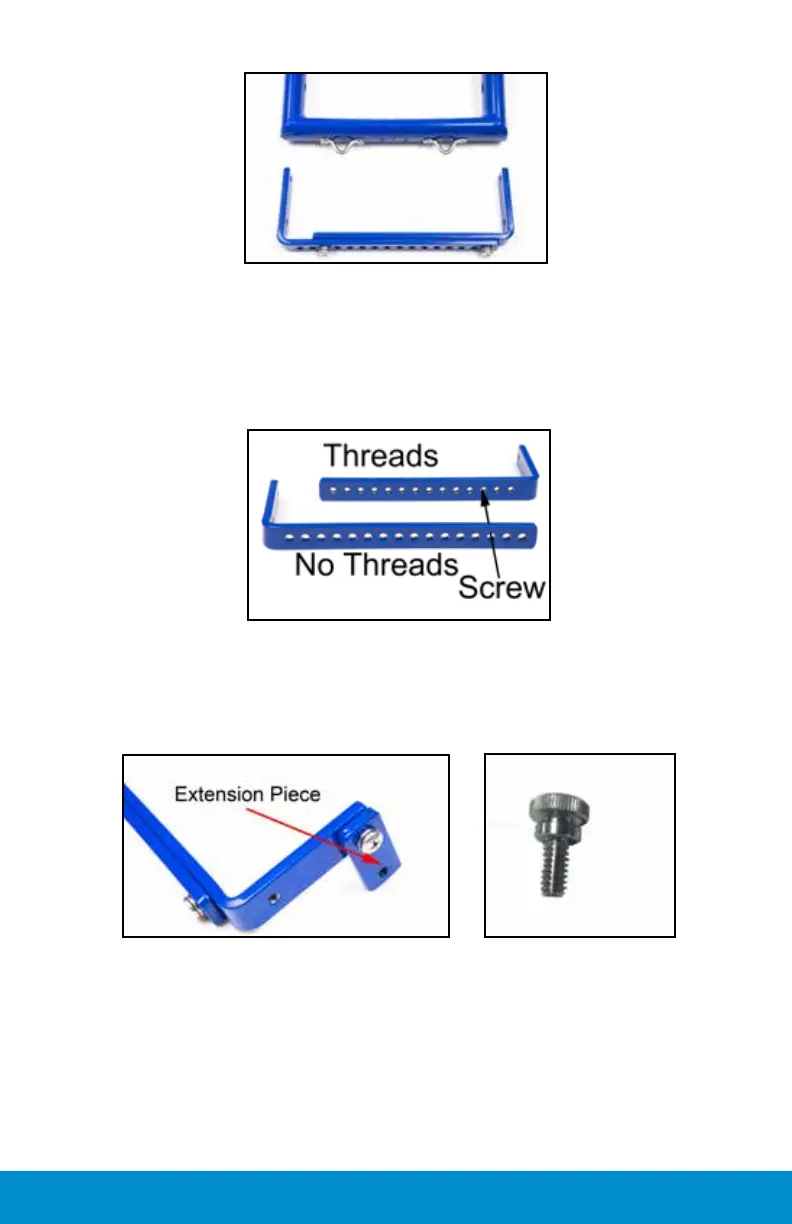

Insert the Chin Bar into the openings at the front of the Le and Right
Extenders using the thumbscrews. The Chin Bar is held on by the two
Chin Bar Screws (F). Put the Chin Bar Comfort Cover (G) on the Chin
Bar. Chin Bar is attached aer the dog is in the wheelchair using the
thumb screws through the metal extenders.
The Chin Bar attachment only has threads on one side of the bar.
You will notice that the bar with the large holes has no thread.
That is the side the screw needs to feed through.
Attach the extension piece to the outside of the Chin Bar using the
included screws and washers.
Thumb
Screw
