When installing the Wallbox in Power Sharing, the location is important to take into account.
The Power Sharing system includes two Terminating (T) chargers and the rest of Non-
Terminating (NT) chargers as shown in the image.
Each charger includes an electric element (resistor) that defines wether it is T or NT:
• Copper: The way to turn it from NT to T is to change the switch position it has inside.
• Commander or Pulsar: There’s an specific order for connecting Commander or Pulsar,
which is pointed in the proper charger as NT or T.
Once the location is clear, the charging station can be installed according to its delivered
installation manual.

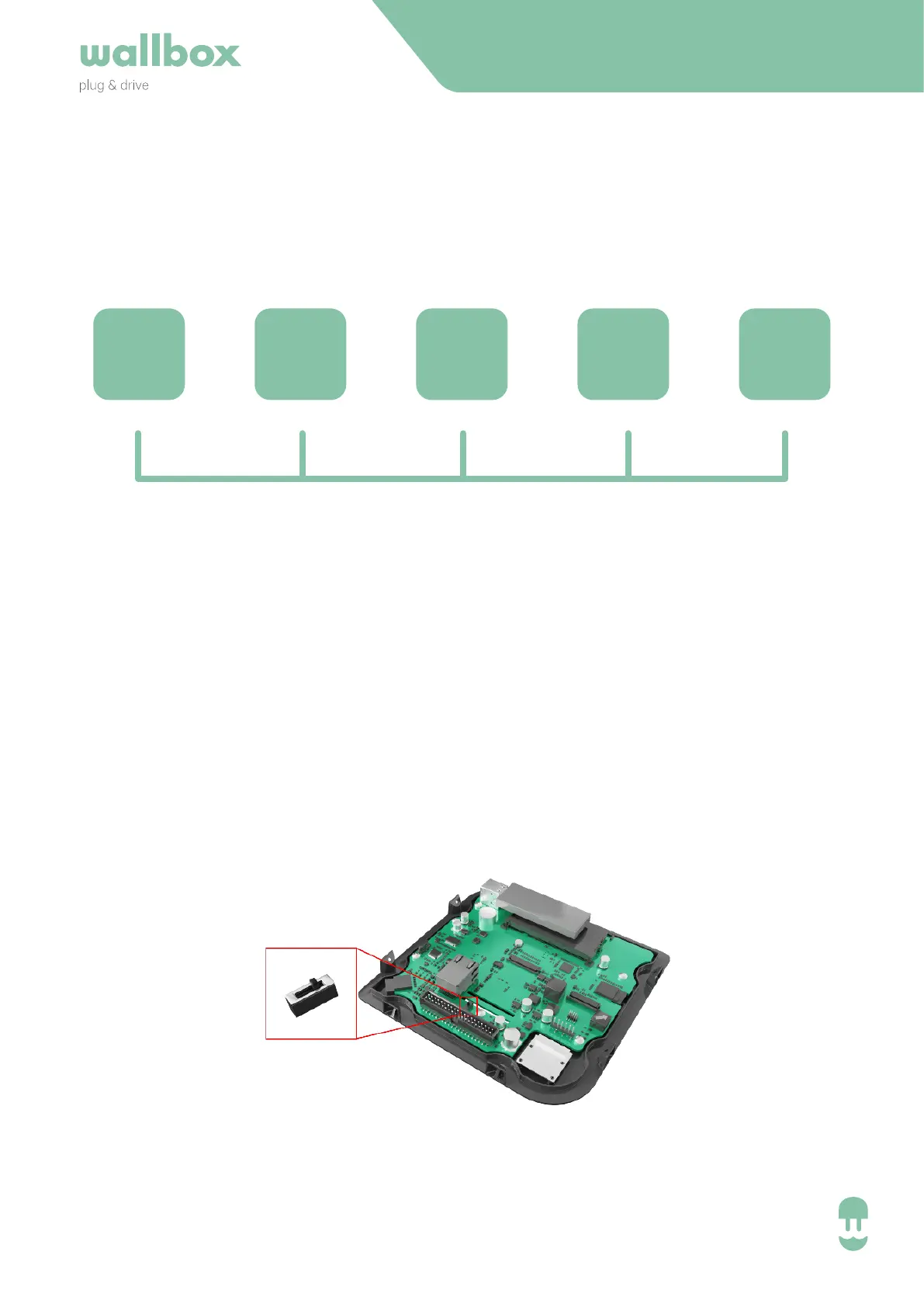

2.1 Positioning in the System (T/NT-Chargers)
T NT NT NT T
EN - V2.0 7
COPPER Terminating/Non-Terminating Switch
INSTALLATION GUIDE
