EN - V2.0 8

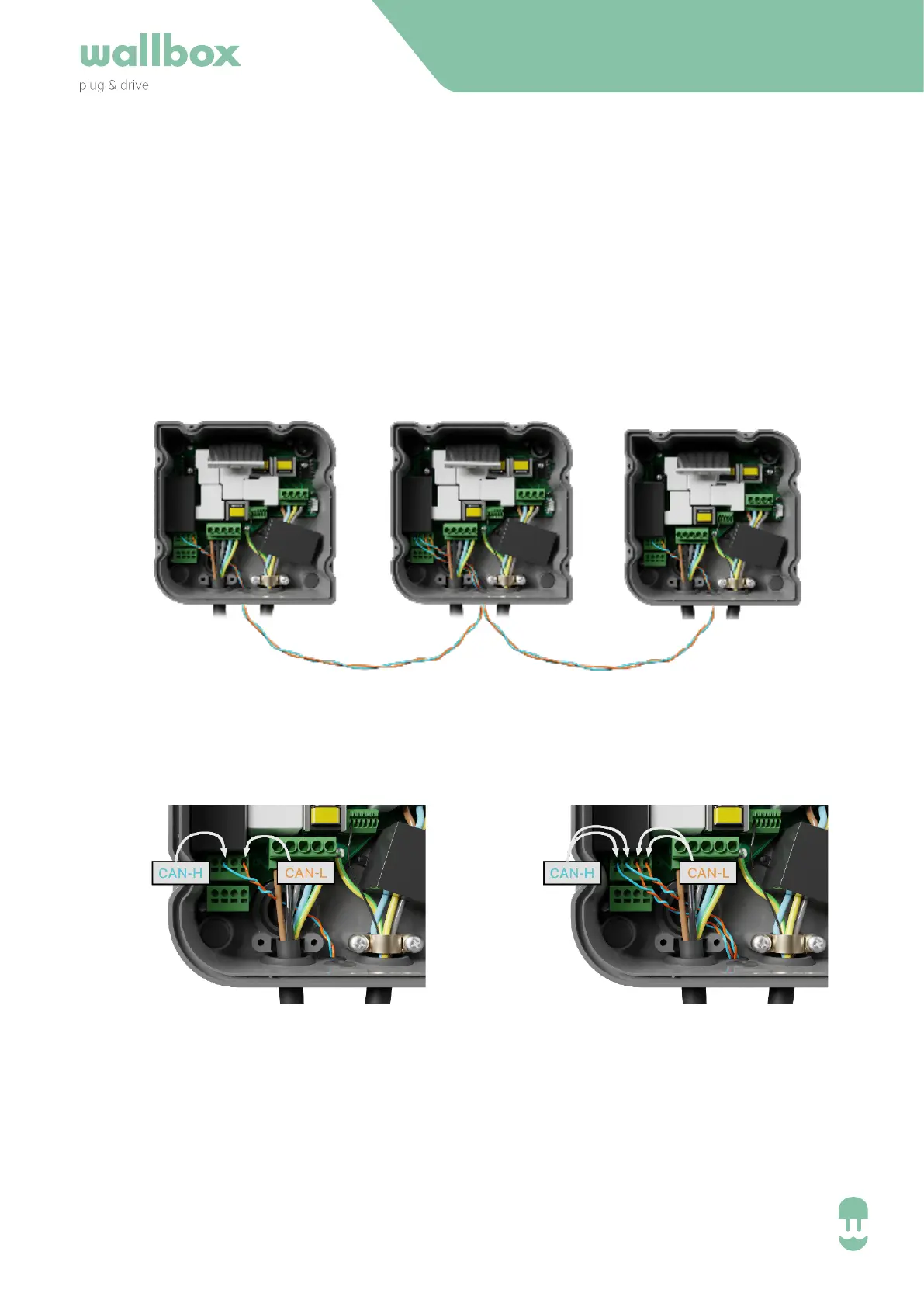

• The chargers communicate through a cabling system that connects the chargers to the
ones next to it.
• The cabling consists of a CAN-low (CAN-L) and a CAN-high (CAN-H).
• We recommend to use the following cable-type: Ethernet Class 5E no shield, 1 pair.
• A total maximum length of 250 m can be installed.
2.2 CAN Cabling (CAN-H/-L)
INSTALLATION GUIDE
T TNT
Copper has two slots for input and output cabling so the conjunction is done inside the char-
ger.
2.2.1 Instalation: Cabling (Copper)
Copper NT connectionCopper T connection
• CAN-H must be connected to CAN-H
• CAN-L must be connected to CAN-L
To Next Page
