Wallbox Supernova - Status Lights

18 19
L1
L2
L3
L4
L1
L2
L3
N
PE
PE
4.
Unpacking
TRANSPORT AND UNPACKING
3.

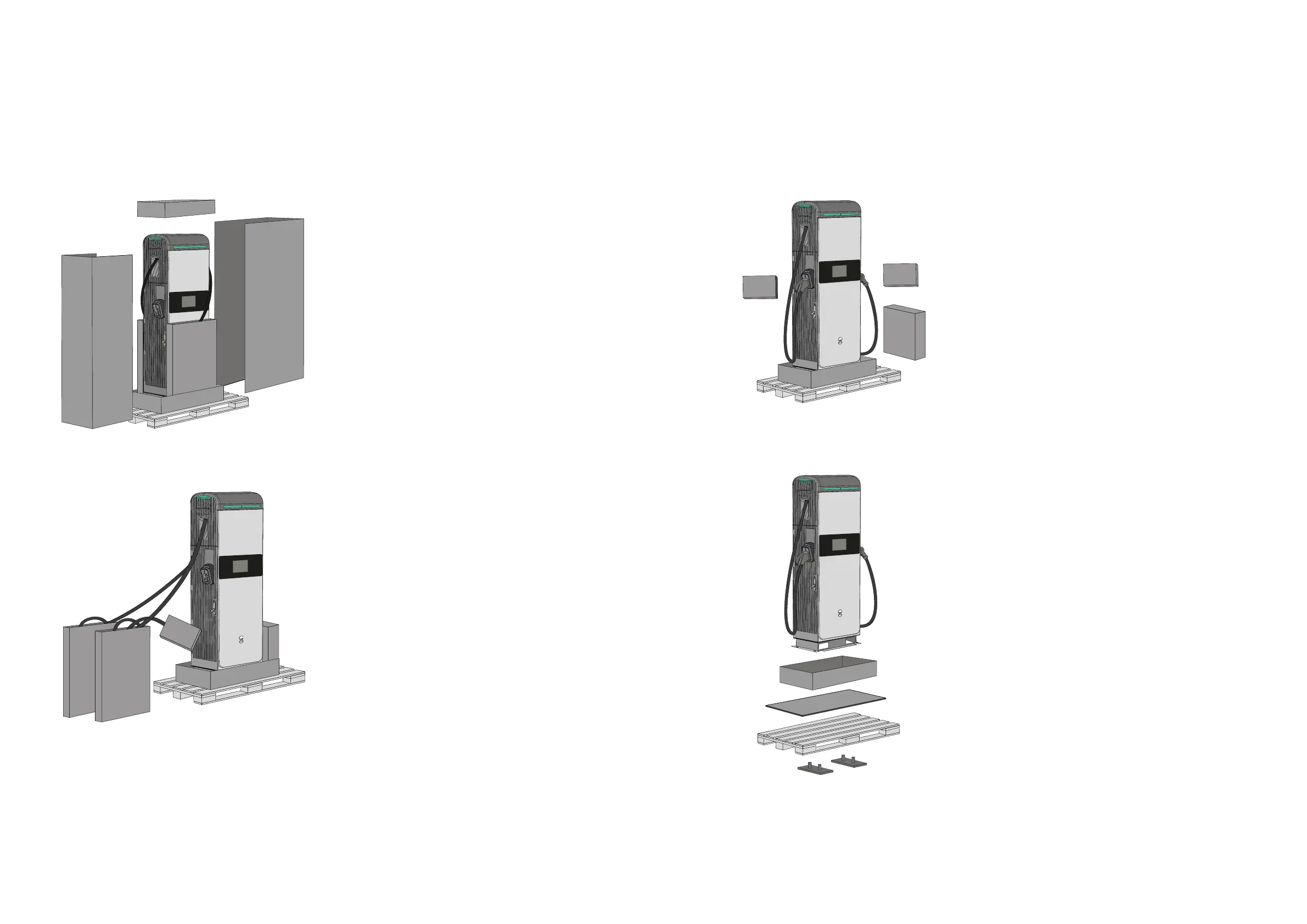

Remove the side parts of the packaging to
take out the internal top cover.
Take out the hoses from the boxes placed
in front and in the back of the charger.
L1
L2
L3
L4
L1
L2
L3
N
PE
PE
Unpacking
TRANSPORT AND UNPACKING
5.
L1
L2
L3
L4
L1
L2
L3
N
PE
PE
Unpack the EV guns and plug them in the
holsters. Then, unpack the installation kit.
6.
Carefully lift the charger with a forklift or
crane before unscrewing the four M12 nuts
and take out the two plates at the bottom
of the pallet.
IMPORTANT
Check the Civil Work section
for further instructions.
L1
L2
L3
L4
L1
L2
L3
N
PE
PE
