Inside the Box
GETTING STARTED

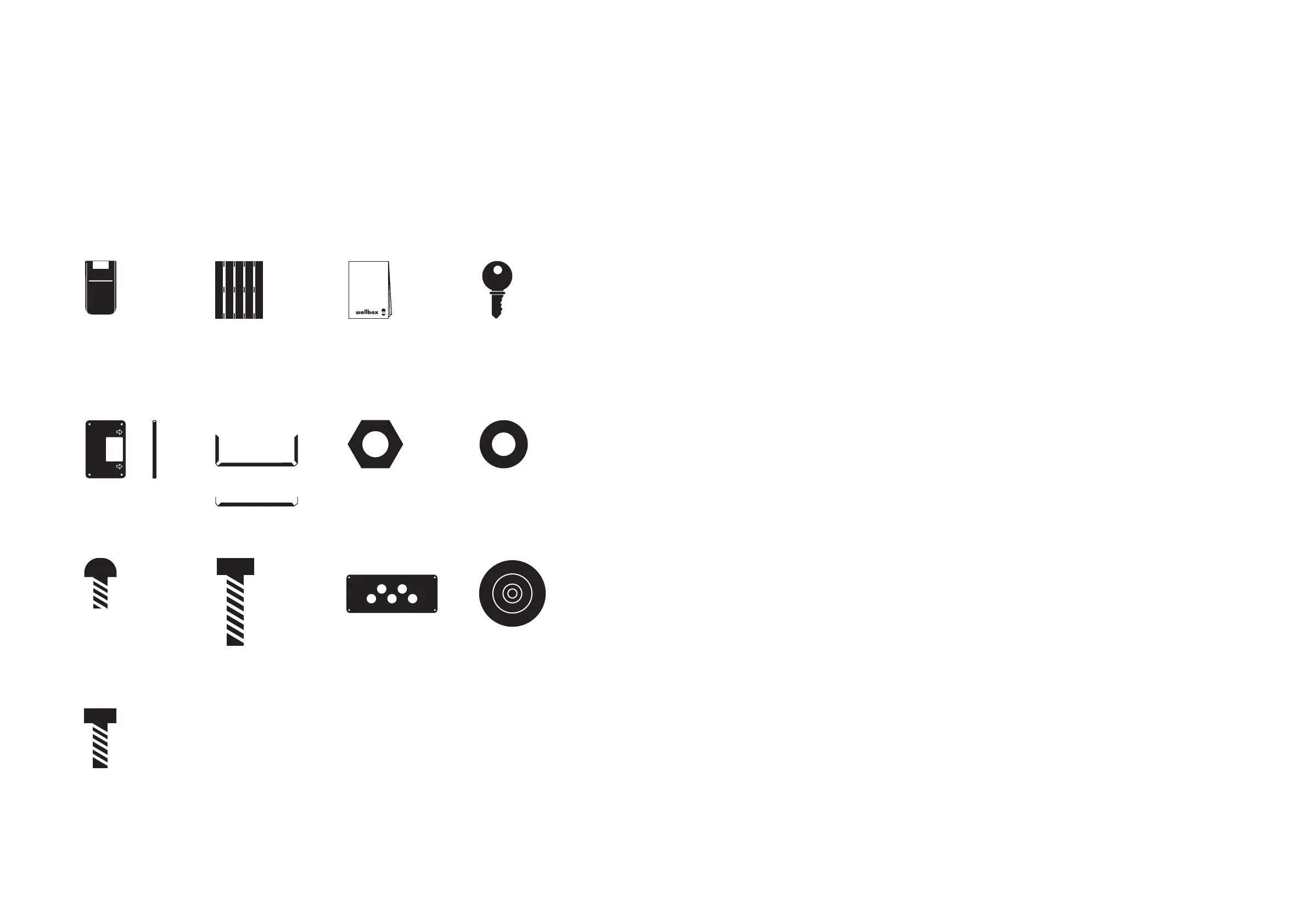

Materials
A.
Charging Point
C.
Installation manual
Supernova
Installation
Guide
M.
Screws M5x16
J.
Screws M12 x16
x6
x4
B.
EU pallet
D.
Antivandalic Key
E.
2 lavel plates
+ 4 threared bars
x4x2
F.
Foot coverback
+ front
G.
Nuts M16
x16
I.
Screws M5 x10
x7
H.
Washer M16
x2
K.
Support Entry Plate
L.
Membrane Entry Plate
x5
Required Tools
GETTING STARTED
The following tools required for the installation of Supernova are
recommended for the Supernovas installation (not provided):
• 2x Spanner (size 24 mm) for M16 nuts
• Safety Torx screwdriver (size T30) for M6 screws
• Socket wrench (size 19) for M12 hexagonal screw.
• Optionally: wrench or spanner (size 19).
• Allen key for DIN 912 M5 screws.
• Hexagon socket wrench for M8
• Bolts M16 50 cm.
