Wallbox Supernova - Product Description and Site Preparation; External View; Internal View

20 21
L1
L2
L3
L4
L1
L2
L3
N
PE
PE

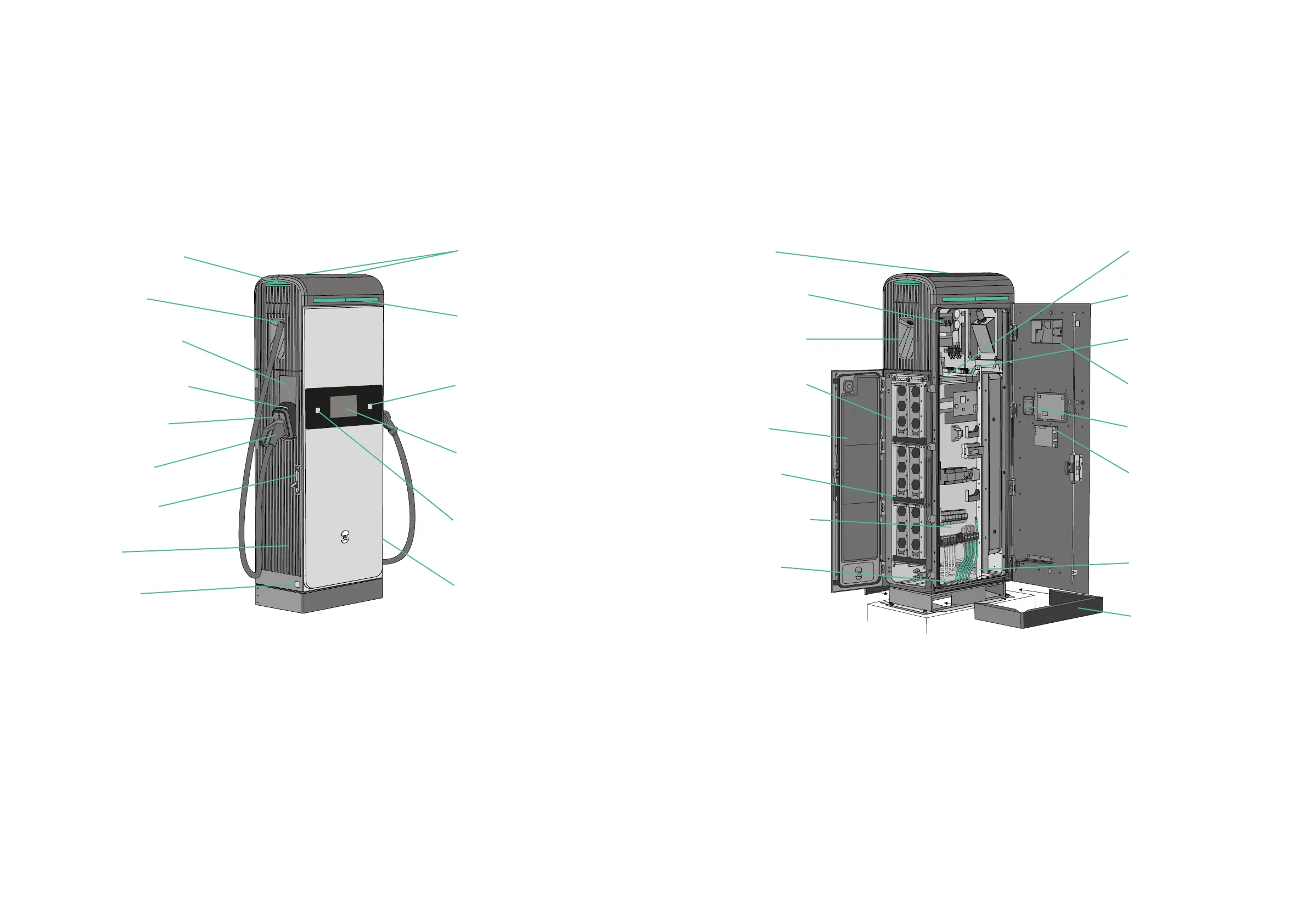

External view
PRODUCT DESCRIPTION AND SITE PREPARATION
Charger Ambient Light
Threads for eye bolts
EV Cable 1 Exit*
Charger Status Light
EV Cable 1 Instrucions*
RFID reader
EV Cable 1 Status Light*
10” Touch Display
EV Cable 1 Holster*
3-in-1 credit card reader
(optional)
EV Cable 1 Plug*
EV Air outtake
Access Key-Lock
Air intake
Product Label
*Equivalet for EV Cable 2 is located on the other side.
The images below show the dierent connections of the divide from the outside.
Internal view
PRODUCT DESCRIPTION AND SITE PREPARATION
The image below shows the internal view of Supernova Fast Charging station.
Top Cover Electrical Panel B
Electricsl Panel C Front door
Side Cover Panel Backplane
Rear Cover Panel Router
Left Door RFID
Power Rack HDMI & screen
Electrical Panel A
Microswitch FD
Foot cover
Mains entry
L1
L2
L3
N
L1
L2
L3
N
PE
PE
