Wallbox Supernova - Page 21

40 41
Final Steps
FINAL MECHANICAL PREPARATION
L1
L2
L3
N
L1
L2
L3
N
PE
PE
1.
2.
3.

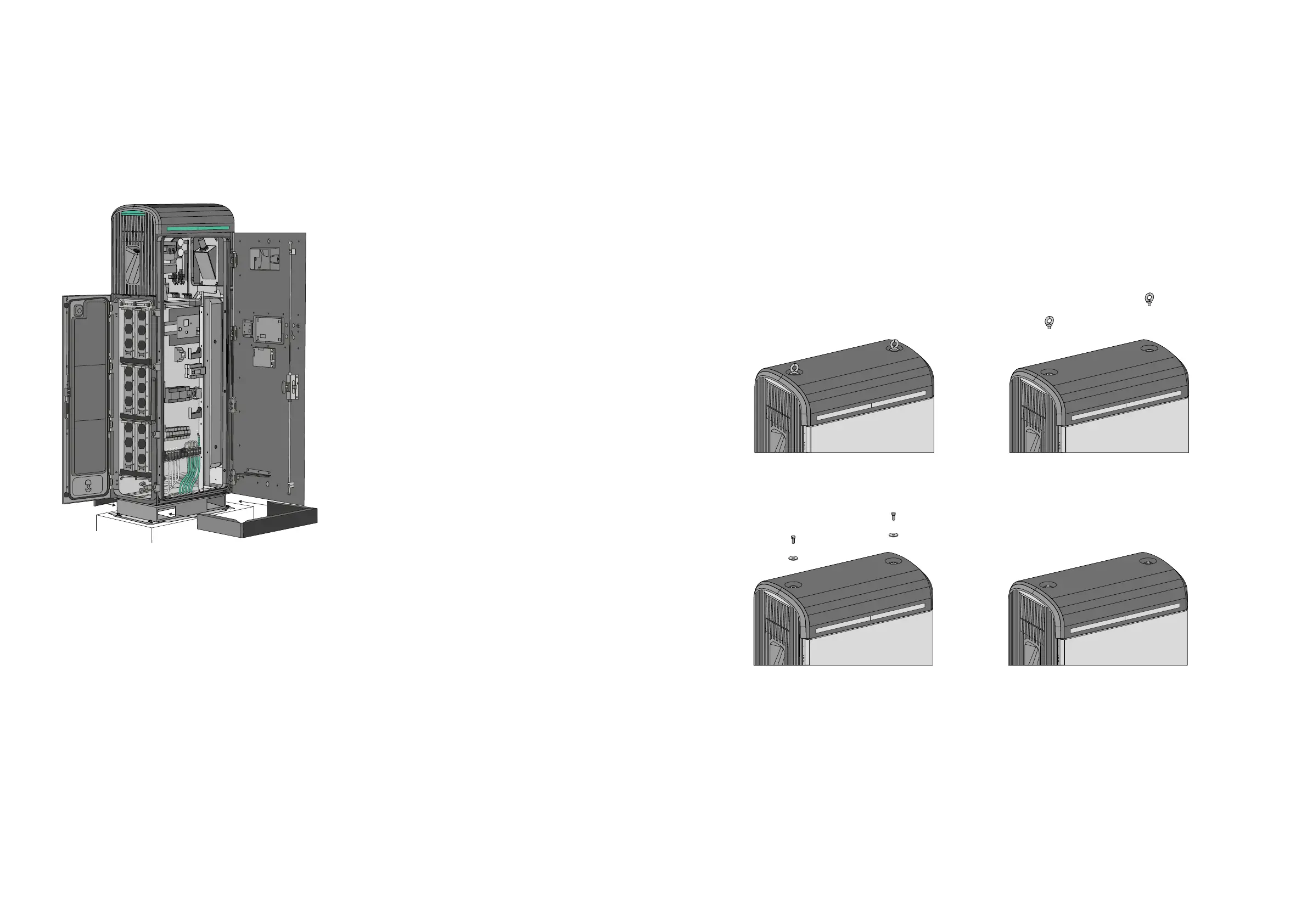

Fix the Foot Cover Front to the structure
by screwing 7 screws (DIN 912 M5).
Fix the Foot Cover Front with the Foot
Cover Back by screwing 6 external screws
on the sides of the Foot Covers (Safety
Torx for M6).
REMEMBER
The concrete shall never exceed the
upper level plate to ensure that Supernova
anchors on a flat surface.
Close all doors carefully as specified
in the Doors and Key section of this
document.
Final Steps
FINAL MECHANICAL PREPARATION
4.
In case you used a crane, remove the eye bolts from the top
of Supernova and replace them with 2 top cover screws.
A.
C.
B.
D.
