Wallenstein BXMT3213 - Machine Components

4.5 Machine Components
01915
10
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

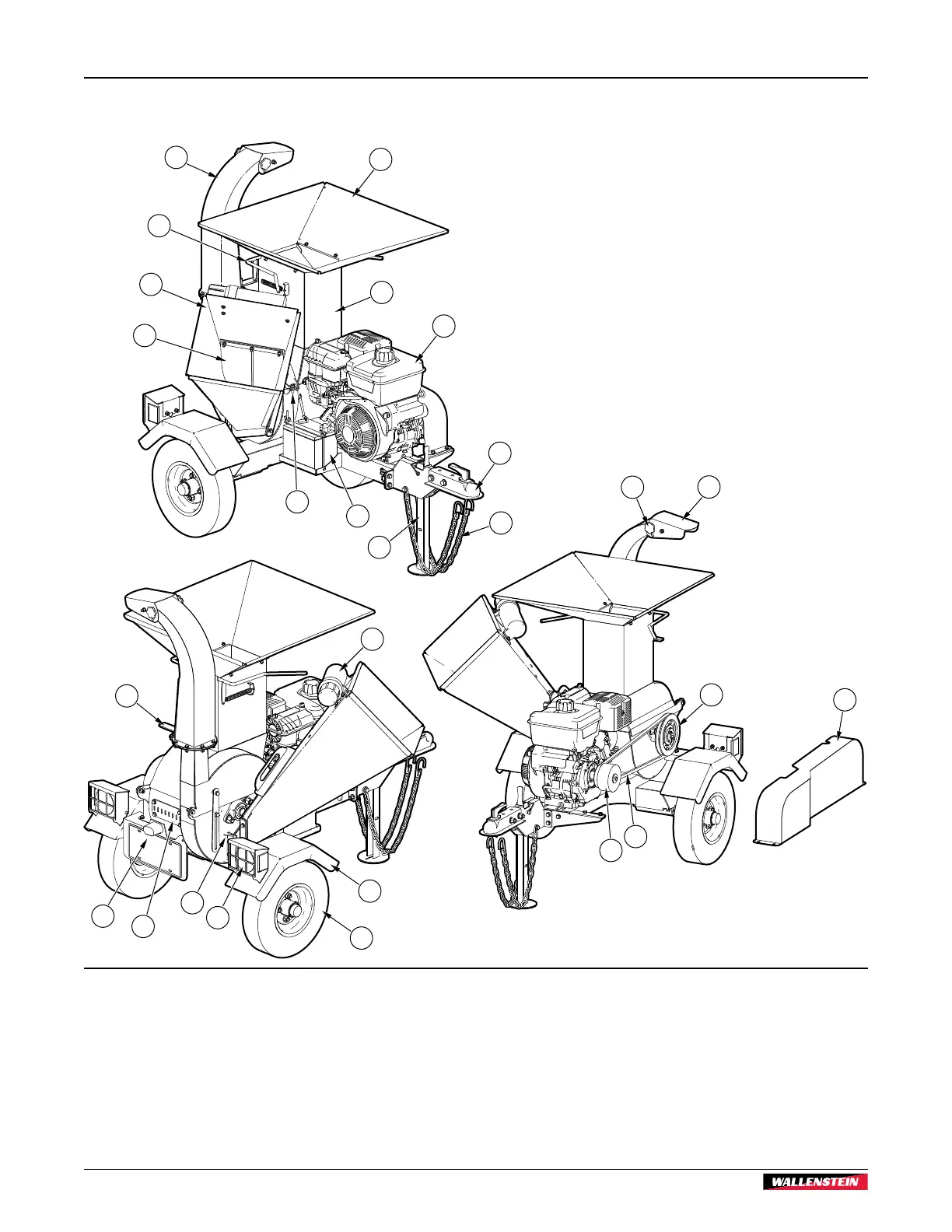

Fig. 5 – Machine components
1. Feed hopper flap
2. Chipper feed hopper
3. Shredder feed-gate lever
4. Discharge chute
5. Shredder feed hopper
6. Upper housing
7. Engine
8. Ball-mount hitch coupler
9. Safety chains
10. Jack stand
11. Battery (250 cc)
12. Upper-housing retainer bolt
13. Hood-deflector knob
14. Hood deflector
15. Rotor sheave
16. Belt guard
17. Drive belt
18. Engine clutch
19. Operator's Manual tube
20. Fender (1 of 2)
21. Tires, 4.80-8 LRB SportTrail 4on4
(1 of 2)
22. Tail light, stop and turn (1 of 2)
23. Ledger knife
24. Chop block
25. License plate bracket and light
26. Discharge-chute handle
Familiarization
BXMT3213
Trailer Chipper / Shredder
18
