6.11 Clear a Jam
WARNING!
Never reach into the feed hopper. Doing so risks
hands getting caught. Use a stick or branch to
push in any material that does not move on its
own.
If jammed, stop the engine, wait for the rotor to
stop, then clear the jam.
W004
CAUTION!
Avoid reaching into rotor compartment. Rotor
chipper blades are very sharp. If reaching inside
is necessary, use extreme care.
W003
The machine is designed to handle a wide range of materials.
However, in the event that material gets lodged in the machine,
follow this procedure to clear the jam:
1. Stop the machine.
For instructions, see Stop the Machine on page 27.
2. Wait for all moving parts to stop.
3. Pull all of the material out of the two hoppers.
4. Make sure that nothing is jammed or wedged between the
input opening and the rotor.
5. Pull all of the material out of the discharge hood.
Use a stick to poke any jammed material loose. Make sure
that the discharge chute is clear.
6. Try to operate the machine to see if the jam is cleared.
If the machine does not operate, the jammed material
must be removed from inside the machine.
Remove an internal jam:
1. Set the machine to a safe condition.
For instructions, see Safe Condition on page 9.
2. Remove the upper-housing retainer bolt, and then open the
upper housing.

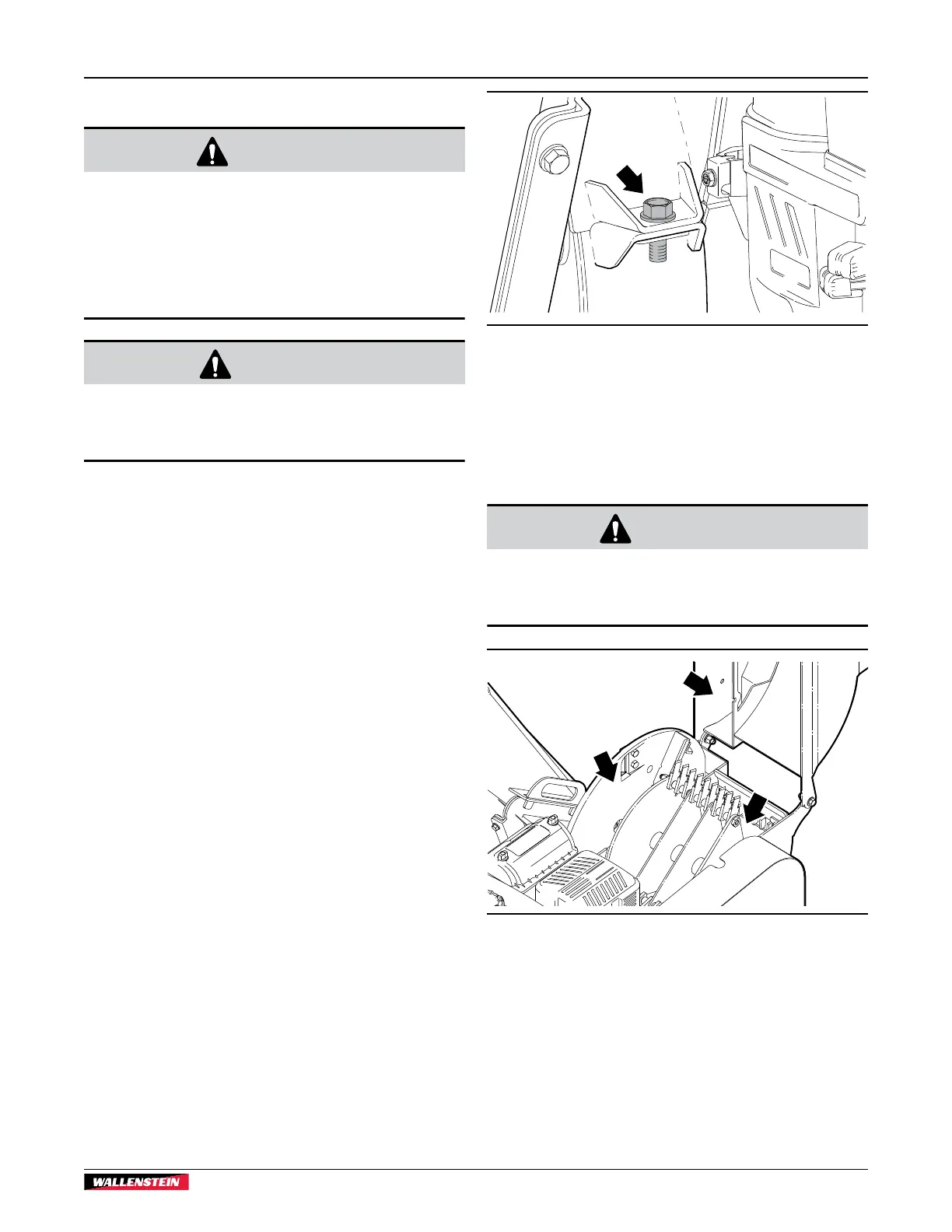

Fig. 20 – Upper-rotor-housing bolt
3. Use a tool or stick to remove the jammed material from
inside the chipper rotor and shredder compartment.
4. Clean out the discharge area rotor paddles.
5. Turn the rotor by hand to make sure that there is nothing
jammed between the rotor and ledger knife.
WARNING!
Machine shown with shields removed for
illustrative purposes only. Never operate
machine with shields removed.
W001
Fig. 21 – Clear the areas inside the machine
6. After the jam is cleared, close the upper housing.
7. Install the upper-housing retainer bolt. See Fig. 20.
8. Make sure that everyone is clear of the machine and
discharge area, and then start the machine.
BXMT3213
