6.6 Electrical and Water Connections
From the rear side of the wall:
6.6.1 Electrical connection from the wall mounted fused spur switch to the Thrii:
All electrical work must be carried out by a qualified electrician and should be installed in
accordance with the current Nationally Approved Regulations
Complete the electrical connection by fitting the plug into the socket on the rear of the engine.
Ensure the cable is a suitable length so that the door can fully open without catching or fouling.
6.6.2 Mains water connection from support frame to the engine:
Using the flexible water hose provided take the loose end of the hose, which is attached to the
engine, and attach it to the water inlet connection mounted on the upper bracket part of the
support frame See Fig. 16. With all services connected to the Thrii, open and close the fascia
assembly to ensure that the wiring and piping feeds move without snagging or kinking. Ensure
the waste spigot from the wash bowl smoothly engages with waste outlet on the frame bracket.

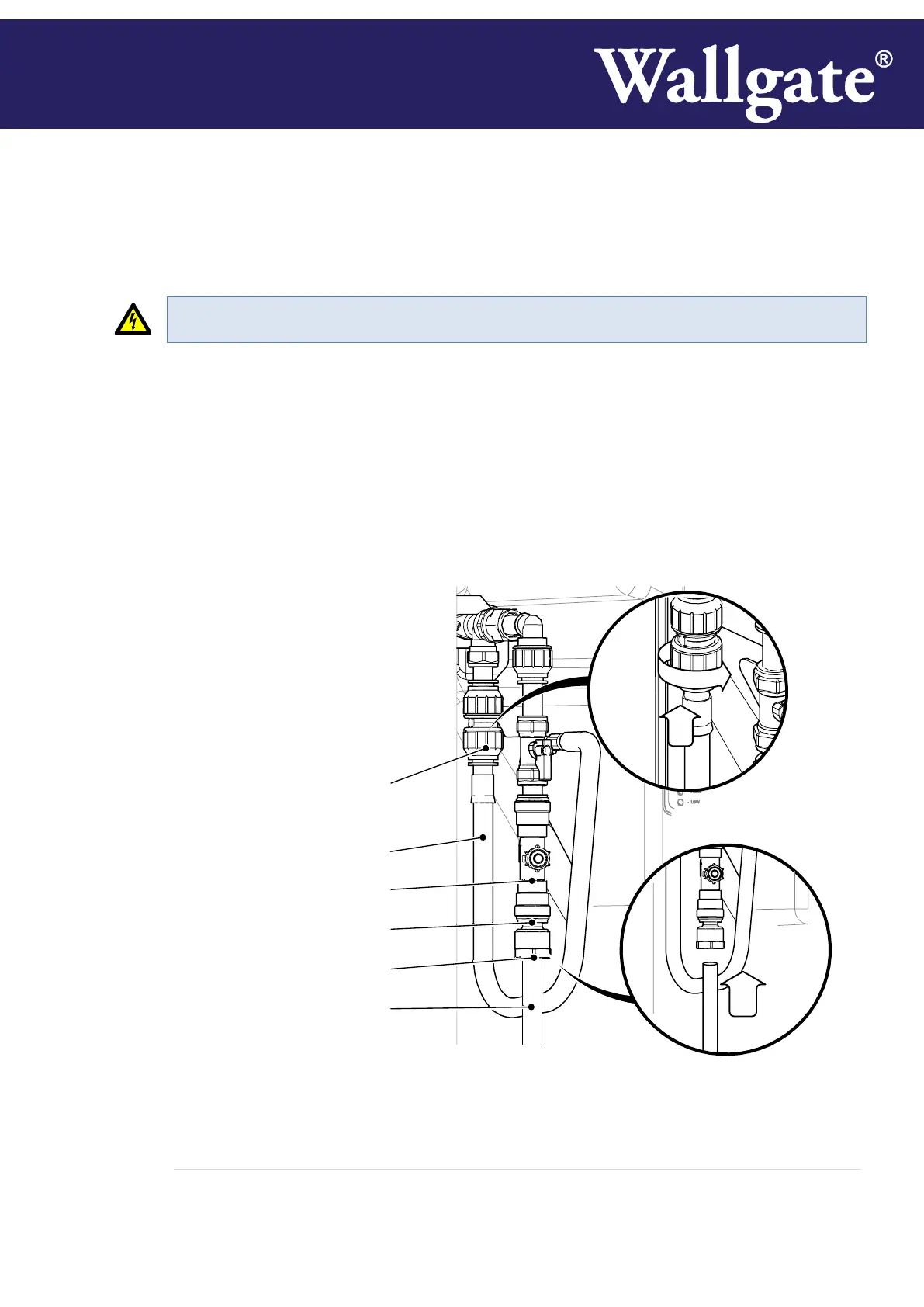

Fig.16 Engine water supply hose connection to water connector on wall frame
Push-fit hose connector
with twist-lock collar
Flexible hose
Double check valve
Ø15mm Connector
½“ BSP FM Adapter (Optional - UK)
Cold Water Supply
