18 | P a g e
Wallgate Thrii®
PRODUCT MANUAL Issue 5_3
ORIGINAL INSTRUCTIONS
© 2013 Wallgate Ltd.
6.5 Engine installation
1. Remove the engine cover, retaining the engine cover fixing.
2. Remove the securing pin out through the side from the base of the engine Fig. 12

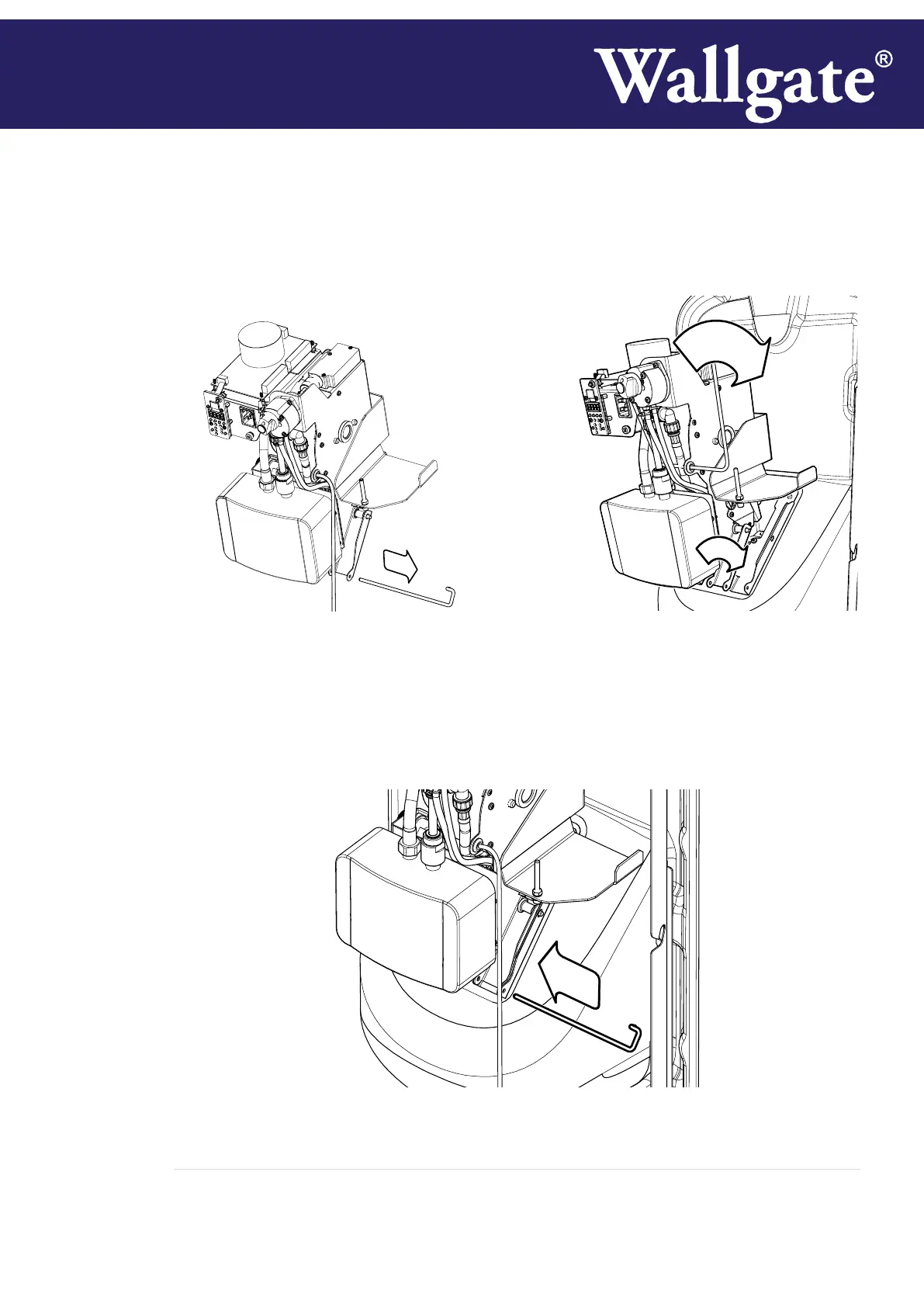

Fig.12 Securing pin removal Fig. 13 Fitting the engine
3. Present the engine to the engine mounting plate on the back of the fascia locating the dispensing
nozzle into the aperture provided. Align the engine on the plate and click into place Fig. 13
4. Replace the securing pin through both mounting plates and engine ensuring it passes fully
through this assembly Fig. 14
Fig.14 Fitting the securing pin
