6.3 WLVCM Overall System
Figure 4 shows a WLVCM complete system.
The following components are required for operating the freely programmable valve control unit:
Components:
• Power pack for voltage supply (24 VDC)
• Walther Logic Valve Controller Mini (WLVCM)
• Electro-pneumatic spray, dosing or pulse valve with coil cable
• Optional: a hotplate which is compatible with the valve
A Windows PC with USB connecting cable is required for parametering.

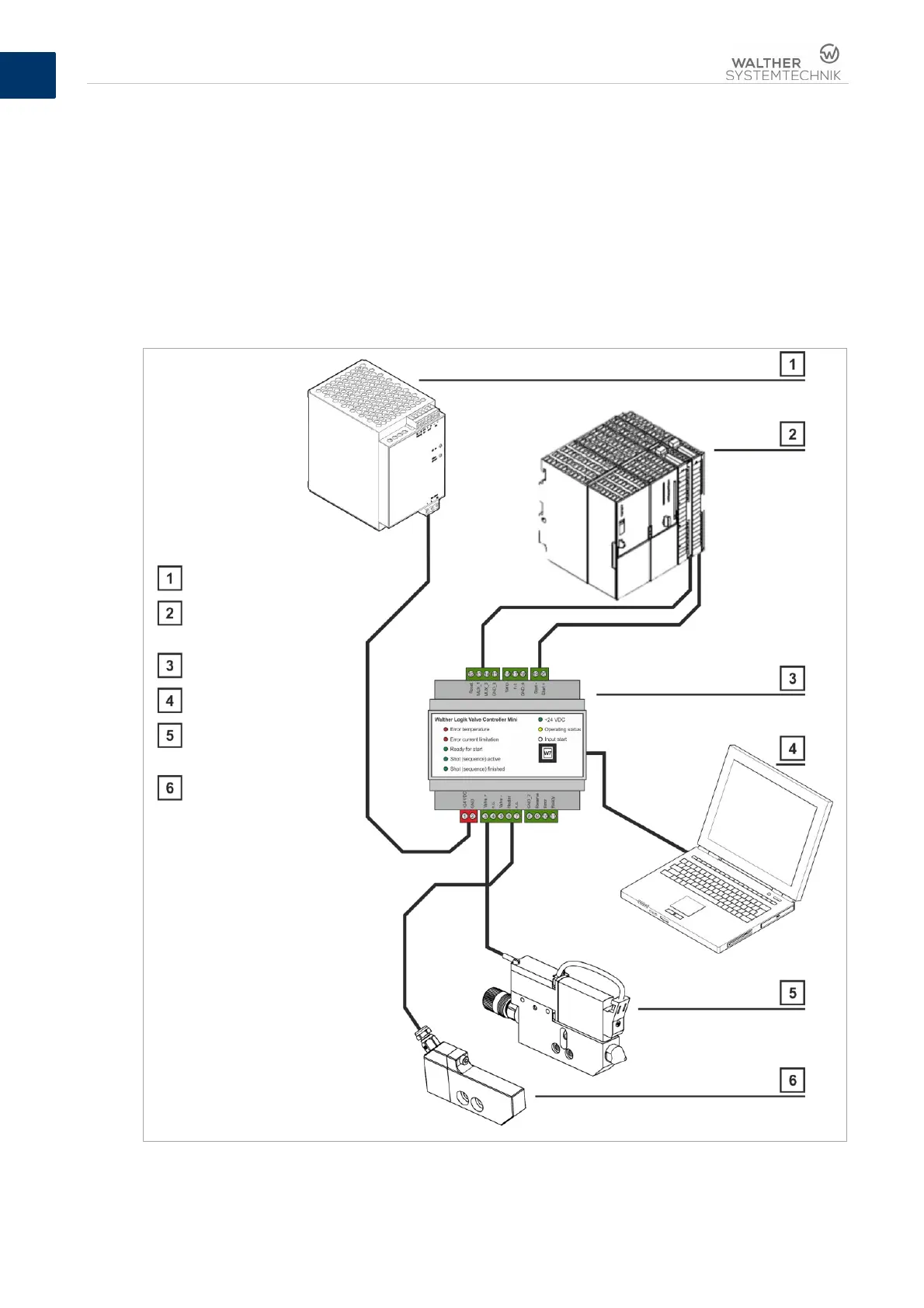

Figure 5 – Components of a WLVCM overall system
Power Pack
Higher
-level PLC
WLVCM
Windows
-PC
Electro
-pneumatic
spray, dosing or pulse
valve with coil cable
Compatible Heating
plate (optional)
