Walther MPP-03-PRO - 10 Appendix; Dimensioned Drawing

Rev. 1.6
Assembly Instructions - Micro Point Pulse Valve MPP-03-PRO
Page 14 of 22
Walther Systemtechnik GmbH – D 76726 Germersheim
Telefon: +49 (0)7274-7022-0 Telefax: +49 (0)7274-7022-91
http://www.walther-2000.de – info@walther-2000.de
10 Appendix

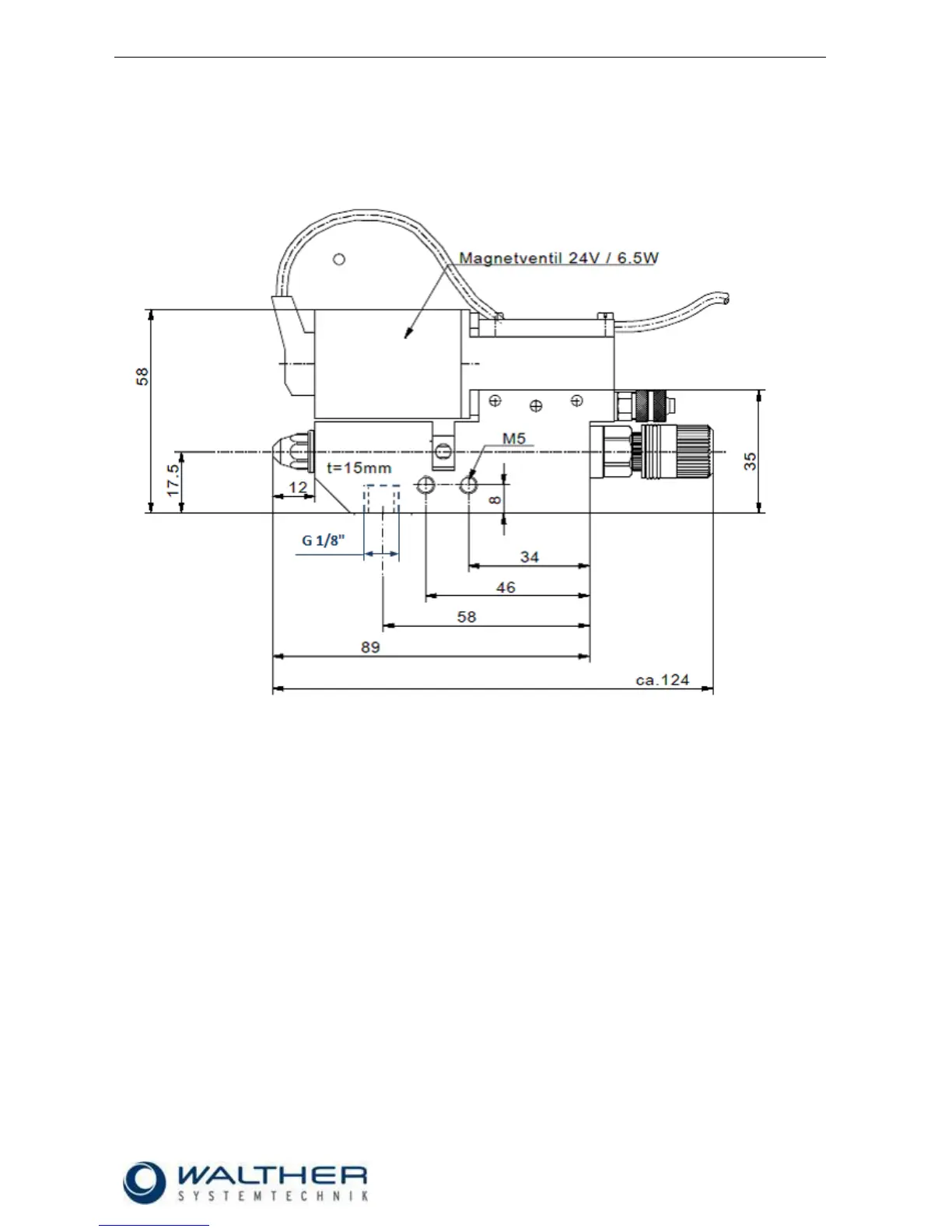

10.1 Dimensioned Drawing
