Walther MPP-03-PRO - Center Hole for Centering Sleeve 97320602

Rev. 1.6
Assembly Instructions - Micro Point Pulse Valve MPP-03-PRO
Page 19 of 22
Walther Systemtechnik GmbH – D 76726 Germersheim
Telefon: +49 (0)7274-7022-0 Telefax: +49 (0)7274-7022-91
http://www.walther-2000.de – info@walther-2000.de
WLS-MPP03-V-LR-
01Z001

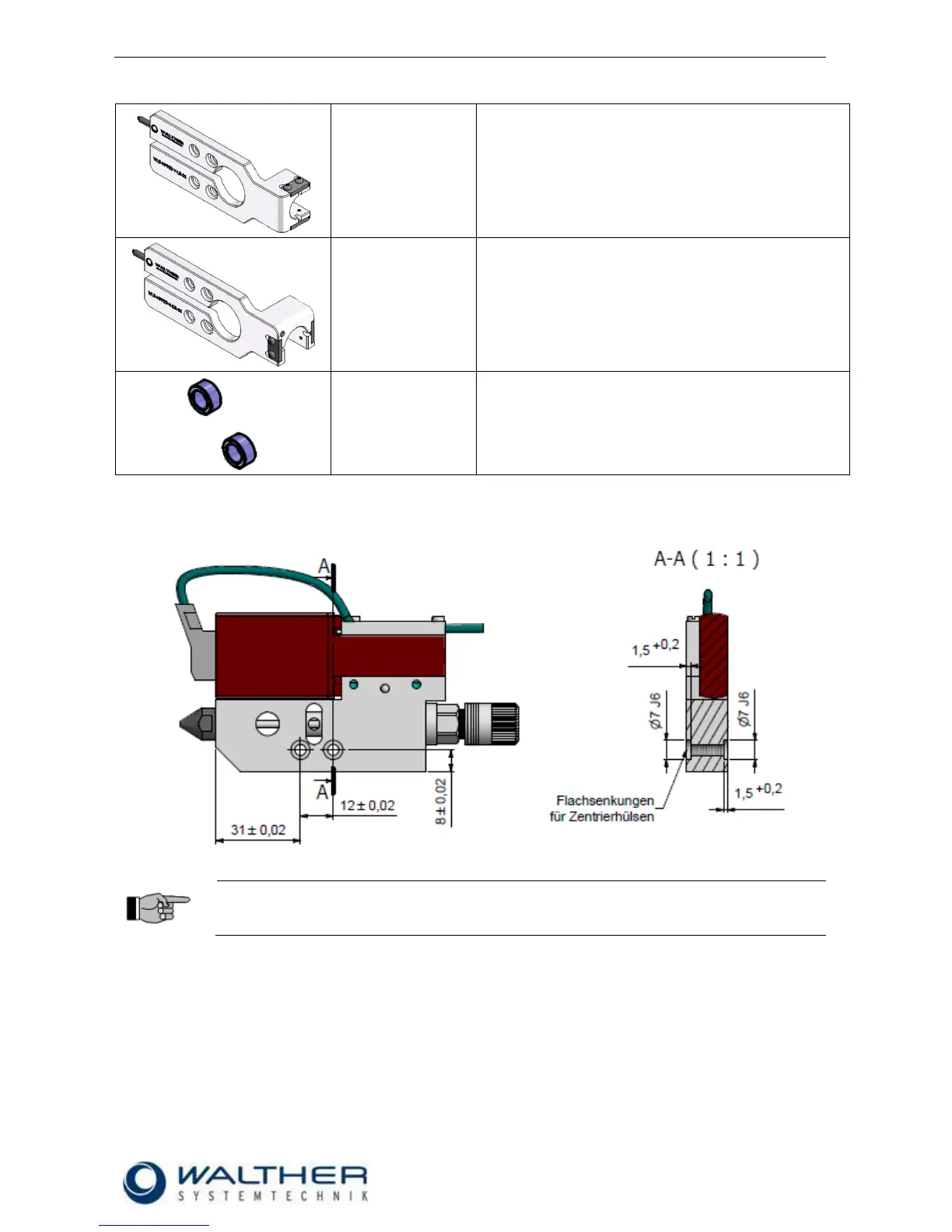

Holder with fiber optic cables
for WLS-MPP03-V-LR-01
including 2 each centering sleeves (97320602)
Please note!! The use of Walther Light Barriers requires
centering recesses on the valves.
WLS-MPP03-H-LR-
01Z001
Holder with fiber optic cables
for WLS-MPP03-H-LR-01
including 2 each centering sleeves (97320602)
Please note!! The use of Walther Light Barriers requires
centering recesses on the valves.
97320602
Centering sleeve for an exact positioning of the valve
10.5.1 Center hole for Centering sleeve 97320602
WICHTIG
If a Centering sleeve is retrofitted to an existing valve, the valve must be returned to us for
retrofitting of Center hole.
