10.5.2 Add-on Elements
Needle Sensor
The installation of a sensor for the raster needle is factory-made. It is integrated in the raster needle lock
(pos. 9.0 of spare parts list). As a spare part, the raster needle lock will always be delivered as a complete
unit, since the initiator is factory-adjusted and glued in.
Pos.
Description
1
Raster needle sensor
Pressure Sensor

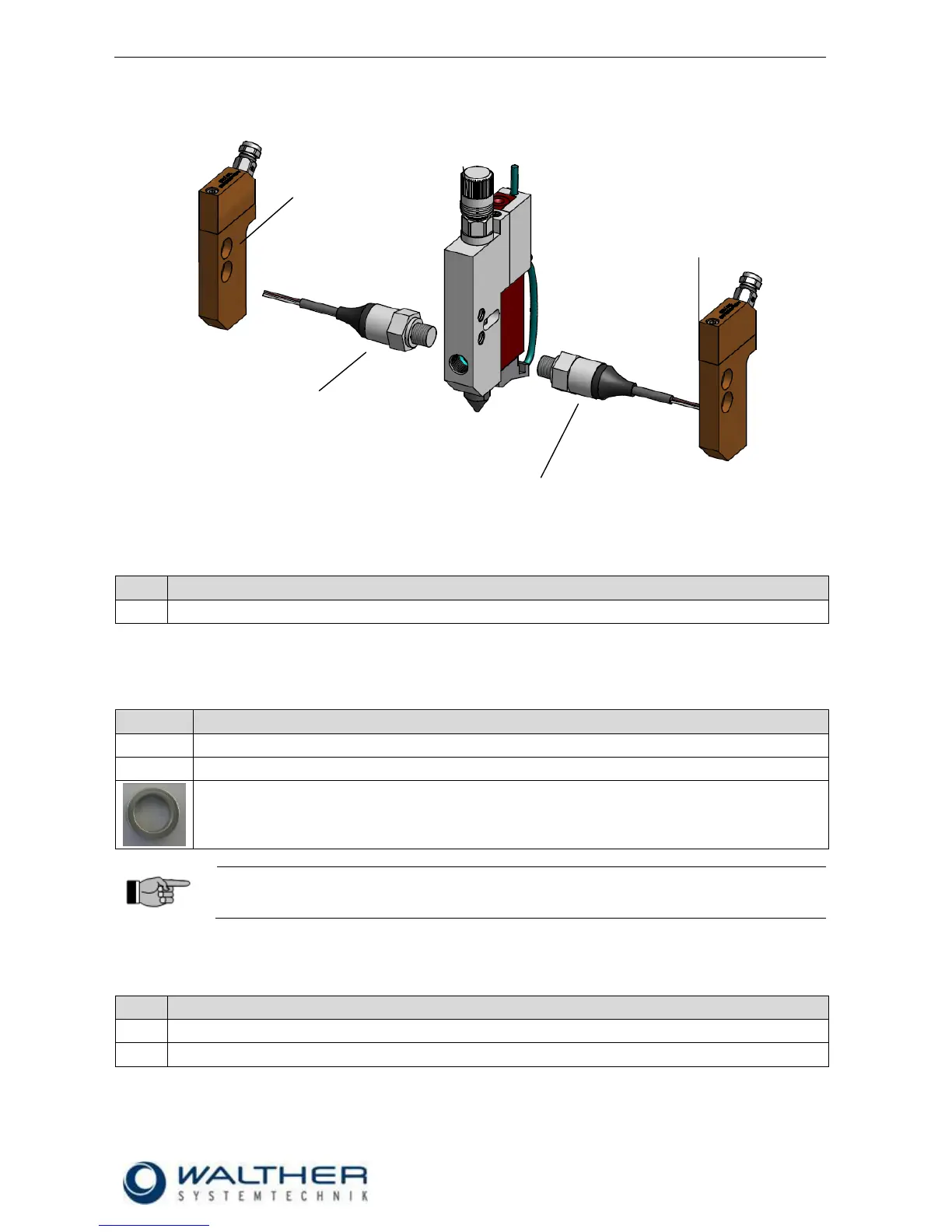

The attachment of a pressure sensor is also factory-made. Its position can optionally be on the side (left /
right). For additional information please refer to the Assembly Instructions “Pressure Sensors 97PA-21x-xxx“.
Pos.
Description
2
Pressure sensor mounted on the right of the pulse valve
3
Pressure sensor mounted on the left side of the pulse valve
Gasket ring pressure sensor
IMPORTANT
The Viton - gasket and the gasket ring, article number F490013 have to be mounted before
the actual installation!
Hotplate
The installation of a heating plate is also factory-made. Its position can optionally be on the left or on the right
side. For further information please refer to the Description “Heating and Accessories“.
Pos.
Description
5
Heating plate mounted on the right side of the pulse valve
6
Heating plate mounted on the left side of the pulse valve
5
6
2
3
1
