Chamber furniture
12
Chamber rack
Insert the rack into the sterilizer chamber, align it at the center/bottom of the chamber and push it gently
into position until it clicks.
The chamber rack is reversible and can accommodate 5 trays horizontally or 3 cassettes vertically.
If inserted in a 90° degree rotated position, the rack holds 3 trays or 3 cassettes horizontally.
Usable space in the chamber
195 x 195 x 390mm (WxHxD); equal to the volume of 15 litres.
The chamber furniture consists of the
trays
, the
tray rack
and the
steam diffuser plate.
Before touching the chamber furniture, ensure the sterilization chamber
is cold: risk of burns!
Sterility at the end of the cycle is not guaranteed if the steam diffuser plate was not correctly placed.

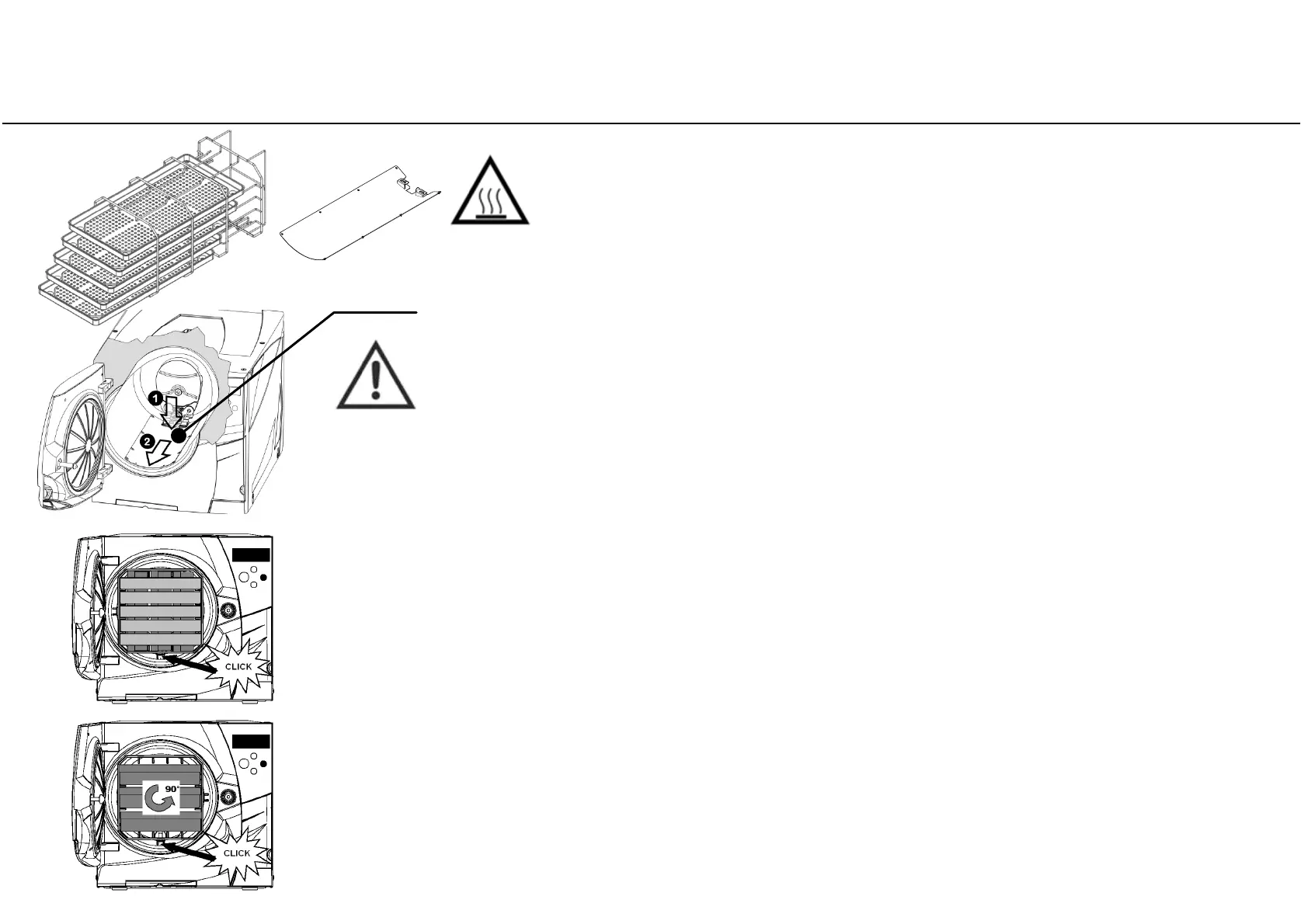

To hook
the steam diffuser plate, slide it into the chamber until it gets engaged into the end hooks.
To remove
the steam diffuser plate, press it in the center of the end edge (1) and slide it outwards (2).
Steam diffuser plate
Ensure that the steam diffuser plate is firmly hooked in its position before starting a
sterilization cycle. An improper positioning of the steam diffuser plate could result in bad
steam quality and could impair the sterilization process, with risk of non sterile load and
cross infection.
