11.6.2 RDB 3.2 BX Adjustment

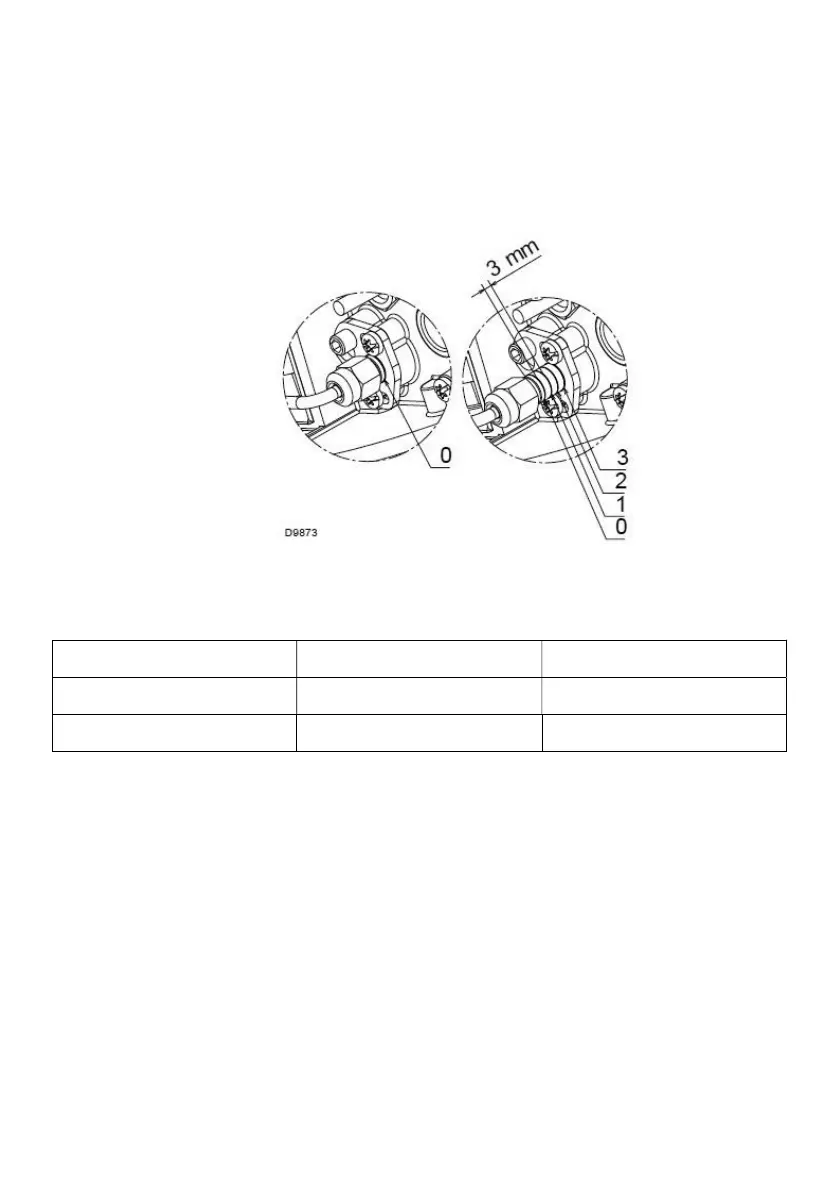

The RDB 3.2 BX has a slightly different adjustment mechanism than the RDB 2.2 BX.
Adjustments on the basis of the required output can be made by rotating the adjustment screw.
Distance between the indentations = 3mm. Each complete rotation of the screw = 1mm. The
setting for the mid-range output is shown in the table below.
The setting for the mid-range output is shown in the table below.
Model X (mm) D(mm)
FULLY CLOSED 10.0 10.0
RDB 3.2 BX 33/44 19.0 19.0
