Page 20

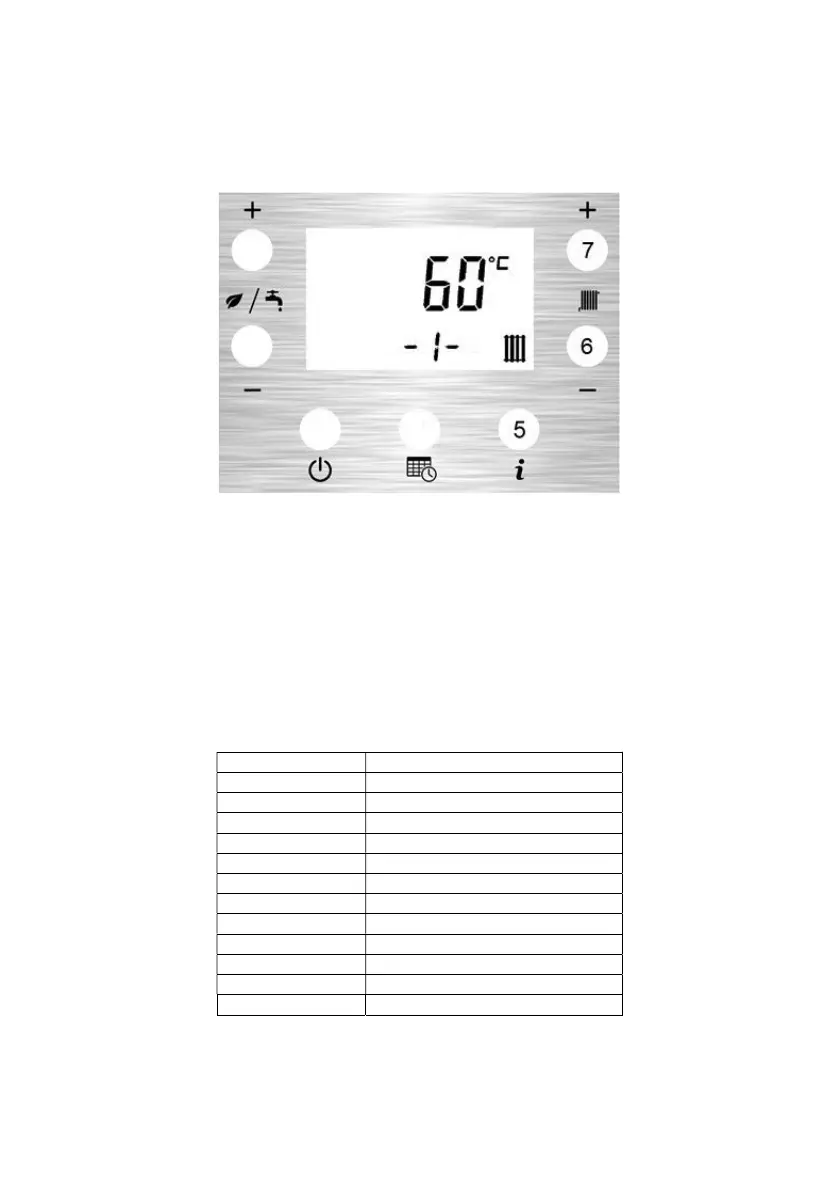

1.16 Information Menu
The Information Menu is used to display selected appliance parameters in real time, it can be
used during the commissioning stage, or to assist fault diagnosis.
The Information Menu is displayed from the Home Screen by pressing the Information button
(5).
The auxiliary digits then indicate the displayed variable number, and the main digits display the
value of the variable.
If a value is unavailable ‘- -‘ will be displayed on the main digits.
The variables can be scrolled through using the CH+ button (7) and CH- button (6).
To return to the Home Screen, press the Information button (5) again, or if no button is pressed
for 60 seconds, the Home Screen is displayed automatically.
Variable number Description
1 CH Flow Temperature (°C)
2 CH Return Temperature (°C)
3 DHW Flow Temperature (°C)
4 Heat Store Temperature (°C)
5 System water pressure (bar)
6 DHW Flow rate (l/minute)
7 Circulating pump speed (%)
8 External Temperature (°C)
9 DHW Setpoint (°C)
10 CH Setpoint (°C) (see note)
11 Control PCB Firmware version
12 MMI PCB Firmware version
Note: If the External Temperature sensor is used, the displayed value will be the Weather
Compensated CH setpoint.
