Page 15

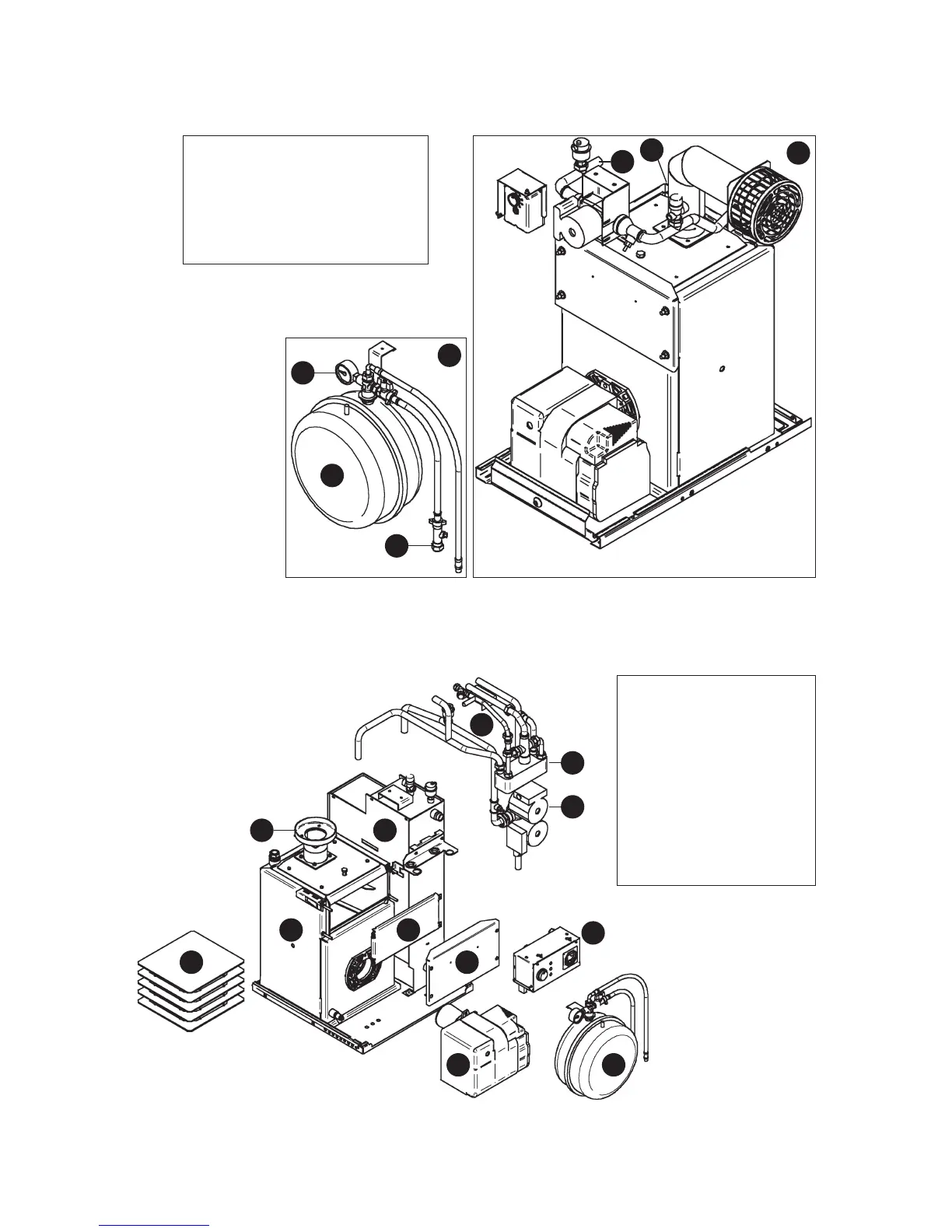

1.5.16 K-Series Kabin Pak – System (KS70 & KS90) – Key Components
1. Pumped (KP) Boiler Assembly
2. System Kit (SK1)
3. Pressure Gauge
4. Expansion Vessel
5. Filling Loop
6. Heating Flow Connection
7. Heating Return Connection
1.5.17 K-Series Kabin Pak – Combi (KC70 & KC90) – Key Components
1. Heat Exchanger
2. Heat Store
3. Pipework Assembly
4. Plate Heat Exchanger
5. Twin Head Pump
6. Service Door
7. Service Door Cover
8. Control Panel
9. Expansion Vessel
10. Riello RDB 2.2 Burner
11. Heat Exchanger Baffles
12. Flue Ring
3
5
4
2
1
6
7
1
2
3
4
5
6
7
8
910
11
12
