Page 16

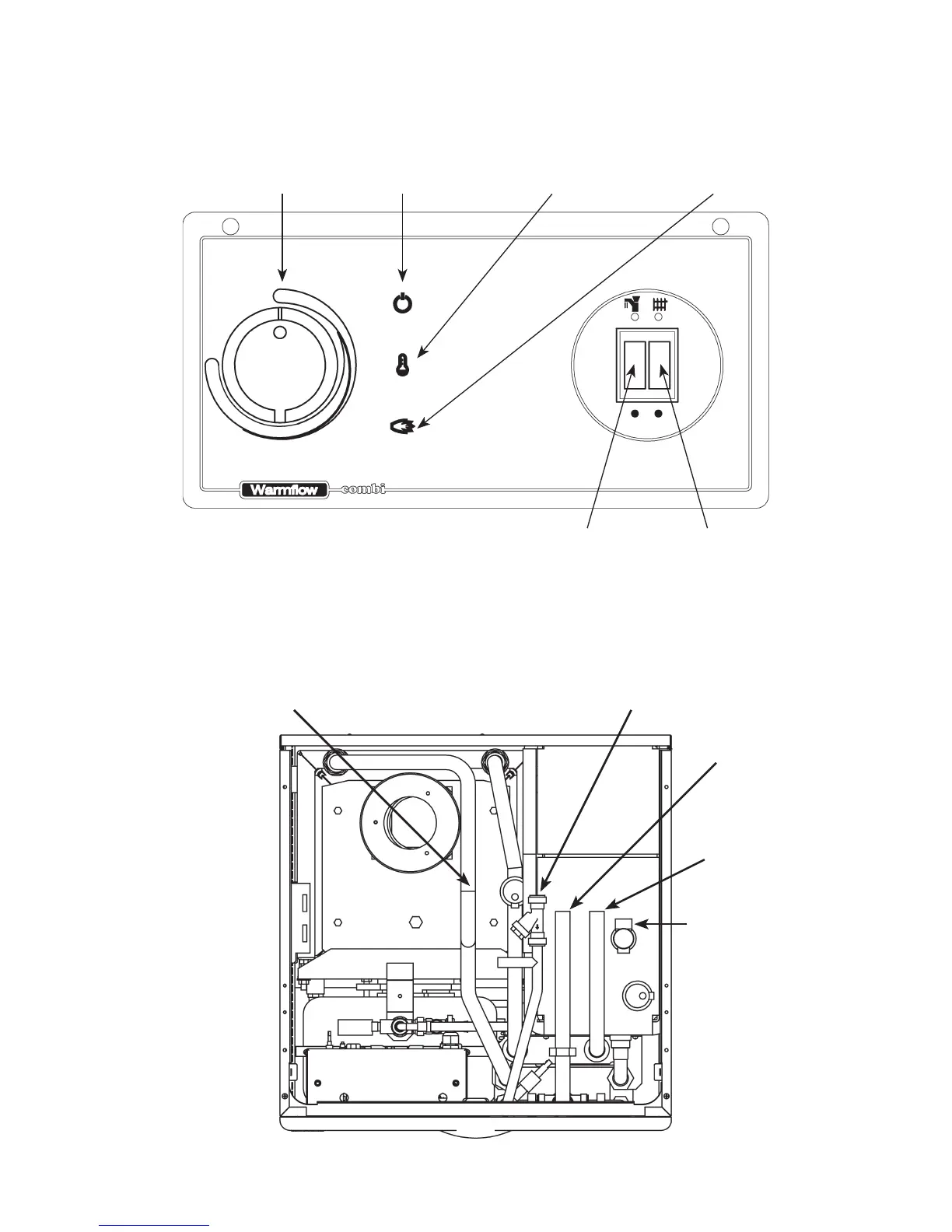

1.5.18 Combi Control Panel Layout
Control
Thermostat
Mains On
Lamp (Green)
High Limit Tripped
Lamp (Yellow)
Burner Lockout
Lamp (Red)
HW On/Off
Switch
CH On/Off
Switch
High Limit Thermostat Reset
(Underneath)
1.5.19 Combi Pipe Layout (UC & KC Models)
Central Heating
Return (22mm Copper)
Cold Water
Mains (15mm)
Domestic Hot
Water (22mm)
Central Heating
Flow (22mm)
Pressure Relief
Discharge (15mm)
