Warmup 6iE mini - Wiring for Loads Over 16 Amps

5

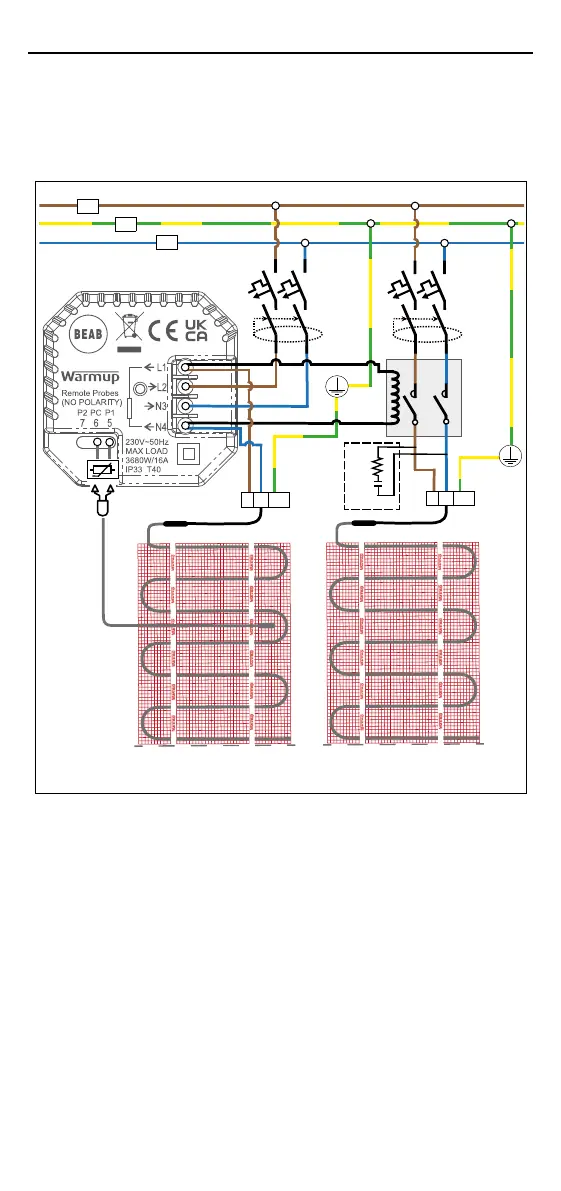

Step 2 - Wiring Connections - Loads over 16 amps
Warmup thermostats are rated for a maximum of 16 amps (3680 W). A
contactor must be used to switch loads exceeding 16 amps. Please see wiring
diagram below.
30 mA
≤16A
30 mA
≤16A
R
C
Snubber
L N PE
L N PE
PE
L
N
