Warn 106413 - Parts List; Torque Specifications

©2019 Warn Industries, Inc. WARN® and the WARN logo are trademarks of Warn Industries Inc. 3 106532A1
Please use the recommended torque specications when assembling this product unless otherwise specied in the instructions.
FASTENER SIZE FASTENER TORQUE FASTENER SIZE FASTENER TORQUE
lb-ft (N.m) lb-ft (N.m)
1/4" 8 (11) M4 (2) 3
5/16" 17 (23) M5 (4.5) 6
3/8" 30 (40) M6 (7.5) 10
7/16” 48 (66) M8 (18) 25
1/2" 74 (100) M10 (37) 50
9/16” 106 (144)
5/8" 148 (200)
3/4” 269 (364)

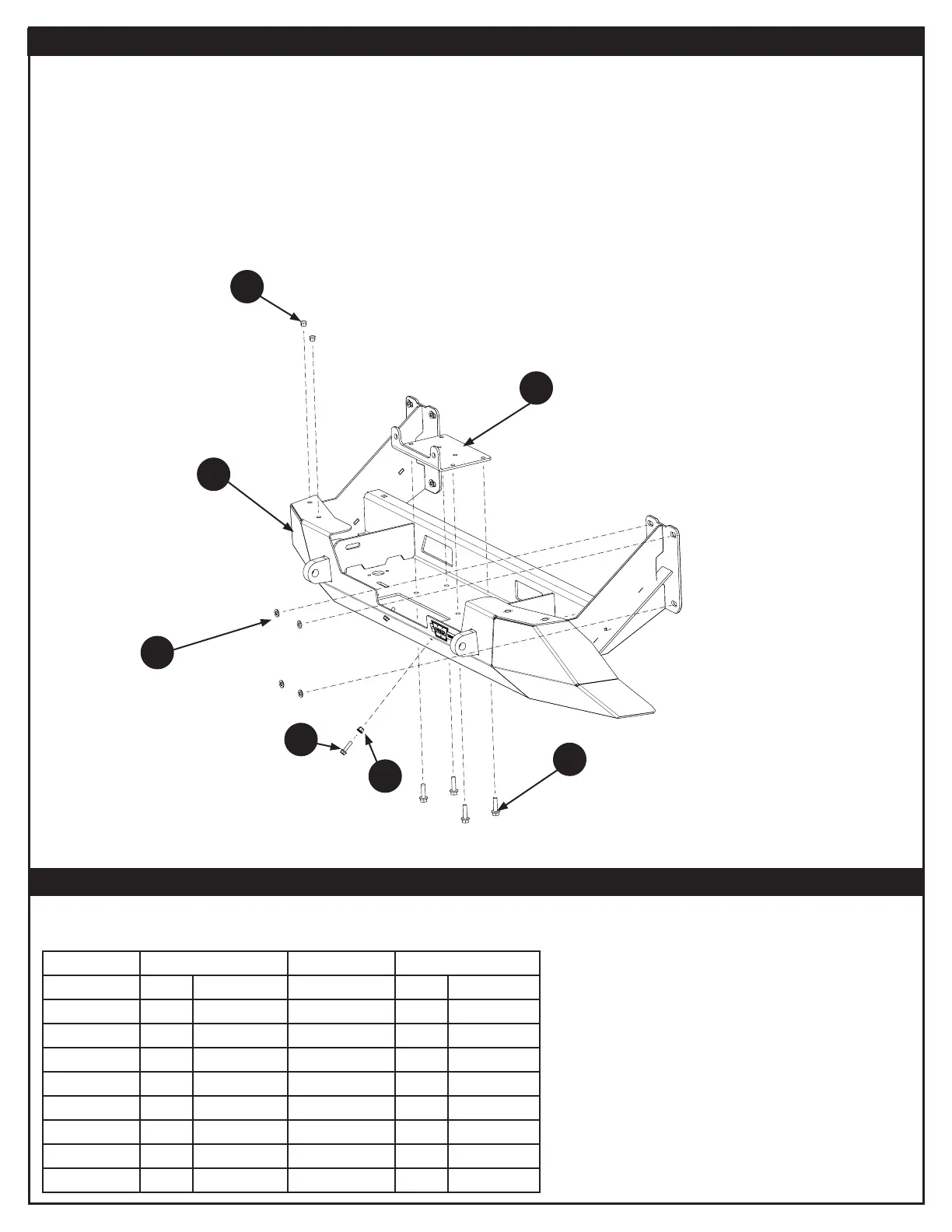

PARTS LIST
TORQUE SPECIFICATIONS
Item PN Description Qty.
A1 106414 SEMI HIDDEN MOUNT 1
A2 28885 FAIRLEAD MOUNTING PLATE 1
Item PN Description Qty.
B1 82156 M8 FLAT WASHER 8
B2 64108 M61.0 X 25HEX HEADFLANGE BOLT 2
B3 83125 M6 X 1.0 FLANGED NUT 2
B4 100772 3/8_LOCKING BLACK PLASTIC PLUG 4
B5 64110 M81.25 X 30HEX HEAD FLANGE BOLT 4
A2
B3
A1
B1
B2
B4
B5
